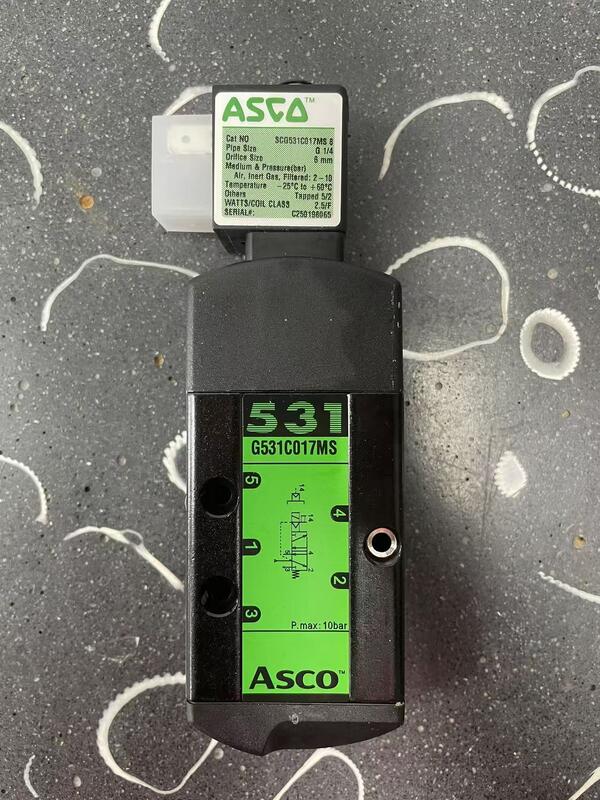

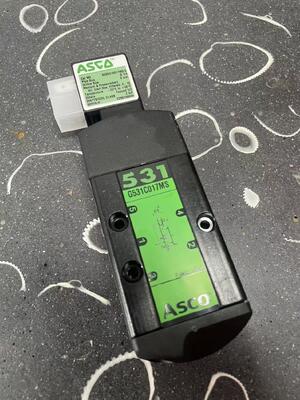

ASCO G531C017MS | 2-Position, 3-Way Steam Solenoid Valve
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage: | 12V, 24V, 110V, 220V AC/DC | Mounting: | Inline Or Manifold |
|---|---|---|---|
| Operation: | Direct Acting Or Pilot Operated | Temperaturerange: | -10°C To 80°C |
| Type: | Solenoid Valve | Portsize: | 1/8 Inch To 2 Inches |
| Productname: | ASCO Valves | Pressurerange: | 0 To 300 Psi |
| Connectiontype: | Threaded, Flanged, Or Socket Weld | ||
| Highlight: | ASCO 3-way steam solenoid valve,2-position steam solenoid valve,ASCO G531C017MS solenoid valve |
||
ASCO G531C017MS | 2-Position, 3-Way Steam Solenoid Valve
Product Overview
The ASCO G531C017MS is a 2-position, 3-way solenoid valve engineered for controlling saturated and superheated steam in industrial applications. This direct-acting, normally closed valve is part of the rugged G500 series, featuring a brass body, stainless steel internals, and PTFE seals for maximum durability and performance in high-temperature steam service.
Key Features
-
Steam Service Design: Specifically engineered for reliable operation with saturated and superheated steam.
-
3-Way Function (Normally Closed): Universal function; pressure is applied to the normally closed (NC) port at rest. Energizing the coil shifts flow to the normally open (NO) port.
-
Rugged Construction: Brass body with stainless steel plunger/spring and PTFE (Teflon®) seals for corrosion and high-temperature resistance.
-
Direct-Acting Operation: Requires no minimum pressure differential (0 psi min.).
-
Serviceable In-line: Designed for maintenance without removing the valve body from the line.
-
Compact & Efficient: Space-saving design suitable for steam tracing, humidification, and other process controls.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
G531C017MS |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Position, 3-Way |
|
Function |
Universal (Pressure applied to Normally Closed port) |
|
Operation |
Direct-Acting, Normally Closed |
|
Orifice Size |
1/4" (6.4 mm) |
|
Pipe Connection |
3/8" NPT |
|
Body Material |
Brass |
|
Core Tube & Plunger |
Stainless Steel |
|
Seal Material |
PTFE (Teflon®) |
|
Media |
Saturated and Superheated Steam |
|
Maximum Pressure (Steam) |
150 psi (10.3 bar) |
|
Maximum Fluid Temperature |
365°F (185°C) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure |
Molded, Watertight |
|
Flow Coefficient (Cv) |
Approximately 0.45 |
|
Response Time |
Fast (typical for direct-acting design) |
Performance & Construction
-
Flow Path: The 3-way configuration is designed for applications requiring the selection or diversion of a steam supply, such as applying pressure to or exhausting it from a single-acting actuator or chamber.
-
High-Temperature Design: Materials are selected specifically for steam service durability.
-
Reliability: Built for the demanding environment of industrial steam control.
Applications
-
Steam Tracing: Controlling steam supply to process lines for temperature maintenance.
-
Humidification: On/Off control for steam injection in humidification systems.
-
Process Control: Regulating steam to small tanks, vessels, or other equipment.
-
Sterilization: Steam control in sanitization processes.
Installation & Maintenance Notes
-
Media Specific: Designed exclusively for steam service. Verify compatibility before use with any other media.
-
Filtration: Installation of an upstream strainer is strongly recommended.
-
Safety: Ensure the system is depressurized and cooled before servicing.
-
Sizing: Confirm the valve's Cv (flow capacity) meets the specific requirements of your application.
