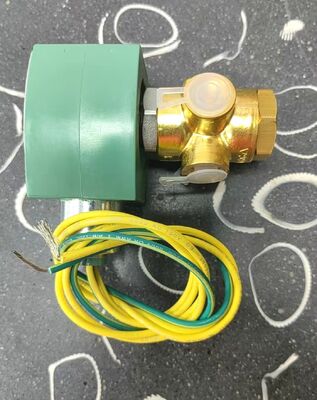

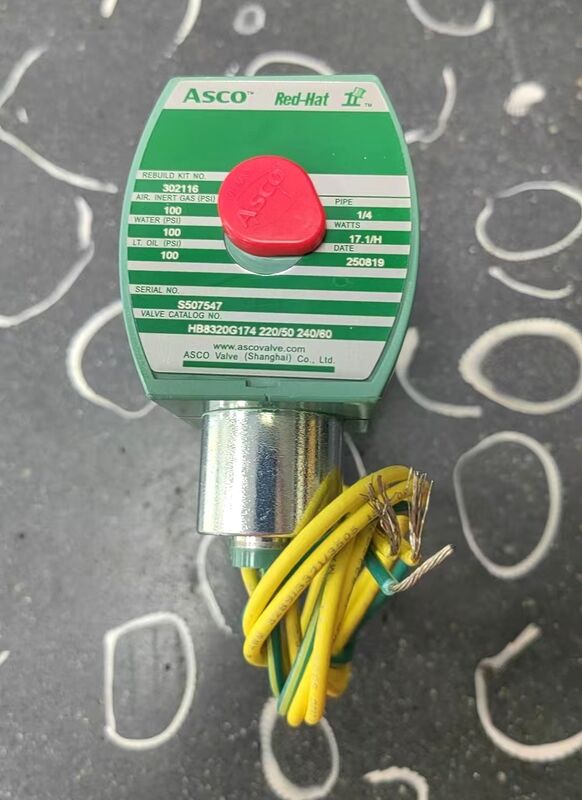

ASCO HB320G174 | General Purpose 2-Way Solenoid Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Highlight: | ASCO 2-way solenoid valve,general purpose solenoid valve,ASCO HB320G174 solenoid valve |
||
|---|---|---|---|
ASCO HB320G174 | General Purpose 2-Way Solenoid Valve
Product Overview
The ASCO HB320G174 is a compact, 2-way direct-acting solenoid valve designed for general service applications. This normally closed valve provides reliable on/off control of air, water, light oil, and inert gases. Featuring a brass body, NPT connections, and a molded coil with a protective enclosure, it is built for durability and easy maintenance in industrial environments.
Key Features
-
2-Way, Normally Closed: Provides reliable shut-off when de-energized.
-
Direct-Acting: Operates with a 0 psi minimum pressure differential.
-
Multi-Purpose: Suitable for air, water, light oil, and inert gases.
-
Compact & Durable: Brass body with Buna-N/Nitrile (NBR) seals.
-
Protected Coil: Features a molded coil with a watertight, explosion-proof enclosure (NEMA 4, 4X, 7, 9).
-
Manual Override: Standard manual operator for testing and setup.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
HB320G174 |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Way, Direct-Acting, Normally Closed |
|
Orifice Size |
1/8" (3.2 mm) |
|
Pipe Connection |
1/4" NPT |
|
Body Material |
Brass |
|
Seal Material |
Buna-N / Nitrile (NBR) |
|
Media |
Air, Water, Light Oil, Inert Gas |
|
Maximum Pressure |
150 psi (10.3 bar) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Fluid Temperature Range |
32°F to 180°F (0°C to 82°C) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure Rating |
NEMA 4, 4X, 7, 9 |
|
Manual Override |
Standard |
|
Flow Coefficient (Cv) |
Approximately 0.17 |
Performance & Construction
-
Flow Characteristics: Designed for reliable on/off service in general industrial applications.
-
Mounting: Can be installed in any orientation.
-
Service Life: Engineered for long-term, reliable operation with compatible media.
Applications
-
Industrial Automation: Control of air, water, or light oil in automated machinery.
-
Process Control: On/Off service for general process lines.
-
Equipment Control: Acting as a compact shut-off valve for various equipment.
Installation & Maintenance Notes
-
Install in the correct flow direction (indicated on the valve body).
-
An upstream strainer is recommended for unclean media.
-
System must be depressurized before installation or maintenance.
-
Regular inspection of seals is recommended for optimal performance.
