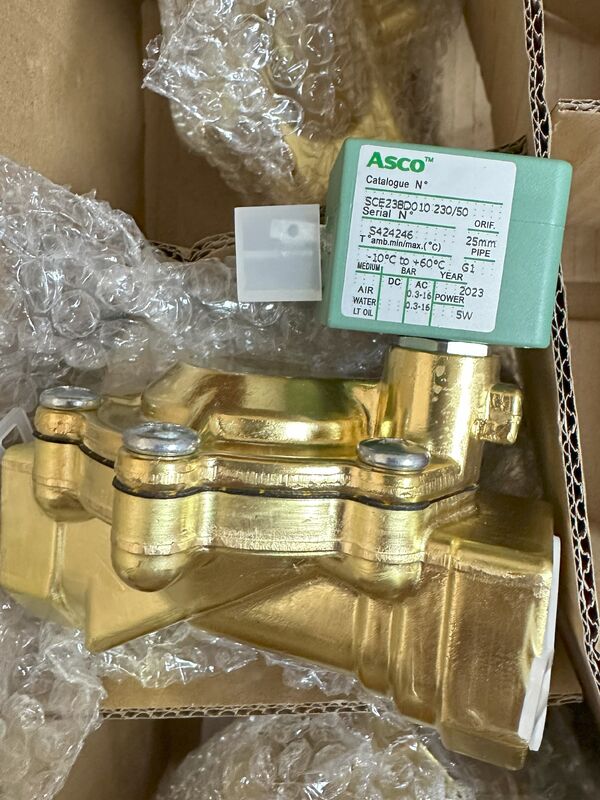

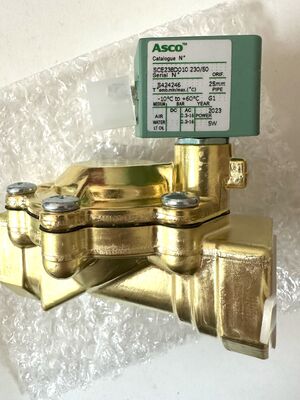

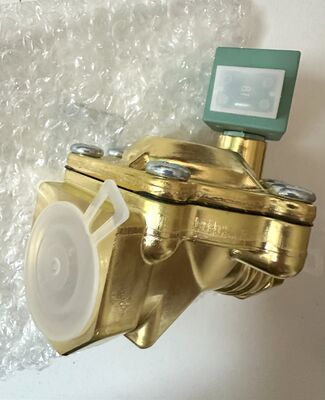

ASCO SCE238D010 | 2-Position, 3-Way Solenoid Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Highlight: | ASCO 2-position solenoid valve,3-way solenoid valve with warranty,ASCO SCE238D010 industrial solenoid valve |
||
|---|---|---|---|
ASCO SCE238D010 | 2-Position, 3-Way Solenoid Valve
Product Overview
The ASCO SCE238D010 is a compact, 2-position, 3-way solenoid valve designed for general service applications. This direct-acting valve is typically configured for a 3-way function, such as pressure applied to the normally closed (NC) port, making it suitable for selecting or diverting flow of air, water, light oil, or inert gases. Its compact, serviceable design is ideal for automation and process control systems.
Key Features
-
2-Position, 3-Way Function: Typically a universal 3-way configuration for flow selection or actuator control (e.g., single-acting cylinder).
-
Compact & Efficient: Space-saving design for easy panel or system integration.
-
Direct-Acting Operation: Requires no minimum pressure differential to operate (0 psi min.).
-
General Service Media: Suitable for air, water, light oil, and inert gases.
-
Durable Construction: Brass body with Buna-N/Nitrile (NBR) seals.
-
Protected Coil: Molded coil with a watertight, explosion-proof enclosure (NEMA 4, 4X, 7, 9).
-
Serviceable In-line: Designed for maintenance without removing the body from the line.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
SCE238D010 |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Position, 3-Way |
|
Typical Function |
Universal (Pressure applied to Normally Closed port) |
|
Operation |
Direct-Acting |
|
Orifice Size |
1/8" (3.2 mm) |
|
Pipe Connection |
1/4" NPT |
|
Body Material |
Brass |
|
Seal Material |
Buna-N / Nitrile (NBR) |
|
Media |
Air, Water, Light Oil, Inert Gas |
|
Maximum Pressure |
150 psi (10.3 bar) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Fluid Temperature Range |
32°F to 180°F (0°C to 82°C) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure Rating |
NEMA 4, 4X, 7, 9 |
|
Flow Coefficient (Cv) |
Approximately 0.15 |
|
Response Time |
Fast (typical for direct-acting design) |
Performance & Construction
-
Flow Path: 3-way configuration allows for diverting flow between two outlet ports or applying/exhausting pressure from a single port.
-
Mounting: Can be installed in any orientation.
-
Reliability: Compact, serviceable design for long-term use in general-purpose applications.
Applications
-
Automation Control: Operating single-acting pneumatic actuators or cylinders.
-
Process Control: Selecting or diverting flow in small process lines.
-
Equipment Control: Used in various machines for air or fluid pilot signal control.
Installation & Maintenance Notes
-
Identify the correct 3-way function (normally open, normally closed, or universal) for your specific application.
-
Install in the correct flow orientation per the schematic on the valve body.
-
An upstream strainer is recommended for unclean media.
-
System must be depressurized before installation or maintenance.
