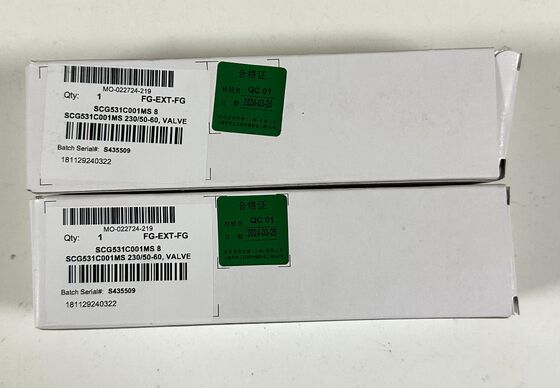

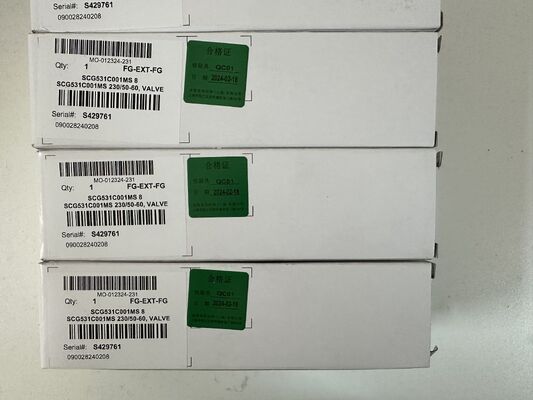

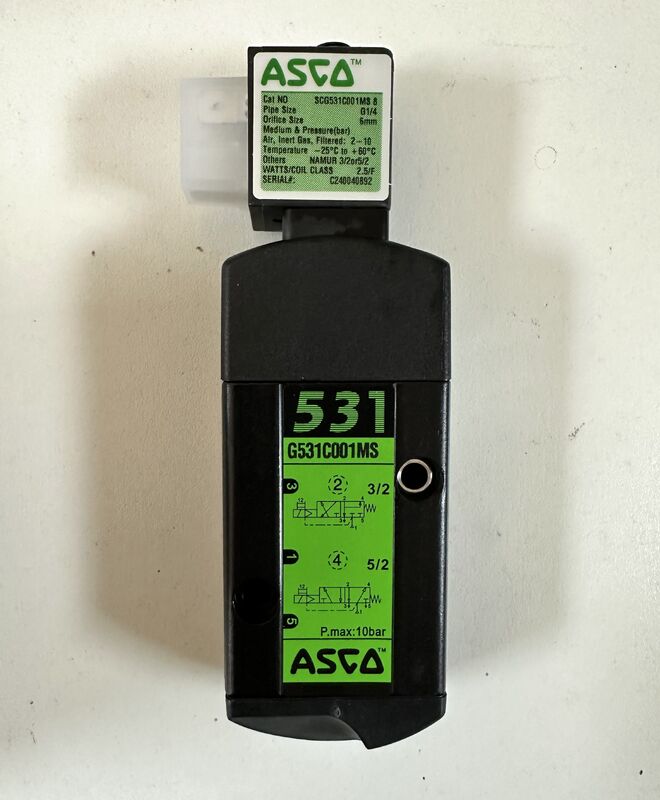

ASCO SCG531C001MS | 3-Way Steam Service Solenoid Valve
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Highlight: | ASCO 3-way solenoid valve,steam service solenoid valve,ASCO SCG531C001MS valve |
||
|---|---|---|---|
ASCO SCG531C001MS | 3-Way Steam Service Solenoid Valve
Product Overview
The ASCO SCG531C001MS is a compact, 3-way solenoid valve engineered specifically for the control of saturated and superheated steam. This 2-position, direct-acting valve is designed for applications such as steam tracing, humidification, and other industrial processes requiring reliable and durable steam shut-off or diversion.
Key Features
-
Steam Service Design: Engineered specifically for saturated and superheated steam.
-
3-Way Function: Versatile flow path configuration for pressure application and exhaust, typically used with single-acting actuators.
-
Compact & Durable: Features a brass body, stainless steel internals, and PTFE seals for maximum service life in high-temperature, corrosive environments.
-
Direct-Acting: Operates from 0 psi minimum pressure differential.
-
Serviceable Design: In-line serviceable for easier maintenance.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
SCG531C001MS |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Position, 3-Way Solenoid Valve |
|
Function |
Universal (Pressure to Normally Closed port) |
|
Operation |
Direct-Acting, Normally Closed |
|
Orifice Size |
1/8" |
|
Pipe Connection |
1/4" NPT |
|
Body Material |
Brass |
|
Internal Materials |
Stainless Steel Plunger & Spring |
|
Seal Material |
PTFE (Teflon®) |
|
Media |
Saturated and Superheated Steam |
|
Maximum Pressure (Steam) |
150 psi (10.3 bar) |
|
Maximum Fluid Temperature |
365°F (185°C) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure |
Watertight, Molded Coil |
|
Flow Coefficient (Cv) |
Approximately 0.17 |
|
Weight |
Compact, lightweight design |
Performance & Construction
-
Flow Path: 3-way configuration allows the valve to apply pressure to one port while simultaneously exhausting another, ideal for controlling single-acting pneumatic actuators or pilot-operated devices in steam systems.
-
High-Temperature Construction: All wetted materials are selected for compatibility and durability in continuous steam service.
-
Mounting: Can be installed in any orientation.
Applications
-
Steam Tracing: Controlling the supply of steam to process lines for freeze protection or temperature maintenance.
-
Humidification: On/Off control for steam injection in industrial or commercial humidification systems.
-
Small Process Control: Regulating steam supply to tanks, kettles, or other equipment.
Installation & Maintenance Notes
-
This valve is specifically designed for steam service. Verify media compatibility for any other application.
-
Installation of an upstream strainer is strongly recommended to protect the valve from pipeline debris.
-
Ensure the system is depressurized and cooled before performing any maintenance.
-
Confirm the valve’s Cv (flow capacity) is adequate for your specific system requirements.
