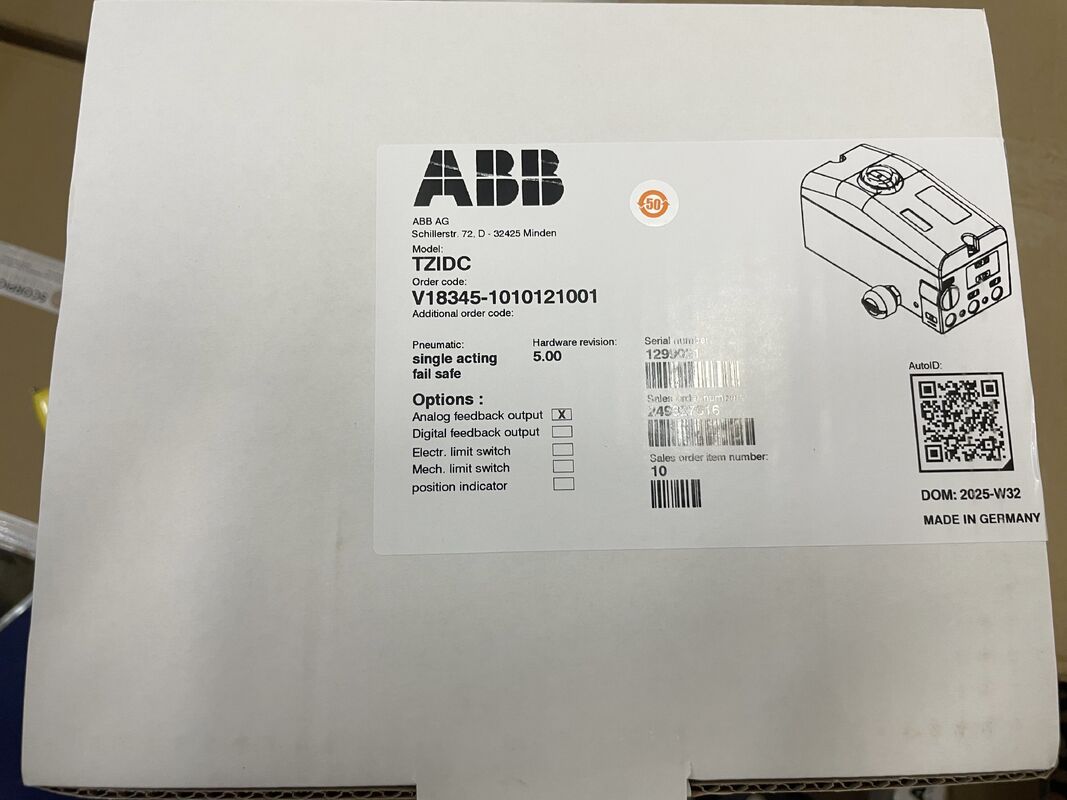

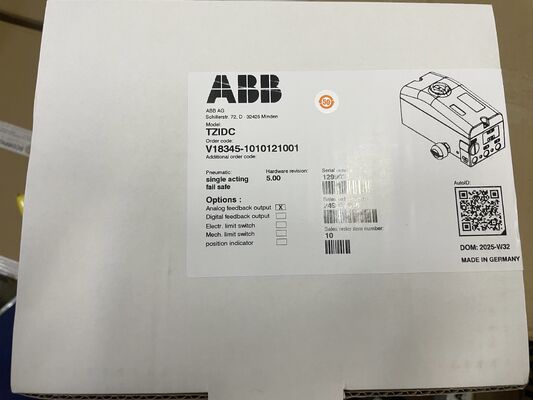

ABB V18345-1010121001 Electro-Pneumatic Positioner

The ABB V18345-1010121001 is a TZIDC series electro-pneumatic positioner designed for precise control of pneumatic actuators in industrial process applications. It converts a 4-20mA electrical control signal into pneumatic output to accurately position valves, dampers, and other final control elements. This model features single-acting operation with fail-safe functionality and HART communication capability.

Key Features

• Intelligent Control:​ Microprocessor-based with auto-tuning capabilities for optimal performance.

• HART Communication:​ 4-20mA two-wire input with HART protocol for configuration and diagnostics.

• Fail-Safe Operation:​ Single-acting with fail-safe reset function for safety-critical applications.

• Robust Construction:​ IP65-rated aluminum housing suitable for industrial environments.

• Versatile Mounting:​ Compatible with both linear and rotary actuators.

Technical Specifications

Model Number Decoding (V18345-1010121001)

• V18345:​ Series identifier for TZIDC positioners

• 1:​ Case/mounting type (1 = aluminum housing, IP65)

• 0:​ Input/communication (0 = 4-20mA with HART)

• 1:​ Explosion protection (1 = without explosion protection)

• 0:​ Output/safe position (0 = single-acting, fail-safe)

• 1:​ Connections (1 = cable thread 1/2-14 NPT, air pipe 1/4-18 NPT)

• 2:​ Option modules (2 = plug-in analog position feedback)

• 1:​ Design (1 = standard)

• 0:​ Additional options (0 = standard)

• 0:​ Reserved

• 1:​ Reserved

Typical Applications

• Control valves in chemical and petrochemical plants

• Process control in power generation facilities

• Water and wastewater treatment systems

• HVAC and building automation

• Food and beverage processing

Important Selection & Installation Notes

1. Actuator Compatibility:​ Verify that the positioner is compatible with your specific actuator type (linear or rotary) and mounting interface.

2. Supply Air Quality:​ Requires clean, dry compressed air (ISO 8573-1:2010 [7:4:4] or better) to ensure reliable operation.

3. Configuration Required:​ The positioner requires configuration (characteristic curve, fail-safe mode, etc.) using a HART communicator or ABB configuration software before commissioning.

4. Wiring:​ Use shielded twisted-pair cable for the 4-20mA signal to minimize electrical noise interference.

5. Calibration:​ Periodic calibration is recommended for critical applications to maintain positioning accuracy.

Note: Specifications are based on the TZIDC series data. The exact configuration for this specific model number may include additional options. For complete technical data, dimensional drawings, and installation guidelines, consult the official ABB TZIDC Positioner Technical Manual​ or contact ABB technical support.
