Product Overview

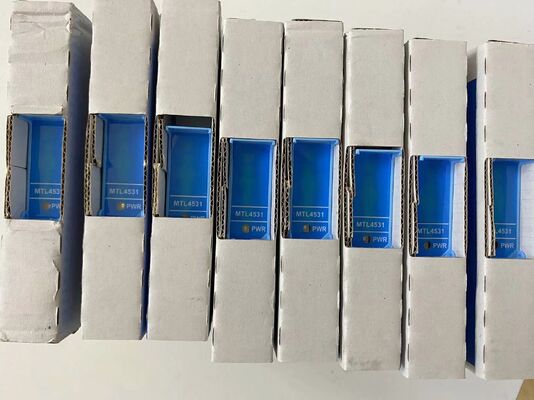

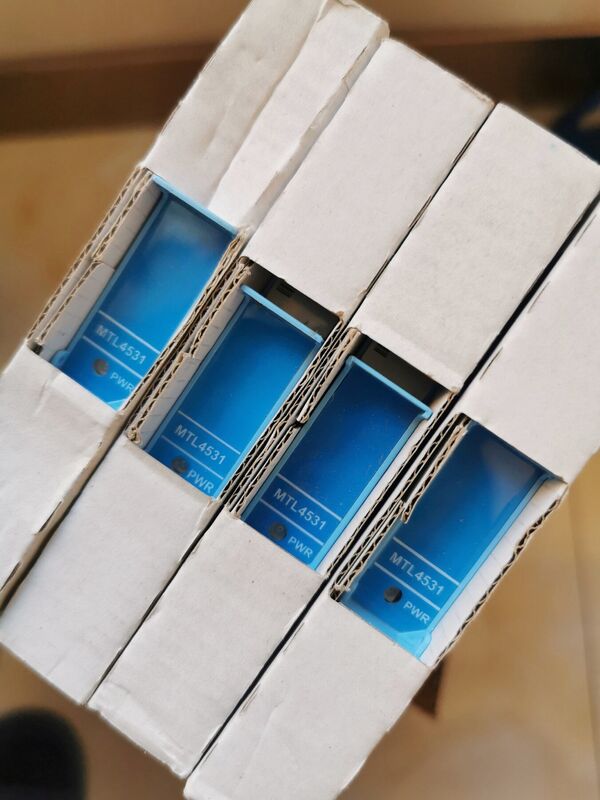

The MTL 4531​ is a fieldbus power and communications module​ from MTL's 4500 series, designed to provide power and communications​ for FOUNDATION Fieldbus H1 and PROFIBUS PA networks​ in hazardous areas. This device combines a fieldbus power conditioner​ with communications capabilities, provides intrinsic safety protection, and carries ATEX and IECEx approvals​ for Zone 1 hazardous locations. The 4531 ensures stable power delivery and communication integrity for fieldbus networks in explosive atmospheres.

Technical Specifications

Note: Specifications are based on MTL 4500 series documentation. The 4531 is a key component in fieldbus networks, providing both power and communications. Always verify with the latest product datasheet.

Key Features

• Integrated Power and Communications:​ Combines power supply and signal conditioning in one unit

• High Current Capacity:​ 350 mA output for powering multiple fieldbus devices

• Built-in Termination:​ Switchable 100 Ω termination resistor

• Intrinsic Safety:​ Approved for Zone 1 hazardous locations

• Short Circuit Protection:​ Automatic protection with auto-recovery

• LED Status Indicators:​ Clear indication of power, communications, and fault status

• Compact Design:​ DIN rail mounting for easy installation

• Regulated Output:​ Stable voltage output for consistent fieldbus performance

• Global Approvals:​ Certified for international hazardous area applications

• Easy Installation:​ Simple wiring with screw terminals

Electrical Characteristics

LED Status Indicators

Entity Parameters (for Hazardous Area Design)

Note: The 4531 is an associated apparatus. Connected fieldbus devices in the hazardous area must be certified as intrinsically safe.

Network Design Considerations

Typical Fieldbus Network Configuration

[Control System/PLC]
       |
[Fieldbus Interface Card]
       |
       |-------------------------|
[MTL 4531 Power Module]   [Other 4531 units]
       |                         |
[Fieldbus Segment 1]     [Fieldbus Segment 2]
       |                         |
[Field Devices]           [Field Devices]

Typical Applications

• Process Plant Fieldbus Networks:​ Power and communications for control loops

• Tank Farm Instrumentation:​ Power for level, temperature, and pressure transmitters

• Pipeline SCADA Systems:​ Power for remote measurement points

• Offshore Platforms:​ Fieldbus networks in hazardous marine environments

• Power Generation Plants:​ Fieldbus networks for turbine and boiler control

• Water Treatment Facilities:​ Distributed control networks

• Any FOUNDATION Fieldbus H1 or PROFIBUS PA network​ requiring IS power and communications

Important Technical Notes

1. Power Supply Requirements:​ Requires a 24V DC power supply with sufficient capacity. Recommended: 24V DC, 1.5A minimum for reliable operation.

2. Termination:​ Each fieldbus segment requires termination at both ends. Use the built-in termination switch appropriately (typically ON at the power supply end).

3. Current Capacity:​ The 350 mA capacity is shared by all devices on the segment. Calculate total device current consumption including communication and device power.

4. Short Circuit Protection:​ The module provides automatic short circuit protection. After fault clearance, the output automatically recovers.

5. Thermal Considerations:​ Ensure adequate ventilation, especially when operating near maximum capacity or in high ambient temperatures.

6. Grounding:​ Follow manufacturer's grounding instructions. Proper grounding is critical for noise immunity and safety.

7. Network Design:​ Consider voltage drop calculations for long segments. The 4531 maintains output voltage, but cable resistance causes voltage drop at field devices.

8. LED Diagnostics:​ Use the LED indicators for troubleshooting. Red FAULT LED indicates a short circuit or overload condition.

9. Certification Compliance:​ Verify that the 4531's certifications match the hazardous area classification of your application.

10. Installation Location:​ Typically installed in the safe area or Zone 2, as close as possible to the hazardous area boundary.

Note: This data sheet provides general specifications for the MTL 4531 fieldbus power and communications module. For complete installation guidelines, wiring diagrams, network design rules, and safety instructions, consult the official MTL 4500 Series Technical Manual. Always verify that the product configuration and certifications match your specific application requirements.
