SICK WL280-2P2431 Light Grid | Fork Type, 2-Beam, IP65, 24V DC, PNP Output

SICK WL280-2P2431 Light Grid | Fork Type, 2-Beam, IP65, 24V DC, PNP Output
SICK WL280-2P2431 Light Grid | Fork Type, 2-Beam, IP65, 24V DC, PNP Output
video play

Large Image :  SICK WL280-2P2431 Light Grid | Fork Type, 2-Beam, IP65, 24V DC, PNP Output Get Best Price

Product Details:
Place of Origin: CN
Brand Name: SICK
Certification: ATEX
Model Number: WL280-2P2431
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 12-30 V DC (Two-wire) Ambient Temperature: -40°C To 80°C (-40°F To 176°F)
Electrical Rating: General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification) Certifications: Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)
Highlight:

SICK fork type light grid

,

2-beam light grid IP65

,

24V DC PNP light grid

SICK WL280-2P2431 Light Grid | Fork Type, 2-Beam, IP65, 24V DC, PNP Output

SICK WL280-2P2431 light grid specifications. Fork type photoelectric sensor, 2 beams, 24V DC, PNP output, IP65, for object detection and counting.

Product Overview

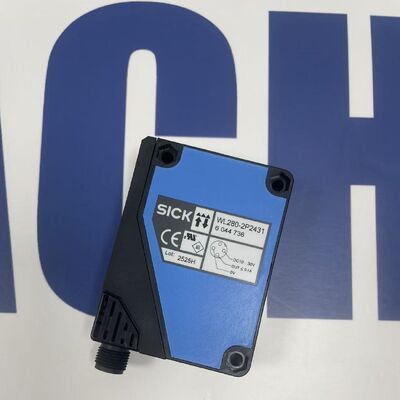

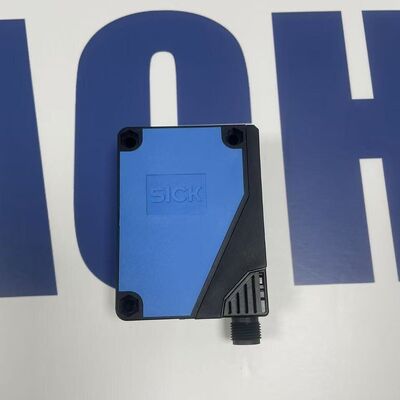

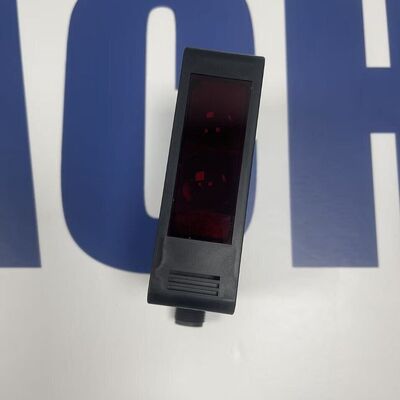

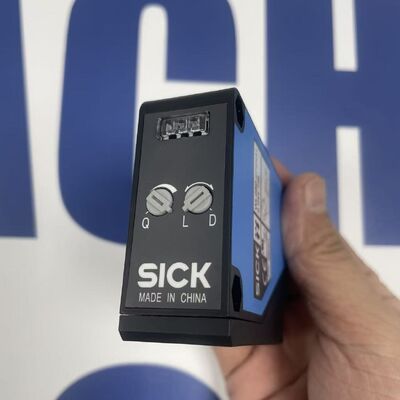

The SICK WL280-2P2431 is a fork-type, 2-beam photoelectric light grid sensor designed for object detection, counting, and positioning applications. It consists of a transmitter and receiver in a single U-shaped housing, creating a precise detection window. The sensor provides two independent PNP switching outputs, one for each beam, allowing for advanced object profiling or two-point monitoring. It is rated IP65 for use in industrial environments.

Technical Specifications

Parameter

Specification

Manufacturer​

SICK AG

Series​

WL280 (Fork Light Grids)

Model​

WL280-2P2431

Product Type​

Fork Light Grid, 2 Beams

Beam Configuration​

2 independent, parallel beams

Aperture Width​

20 mm (standard)

Light Source​

Infrared LED, 880 nm

Output Signal​

2 × PNP, 3-wire (1 output per beam)

Contact Type​

Normally Open (NO) or Normally Closed (NC), configurable

Electrical Connection​

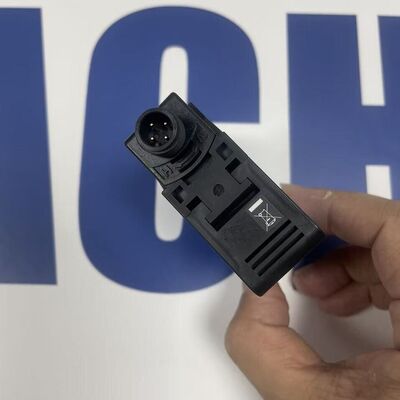

M12, 8-pin connector

Operating Voltage​

10 to 30V DC

Output Current​

≤ 100 mA per channel

Switching Frequency​

≤ 1000 Hz per channel

Response Time​

≤ 1 ms

Voltage Drop​

≤ 2.5 V (at rated current)

No-Load Supply Current​

≤ 50 mA

Short Circuit Protection​

Yes

Reverse Polarity Protection​

Yes

LED Indicators​

Per beam (receive/transmit status)

Housing Material​

Plastic (PBT)

Operating Temperature​

0 to 55°C (32 to 131°F)

Enclosure Rating​

IP65

Certifications​

CE, cULus

Key Features

  • 2 Independent Beams:​ Allows for object height differentiation, counting, or dual-point verification

  • PNP Outputs:​ Two sourcing outputs, one for each beam

  • Configurable Logic:​ Each output can be set as NO or NC

  • High Switching Frequency:​ Up to 1 kHz per beam for fast-moving objects

  • IP65 Protection:​ Resistant to dust and water jets

  • M12 Connector:​ Standard industrial quick-disconnect

  • Easy Alignment:​ Integrated alignment aids for simple setup

  • Compact Design:​ Space-saving U-shaped profile

Applications

  • Object counting on conveyors

  • Small part detection and sorting

  • Height verification and profiling

  • Fill level control in vials or containers

  • Break-in detection for safety guarding (non-safety rated)

  • Packaging and assembly machine monitoring

Important Notes

  1. This is a standard photoelectric sensor, not a safety-rated light curtain. Do not use for personnel safety guarding.

  2. The two beams operate independently; objects can be detected by one or both beams.

  3. Output logic (NO/NC) and other parameters are configurable via DIP switches or an external teach-in wire (model dependent).

  4. An M12, 8-pin male connector cable must be purchased separately.

  5. Performance can be affected by ambient light; ensure installation away from strong direct light sources.
