FESTO DSNU-63-80-PPV-A-M16K5 Pneumatic Cylinder | 63mm Bore, 80mm Stroke, Double-Acting, ISO 6432, Cushioned, Magnetic

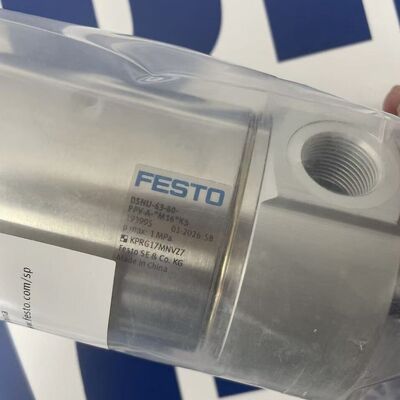

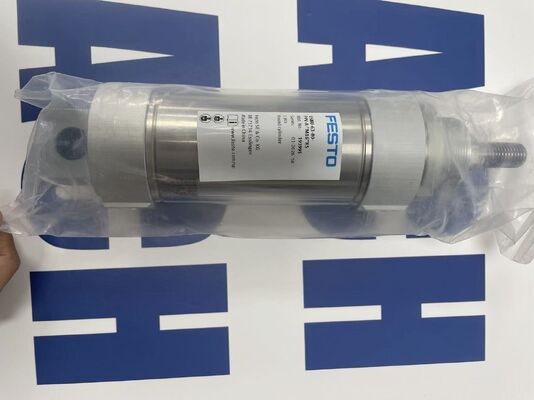

Large Image : FESTO DSNU-63-80-PPV-A-M16K5 Pneumatic Cylinder | 63mm Bore, 80mm Stroke, Double-Acting, ISO 6432, Cushioned, Magnetic Get Best Price

Product Details:

Place of Origin:	CN
Brand Name:	FESTO
Certification:	ATEX
Model Number:	DSNU-63-80-PPV-A-M16K5
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Festo pneumatic cylinder 63mm bore

double-acting pneumatic cylinder 80mm stroke

ISO 6432 magnetic cylinder cushioned

FESTO DSNU-63-80-PPV-A-M16K5 Pneumatic Cylinder | 63mm Bore, 80mm Stroke, Double-Acting, ISO 6432, Cushioned, Magnetic

FESTO DSNU-63-80-PPV-A-M16K5 cylinder specifications. Double-acting pneumatic cylinder, 63mm bore, 80mm stroke, ISO 6432, adjustable cushioning, magnetic piston.

Product Overview

The FESTO DSNU-63-80-PPV-A-M16K5 is a double-acting pneumatic cylinder conforming to ISO 6432 (DIN 24555) standards. It features a 63mm bore, an 80mm stroke, and adjustable pneumatic cushioning on both ends. The cylinder is equipped with a magnetic piston for non-contact position sensing using external reed or inductive sensors. The suffix indicates specific options for mounting, accessories, and piston rod configuration.

Technical Specifications

Parameter	Specification
Manufacturer	Festo AG & Co. KG
Series	DSNU
Model	DSNU-63-80-PPV-A-M16K5
Product Type	Double-Acting Pneumatic Cylinder
Standard	ISO 6432 (DIN 24555)
Bore Diameter	63 mm
Stroke Length	80 mm
Cushioning	PPV (Adjustable pneumatic cushioning, both ends)
Piston Magnet	Yes (for position sensing)
Piston Rod Thread	M16 x 1.5 (external)
Operating Pressure	1.5 to 10 bar
Operating Temperature	-20 to 80°C (-4 to 176°F)
Piston Rod Diameter	20 mm
Theoretical Force at 6 bar	Advance: 1870 N; Return: 1760 N
Cushioning Length	22 mm
Medium	Compressed air, lubricated or non-lubricated
Materials	Anodized aluminum barrel, chrome-plated steel piston rod
Mounting Accessory	Includes specific front flange (type defined by suffix)
Certifications	CE, cULus

Key Features

ISO 6432 Standard: Ensures interchangeability and wide accessory compatibility
Double-Acting Operation: Provides power in both extend and retract directions
Adjustable Cushioning (PPV): Allows smooth deceleration at end positions, reducing impact
Integrated Piston Magnet: Enables use with external proximity sensors for position feedback
Robust Construction: Anodized aluminum barrel and hard-chromed piston rod
Wide Pressure Range: Suitable for most industrial pneumatic applications
Pre-Mounted Accessory: Supplied with a specific front flange for easy mounting
M16 Piston Rod Thread: Standard thread for attaching accessories

Applications

Industrial automation and material handling
Packaging and assembly machinery
Process valve actuation
Clamping and positioning tasks
General mechanical engineering applications

Important Notes

Bore size and stroke length are fixed at 63mm and 80mm respectively.
Requires external proximity sensors (reed or inductive) for position detection via the magnetic piston.
PPV cushioning is adjustable via screws on both end caps.
The "-M16K5" suffix includes a specific front flange; verify the mounting type meets the application requirement.
The cylinder is suitable for use with lubricated or non-lubricated air; if non-lubricated, all system components must be compatible.
