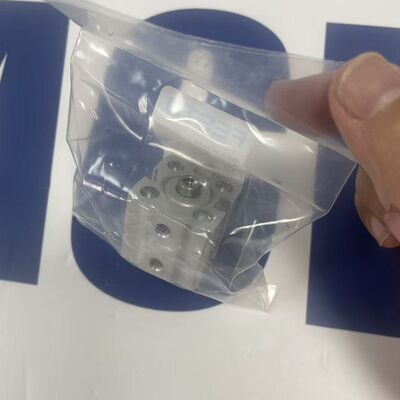

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder

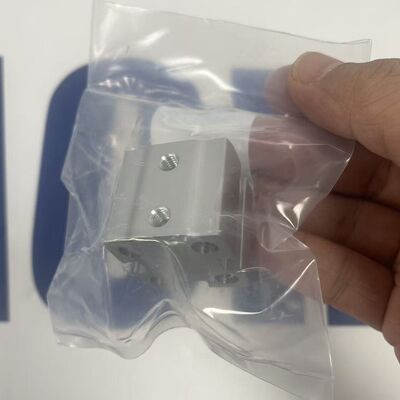

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder

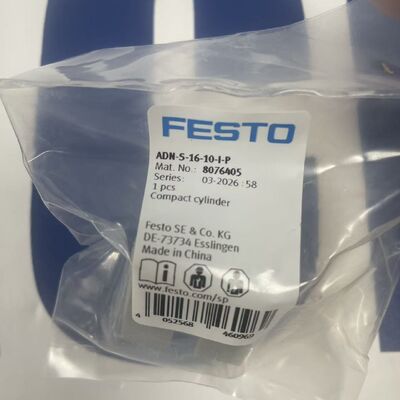

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
video play

Large Image :  Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder Get Best Price

Product Details:
Place of Origin: CN
Brand Name: FESTO
Certification: ATEX
Model Number: ADN-S-16-10-I-P
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Festo 16mm bore double-acting cylinder

,

10mm stroke pneumatic cylinder

,

Festo ADN-S cylinder with warranty

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder

Festo ADN-S-16-10-I-P compact pneumatic cylinder. 16mm bore, 10mm stroke, double-acting, with female thread (I) and elastic cushioning (P). Ideal for tight spaces.

Product Overview

The Festo ADN-S-16-10-I-P​ is a compact, double-acting pneumatic cylinder​ from the ADN-S series. Designed for applications with severe space constraints, it features a 16 mm piston diameter​ and a 10 mm stroke. Key characteristics include a female threaded piston rod (I)​ and elastic cushioning on both ends (P)​ for smooth deceleration. This cylinder is constructed from anodized aluminum alloy with a stainless-steel piston rod, making it suitable for general automation tasks requiring precise, short-stroke linear motion.

Technical Specifications (Mechanical & Functional)

Parameter

Specification

Manufacturer​

Festo

Series​

ADN-S (Compact Cylinder)

Article Number​

ADN-S-16-10-I-P​ (8076405)

Bore Size​

16 mm​

Stroke Length​

10 mm​

Piston Rod Thread​

Female Thread (I)​

Cushioning​

Elastic Cushioning Rings (P)​

Operating Mode​

Double-Acting

Mounting Type​

Through-hole / Female Thread

Pneumatic Connection​

M5 (Internal)

Technical Specifications (Performance & Environmental)

Parameter

Specification

Operating Pressure Range​

0.6 ... 10 bar​ (0.06 ... 1.0 MPa)

Theoretical Force (at 6 bar)​

~121 N (Advance), ~90 N (Return)

Operating Medium​

Compressed Air (per ISO 8573-1)

Operating Temperature​

0 °C ... +60 °C​

Housing Material​

Anodized Aluminum Alloy

Piston Rod Material​

Stainless Steel

Seals Material​

NBR (Standard)

Weight​

Approx. 32.5 g

Key Features

  • Space-Saving Design:​ The ADN-S series offers a shorter housing length and reduced width compared to standard cylinders, ideal for compact machinery.

  • Elastic Cushioning:​ Non-adjustable polymer cushioning rings at both ends reduce impact noise and wear without requiring manual adjustment.

  • Female Thread (I):​ The piston rod end features a female thread, providing flexibility for attaching custom tooling or accessories.

Applications

  • Small parts handling and positioning in assembly automation

  • Clamping, ejecting, and lifting mechanisms in confined spaces

  • Packaging machinery and pick-and-place systems
