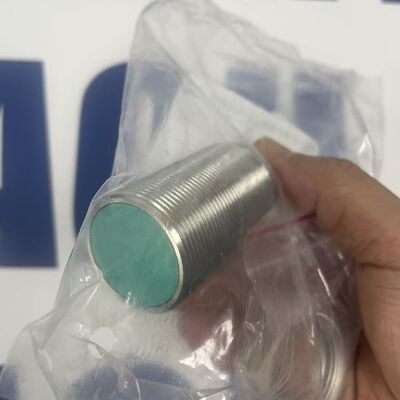

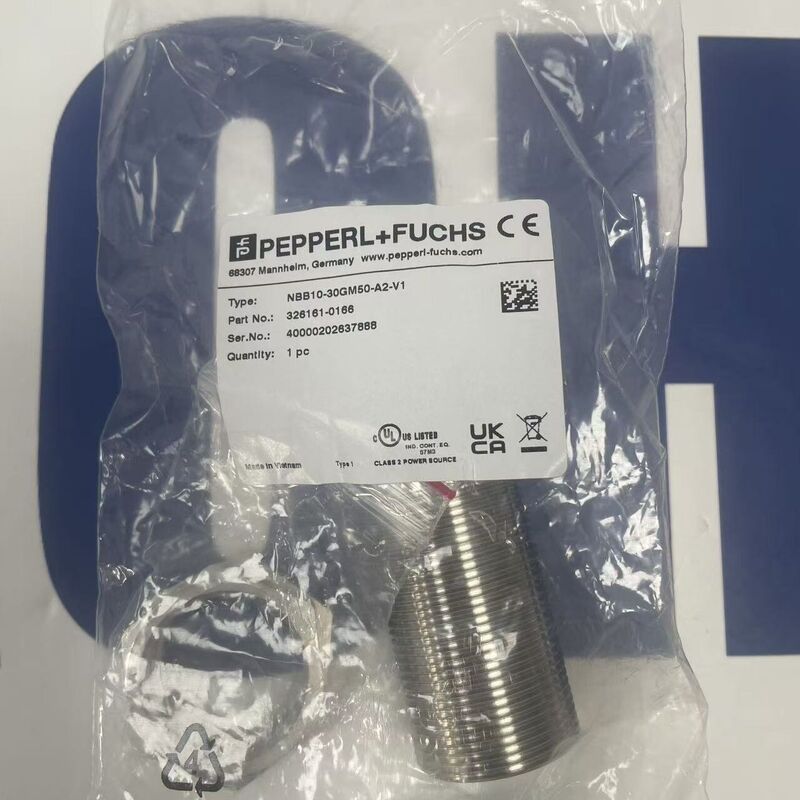

Pepperl+Fuchs NBB10-30GM50-A2-V1 | M30 PNP Sensor, 10mm, IP68

Large Image : Pepperl+Fuchs NBB10-30GM50-A2-V1 | M30 PNP Sensor, 10mm, IP68 Get Best Price

Product Details:

Place of Origin:	VN
Brand Name:	Pepperl+Fuchs
Certification:	ATEX
Model Number:	NBB10-30GM50-A2-V1
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Pepperl+Fuchs M30 PNP sensor 10mm

M30 PNP sensor IP68 protection

Pepperl+Fuchs safety barrier sensor

Pepperl+Fuchs NBB10-30GM50-A2-V1 | M30 PNP Sensor, 10mm, IP68

Pepperl+Fuchs NBB10-30GM50-A2-V1 inductive proximity sensor. M30 threaded barrel, PNP NO+NC output, 10mm range, 6-36V DC, IP68, -40°C to +85°C.

Product Overview

The Pepperl+Fuchs NBB10-30GM50-A2-V1 is a heavy-duty M30 inductive proximity sensor designed for harsh industrial environments. It features a brass barrel with white bronze coating for superior corrosion resistance and offers a 10 mm sensing range for detecting ferrous metals. This 4-wire sensor provides complementary PNP outputs (NO+NC) and operates on a wide voltage range, making it suitable for high-speed counting and position detection applications in automation systems.

Technical Specifications (Electrical & Functional)

Parameter	Specification
Sensor Type	Inductive Proximity (Shielded / Flush Mount)
Output Type	PNP, 4-wire (NO + NC Complementary)
Switching Function	Normally Open + Normally Closed
Rated Operating Distance	10 mm (Mild Steel)
Assured Operating Distance	0 ... 8.1 mm
Operating Voltage	6 ... 36 V DC
Switching Frequency	0 ... 1100 Hz
Switching Current	Max. 200 mA
Voltage Drop	≤ 1 V
Hysteresis	Typ. 5%
Protection	Reverse Polarity, Short-circuit (Pulsing)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Housing	Brass with White Bronze Coating
Thread Size	M30 x 1.5
Sensing Face	PBT (Green)
Connection	4-pin M12 Quick Disconnect
Degree of Protection	IP68 / IP69K
Operating Temperature	-40 °C ... +85 °C
Housing Length	67 mm
Weight	Approx. 156 g
Mounting	Flush (2 Self-locking Nuts Included)

Key Features

Dual Output Flexibility: The complementary PNP output (NO+NC) allows for versatile circuit design, enabling both "presence" and "absence" logic from a single sensor.
Extreme Environment Ready: With an IP68/IP69K rating and a wide operating temperature range (-40°C to +85°C), this sensor is built for demanding applications like mobile machinery and washdown areas.
High-Speed Operation: A switching frequency of up to 1100 Hz supports fast-moving object detection and high-resolution counting tasks.

Applications

Position detection of metal parts on conveyor systems
High-speed counting and presence sensing in automotive assembly
Hydraulic cylinder position feedback in heavy machinery
