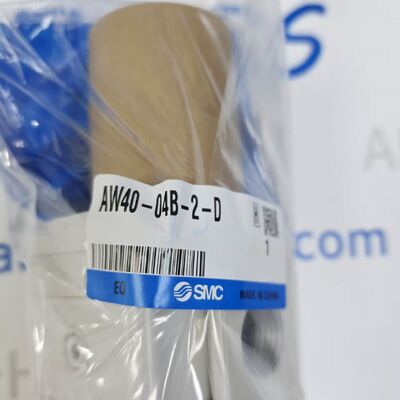

SMC AW40-04B-2-D | AW40 Filter Regulator 1/2" Rc, Metal Bowl, Bracket, No Drain/P.Gauge

Large Image : SMC AW40-04B-2-D | AW40 Filter Regulator 1/2" Rc, Metal Bowl, Bracket, No Drain/P.Gauge Get Best Price

Product Details:

Place of Origin:	CN
Brand Name:	SMC
Certification:	ATEX
Model Number:	AW40-04B-2-D
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

SMC AW40 filter regulator 1/2 Rc

AW40 filter regulator metal bowl

SMC filter regulator with bracket

SMC AW40-04B-2-D | AW40 Filter Regulator 1/2" Rc, Metal Bowl, Bracket, No Drain/P.Gauge

SMC AW40-04B-2-D modular filter regulator — body size 40, 1/2" Rc port, metal bowl, with mounting bracket. No auto drain, no pressure gauge. 5 µm filtration, 0.05–0.85 MPa set range.

Product Overview

The SMC AW40-04B-2-D is a modular combination filter regulator (FRL) from the AW series, integrating particulate filtration and pressure regulation in a single compact unit. It features Body Size 40, Rc 1/2" (04) threaded ports, a metal bowl (Code 2), and is supplied with mounting bracket (B) but without pressure gauge, without automatic drain, and without pressure switch. The standard filter element provides 5 µm rating and the regulator is factory-set for 0.05–0.85 MPa (7–123 psi) output range. It is designed for panel or frame mounting in pneumatic main-air lines upstream of actuators or downstream of the main compressor receiver.

Technical Specifications (Pneumatic & Functional)

Parameter	Specification
Part Number	AW40-04B-2-D
Series	SMC AW — Modular Filter Regulator (No Reverse Flow Function)
Body Size	40 (Nominal Port 1/2")
Port Thread	Rc (PT) 1/2" — Taper female (G1/2 or NPT1/2 also available in other variants)
Filter Element	Sintered / Pleated — 5 µm Standard (replaceable cartridge AF40P-060S)
Regulator Type	Relief-type (Overflow), Hand Knob Adjustment
Set Pressure Range	0.05 – 0.85 MPa (7 – 123 psi / 0.5 – 8.5 bar)
Max. Inlet Pressure	1.0 MPa (10 bar / 145 psi)
Proof Pressure	1.5 MPa
Auto Drain	None (Manual drain plug / drain cock only — "-D" in code = no auto drain for this variant; some catalogs show -D as N.O. auto — confirm per region; this B-2-D config = manual drain)
Pressure Gauge Port	1/8" (plugged — no gauge fitted)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Bowl Type	Metal Bowl (Code 2 — Aluminum die-cast, no sight glass — for high-temp / washdown)
Bowl Guard	Not included (Polycarbonate bowl guard is std on "-C" option; metal bowl negates need)
Mounting Option	B — With Mounting Bracket (single L-bracket + hex bolt)
Flow Capacity (ΔP 0.1 MPa)	Approx. 3000 L/min (ANR) @ 0.7 MPa inlet, outlet 0.5 MPa
Condensate Capacity	Approx. 45 cm³
Operating Fluid	Compressed Air (Non-corrosive, non-flammable)
Ambient / Fluid Temp.	-5 … +60 °C (no freezing)
Material (Main Body)	Aluminum alloy — Anodized
Weight (Approx.)	~1.4 kg (with bracket, empty)

Key Features

Space-Saving Combo Design: One unit replaces separate filter + regulator — reduces piping, weight, and footprint on the air header.
Metal Bowl (Code 2): Suitable where polycarbonate bowls are prohibited (high temperature, aggressive cleaning agents, mechanical impact risk).
Bracket Included (Option B): Pre-assembled L-bracket allows direct panel or frame mounting — no extra hardware to source.
Modular Expandability: Can be coupled with SMC AW / AL / AM series units (lubricator, secondary filter, shut-off valve) using union connectors.
Easy Element Replacement: Filter cartridge unscrews with bowl — no tools required for routine maintenance.

Typical Applications

Main Air Line Conditioning: Installed at machine entry point to clean and regulate shop air before distribution to valves/cylinders.
Packaging / Assembly Machinery: Where consistent regulated pressure and particle-free air are critical to cycle repeatability.
Food / Pharma Auxiliary Lines (with metal bowl): Where PC bowls are excluded by plant hygiene/WIP policy — verify chemical compatibility of metal bowl coating.
Retrofit / Panel Build: Drop-in replacement for older SMC AR + AF combinations or other ISO-compliant FRL brands with same port spacing.

Code Breakdown: AW40 = Body Size 40 | -04 = Rc 1/2" port | -B = With mounting bracket | -2 = Metal bowl | -D = No auto drain / no gauge (manual drain plug). For polycarbonate bowl with guard use AW40-04BG-D; for auto drain add -D after gauge code (e.g. AW40-04BDG-D).
