Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot

Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot
Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot

Large Image :  Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot Get Best Price

Product Details:
Place of Origin: CN
Brand Name: FESTO
Certification: ATEX
Model Number: DSBC-100-160-PPSA-N3
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Festo ISO 15552 cylinder 100mm bore

,

Festo cylinder 160mm stroke self-adjusting cushion

,

Festo pneumatic cylinder N3 sensor slot

Festo DSBC-100-160-PPSA-N3 | ISO 15552 Cylinder 100mm Bore 160mm Stroke, Self-Adj. Cushion, N3 Sensor Slot

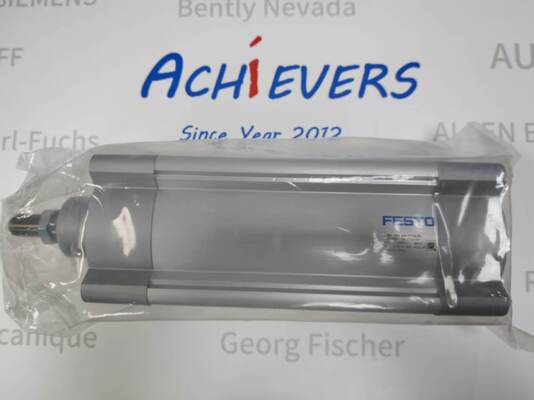

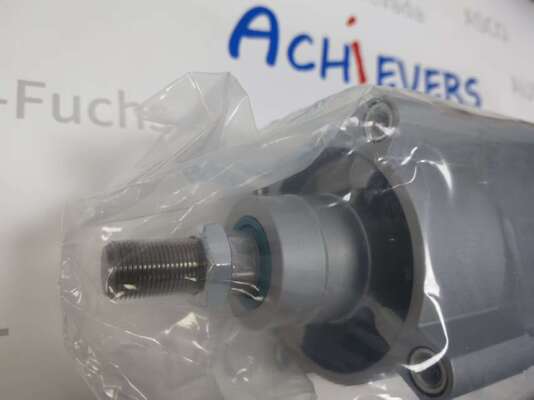

Festo DSBC-100-160-PPSA-N3 double-acting ISO 15552 cylinder. 100mm bore, 160mm stroke, self-adjusting pneumatic cushion (PPSA) both ends, magnetic piston with N3 proximity sensor slot, G1/2 ports.

Product Overview

The Festo DSBC-100-160-PPSA-N3​ is a double-acting ISO 15552 (ISO 6431 / VDMA 24562) standard pneumatic cylinder​ featuring a 100 mm bore, 160 mm stroke, and self-adjusting pneumatic end-position cushioning (PPSA)​ at both ends — eliminating manual cushion tuning. It is equipped with a magnetic piston​ and N3 sensor grooves​ (C-slot/T-slot compatible) on two profile sides for non-contact position detection using Festo SMT or SME series proximity sensors. Ports are G1/2"​ and the piston rod is M20×1.5 male thread. Suitable for general automation, material handling, and process machinery.

Technical Specifications (Dimensional & Mechanical)

Parameter
Specification
Order Number​
DSBC-100-160-PPSA-N3​ (Festo PN: 1384896)
Series​
Festo DSBC — ISO 15552 Standard Cylinder
Bore Diameter​
100 mm​
Stroke Length​
160 mm​
Piston Rod Thread​
Male M20 × 1.5​
Cushioning​
PPSA — Self-Adjusting Pneumatic Cushioning Both Ends​ (auto-adapts to load/speed)
Position Sensing​
Yes — Magnetic Piston + N3 Groove​ (C-slot / T-slot sensor compatible)
Ports (Pneumatic)​
G1/2"​ (BSPP Female)
Mounting​
Via through-holes in end caps or with ISO accessories (clevis, foot, trunnion)

Technical Specifications (Performance & Operating)

Parameter
Specification
Action​
Double-Acting​
Operating Pressure​
0.04 … 1.2 MPa (0.4 … 12 bar)​
Theoretical Force @ 6 bar​
Advance: 4712 N​ / Retract: 4418 N​
Operating Medium​
Filtered Compressed Air per ISO 8573-1:2010 [7:4:4], lubricated or non-lubricated
Ambient Temperature​
-20 … +80 °C​
Conforms to​
ISO 15552 / VDMA 24562 / NF E49-003​
Materials​
Anodized Aluminum Alloy Barrel / High-Alloy Steel Piston Rod / Die-Cast Aluminum End Caps (PU seals)
Weight (Approx.)​
~5.28 kg
Moving Mass (@ 0 mm stroke)​
1000 g (+ 39 g per 10 mm stroke)

Key Features

  • ISO 15552 Interchangeable:​ Drop-in replacement for SMC MB/CQ2M, Norgren RA/802x, IMI Lintra Plus with identical envelope and port locations.
  • Self-Adjusting Pneumatic Cushion (PPSA):​ Automatically adapts to varying loads and speeds — no hex-key adjustment needed, reduces setup time vs. PPV.
  • Magnetic Piston + N3 Groove:​ Integrated permanent magnet with dual sensor slots accepting Festo SMT-8 / SME-8M C-slot sensors for end-position feedback.
  • Standard Profile Barrel:​ Accepts ISO mounting accessories (front/rear flange FA/FB, clevis CA/CB, trunnion TC/TB, pivot UB/UF).

Typical Applications

  • General Automation:​ Push/pull, clamping, ejecting, and lifting on packaging, assembly, and converting lines.
  • Material Handling:​ Diverter arms, stopper cylinders, and actuator drives on powered conveyors.
  • Process Machinery:​ Linear actuation for guards, doors, and sample probes in light process skids.
  • Retrofit Projects:​ Direct replacement of legacy ISO 15552 cylinders from other major brands.
