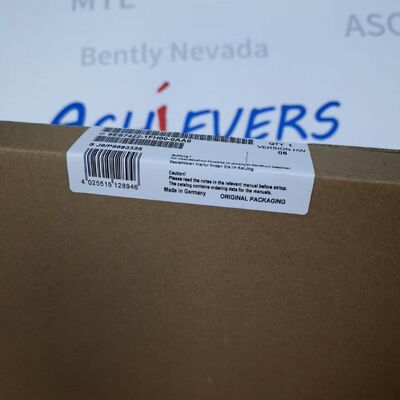

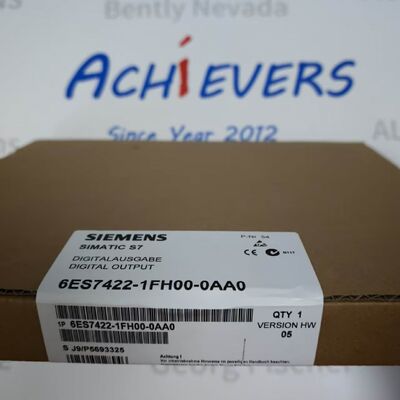

6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated

6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated
6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated 6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated

Large Image :  6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated Get Best Price

Product Details:
Place of Origin: DE
Certification: ATEX
Model Number: 6ES7422-1FH00-0AA0
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

S7-400 digital output module

,

16× AC 120/230V isolated output

,

SIEMENS PLC SM 422 module

6ES7422-1FH00-0AA0 | S7-400 SM 422 Digital Output 16× AC 120/230V 2A, Isolated
6ES7422-1FH00-0AA0 SIMATIC S7-400 SM 422 digital output module — 16 channels, 120/230 V AC, 2 A per channel, relay (triac) isolated groups, front connector 20-pin. For S7-400 central/expansion rack.

Product Overview

6ES7422-1FH00-0AA0​ is a SIMATIC S7-400 SM 422 digital output module​ providing 16 isolated AC output channels​ rated for 120/230 V AC at 2 A per channel (resistive load). It is designed to switch AC loads such as contactors, indicator lamps, solenoid valves (AC coils), and motor starters directly from the S7-400 PLC backplane. The 16 outputs are grouped into two isolated groups of 8 channels each (Group 0: Q0–Q7, Group 1: Q8–Q15), each with its own common (L/N) terminal. The module requires a 20-pin front connector (6ES7492-1AJ00-0AA0 or 6ES7492-1AL00-0AA0)​ for field wiring. Compatible with all S7-400 central racks (UR1/UR2) and expansion racks (ER1/ER2) via IM bus. Diagnostic LEDs indicate per-channel status and group power.

Technical Specifications (Electrical & Output)

Parameter
Specification
Order Number​
6ES7422-1FH00-0AA0​
Series​
SIMATIC S7-400 — Signal Module SM 422
Number of Outputs​
16 × Digital Output (DO), AC​
Output Type​
Triac (AC Semiconductor Switch) — Opto-isolated from backplane​
Rated Load Voltage​
AC 120 V / AC 230 V (Range 85–264 V AC, 47–63 Hz)​
Rated Current per Channel​
2 A (resistive load at 25 °C)​
Lamp Load (Max.)​
100 W per channel (at 230 V AC)
Inductive Load (AC-15)​
2 A @ 230 V AC (e.g. contactor coil ≤ 500 VA)
Switching Frequency (Max.)​
10 Hz (resistive), 0.5 Hz (inductive typical)
Leakage Current (OFF state)​
≤ 2 mA
Voltage Drop (ON state)​
≤ 1.5 V AC (RMS)
Isolation Groups​
2 Groups × 8 ch, isolated from each other and from CPU backplane (AC 500 V test)
Diagnostics​
Channel LEDs (green ON), Group Power LED, Module Error LED (red)

Technical Specifications (Mechanical & System)

Parameter
Specification
Front Connector Required​
20-pin (6ES7492-1AJ00-0AA0 — screw type, or -1AL00-0AA0 — spring type)​ — ordered separately
Backplane Bus​
S7-400 I/O bus (K-bus) — auto-addressed by rack/slot position
Slot Width​
1 slot in S7-400 rack (standard single-width module)
Dimensions (W × H × D)​
25 × 290 × 210 mm (single-width S7-400 SM)
Weight (Approx.)​
0.75 kg
Operating Temperature​
0 … +60 °C​
Storage Temperature​
-40 … +85 °C
Degree of Protection​
IP20 (installed in cabinet)
Certifications​
CE, UL 508, cULus, FM (Class I Div 2 Groups A/B/C/D T4), GL, DNV, ABS
Power Dissipation (Typ.)​
≈ 8 W (all outputs ON @ rated load)

Key Features

  • Direct AC Load Switching:​ Eliminates need for intermediate interposing relays — switches 120/230 V AC contactors, solenoids, and indicators straight from the PLC.
  • Group Isolation (2 × 8 ch):​ Two electrically isolated groups allow separate AC supply phases or independent commons — simplifies panel wiring and fault isolation.
  • High-Current per Point (2 A):​ Each channel drives typical control relays/contactors directly — reduces auxiliary relay count in large panels.
  • Per-Channel Status LEDs:​ Immediate visual confirmation of which output is active — speeds troubleshooting during commissioning.
  • S7-400 Native Integration:​ Auto-detected by HW Config — no parameterization required for basic operation; diagnostic interrupt optional.

Typical Applications

  • Motor Starter / Contactor Control:​ Direct switching of AC coil contactors (up to 2 A) for pumps, conveyors, and compressors.
  • Solenoid Valve (AC Coil) Actuation:​ Pilot valves with 110/230 V AC coils in process skids and packaging lines.
  • Plant Annunciator / Beacon Drive:​ High-current lamp/beacon loads in MCC-integrated annunciation panels.
  • Retrofit / Expansion of S7-400 Systems:​ Adding AC DO points to existing S7-400 central or distributed (via IM467/PROFIBUS DP slave rack) configuration.
For DC 24 V output S7-400 modules see 6ES7422-1BL00-0AA0 (32×DC 24V/0.5A) or 6ES7422-1HH00-0AA0 (16×DC 24V/2A relay). For higher AC current or mixed I/O refer to ET 200M distributed I/O with SM 322 AC modules. Front connector (20-pin screw: 6ES7492-1AJ00-0AA0) and potential bridging set are ordered separately.
