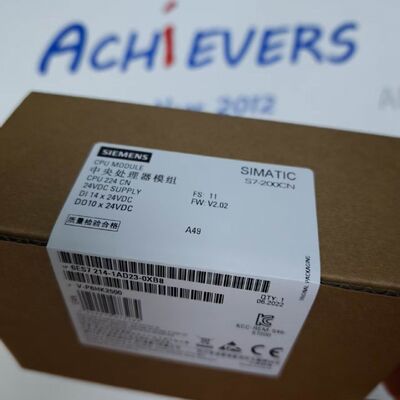

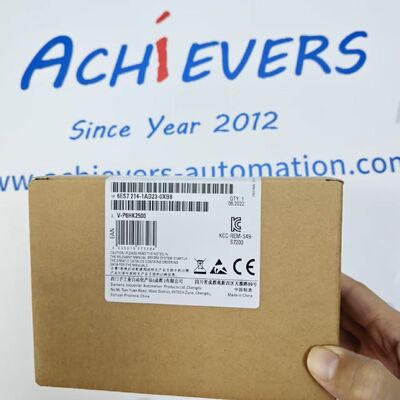

6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485

6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485
6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485 6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485 6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485

Large Image :  6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485 Get Best Price

Product Details:
Place of Origin: CN
Certification: ATEX
Model Number: 6ES7 214-1AD23-0XB8
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

S7-200 CPU 214-2 DP PLC

,

14 DI 10 DO Relay PLC

,

PROFIBUS-DP Slave PLC

6ES7214-1AD23-0XB8 | S7-200 CPU 214-2 DP, 14 DI / 10 DO Relay, 2 AI, PROFIBUS-DP Slave, RS-485
6ES7214-1AD23-0XB8 SIMATIC S7-200 CPU 214-2 DP — 14×24V DC inputs, 10× relay outputs, 2×12-bit AI, 2×RS-485 (PPI/MPI & PROFIBUS-DP Slave), 12 KB program memory, expandable.

Product Overview

6ES7214-1AD23-0XB8​ (commonly referenced as 6ES7 214-1AD23-0XB8) is a SIMATIC S7-200 CPU 214-2 DP​ — the top-tier S7-200 CPU with integrated PROFIBUS-DP Slave interface. It provides 14 digital inputs (24 V DC sink/source), 10 relay outputs (Form A, 2 A resistive), and 2 analog inputs (0–10 V DC / 0–20 mA, 12-bit resolution). The CPU has two communication ports: Port 0 = PPI/MPI/ASCII/Modbus RTU​ and Port 1 = PROFIBUS-DP Slave (up to 12 Mbps). Program memory is 12 KB, data memory 8 KB + 2 KB retentive, with support for up to 7 expansion modules (EM series). Programming is via STEP 7-Micro/WIN (V4.x). Suitable for stand-alone machines requiring DP connectivity to S7-300/400 masters or third-party DCS.

Technical Specifications (I/O & Memory)

Parameter
Specification
Order Number​
6ES7214-1AD23-0XB8​ (S7-200 CPU 214-2 DP)
Series​
SIMATIC S7-200 (legacy — mature product, successor: S7-1200)
Digital Inputs (DI)​
14 × 24 V DC (Sink/Source IEC 61131-2 Type 1)​ — 4 × HS (HSC capable, 30 kHz)
Digital Outputs (DO)​
10 × Relay (NO, Form A), 2 A resistive @ 250 V AC / 30 V DC​ — grouped 4+3+3
Analog Inputs (AI)​
2 × 12-bit (unipolar): 0–10 V DC or 0–20 mA​ (switch-select via jumper on early versions; SW-configurable on -0XB8)
High-Speed Counters (HSC)​
6 × (max. 2 × 30 kHz + 4 × 5 kHz)
Program Memory​
12 KB​ (Flash — user downloadable, non-volatile)
Data Memory​
8 KB V-memory + 2 KB Retentive (supercapacitor-backed, ≈50 h hold)​
Expandability​
Up to 7 × S7-200 EM (Expansion Modules)​ — max. 128 DI / 128 DO / 32 AI / 32 AO total system

Technical Specifications (Communication & Mechanical)

Parameter
Specification
Communication Ports​
Port 0:​ RS-485 (PPI / MPI / ASCII / Modbus RTU Master/Slave, up to 187.5 kbps)
Port 1:​ RS-485 (PROFIBUS-DP Slave, up to 12 Mbps; also supports PPI/ASCII)
PROFIBUS-DP Slave Address​
1–126 (DIP-switch or software-set)
Power Supply (PLC Logic)​
24 V DC​ (20.4–28.8 V DC), typ. 500 mA @ 24 V DC (no load, relays off)
Relay Output Power Requirement​
External AC/DC supply wired to COM terminals per group
Real-Time Clock (RTC)​
Built-in (battery-backed supercap — CR1025 coin cell for extended backup ≥ 200 days)
Operating Temp.​
0 … +55 °C​
Mounting​
35 mm DIN Rail (EN 50022) or panel mount
Dimensions (W × H × D)​
196 × 80 × 62 mm (approx.)
Weight (Approx.)​
0.6 kg
Certifications​
CE, cULus, FM Class I Div 2, C-Tick, KC

Key Features

  • PROFIBUS-DP Slave Port (Port 1):​ Direct integration into S7-300/400, WinAC, or third-party DCS/SCADA networks — no gateway required.
  • Mixed Relay Outputs:​ Ten relay contacts drive AC or DC loads directly — eliminates interposing relays for pilot devices, indicator lamps, small contactors.
  • Two Onboard Analog Inputs:​ Basic temp/pressure monitoring without adding an analog module — useful for simple process supervision.
  • Six High-Speed Counters + PTO/PWM:​ Supports encoder feedback and stepper/servo pulse train generation on transistor-output siblings (relay version limited to PTO on internal timer).
  • STEP 7-Micro/WIN Compatible:​ Familiar programming environment with ladder, FBD, STL; built-in wizard for HSC, PTO, PID, and DP configuration.

Typical Applications

  • Machine-Level DP Nodes:​ Small packaging, labeling, or converting machines reporting to a plant-level S7-300/400 master via PROFIBUS-DP.
  • Retrofit of Legacy S5 or Relay Panels:​ Replaces hard-wired logic while keeping existing AC coil contactors (via relay outputs).
  • OEM Stand-Alone Equipment:​ Where both local I/O and network connectivity to a higher-level controller are required in minimal footprint.
  • Process Skid Auxiliary Control:​ Local pump/mixer control with DP link to main DCS for setpoint/download of alarms.
Note: S7-200 is discontinued / phased out (Mature Product — recommends migration to S7-1200 / S7-1500 + CM 1243-5 for DP). Spare availability may be limited to remaining stock. For new designs consider CPU 1214C DC/DC/DC (6ES7214-1AG40-0XB0)​ with PROFIBUS CM 1243-5 slave module. The -0XB8 suffix denotes export version (Asia/World region); -0AA0 was the European code variant with same functionality.
If you need the transistor-output version (DC/DC/DC)​ with PROFIBUS-DP, see 6ES7214-1BD23-0XB8.
