Camozzi 454-011-22 Pneumatic Cylinder 22mm Bore 122mm Stroke ISO 15552
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Pressure: | 1.5 To 10 Bar (15 To 145 Psi) | Temperature Range: | -10°C To +80°C (14°F To 176°F) |
|---|---|---|---|
| Piston Speed: | ≤ 1 M/s (recommended) | Cushion Adjustment: | Via Screw At Both End Caps |
| Piston Rod Thread: | M6 (external) | ISO Standard: | ISO 15552 (formerly ISO 6432) |
| Highlight: | 122mm Pneumatic Cylinder,22mm Bore Pneumatic Cylinder,ISO 15552 camozzi 454 011 22 |
||

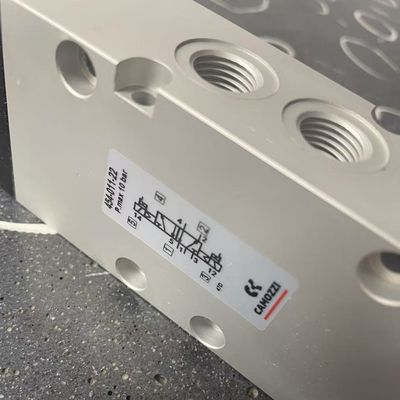

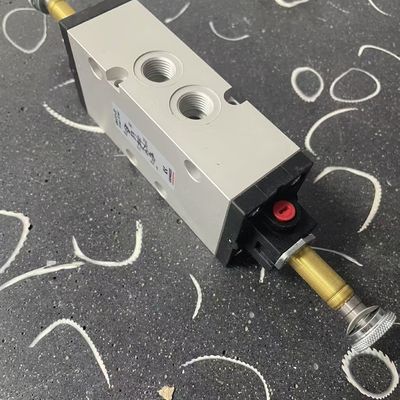

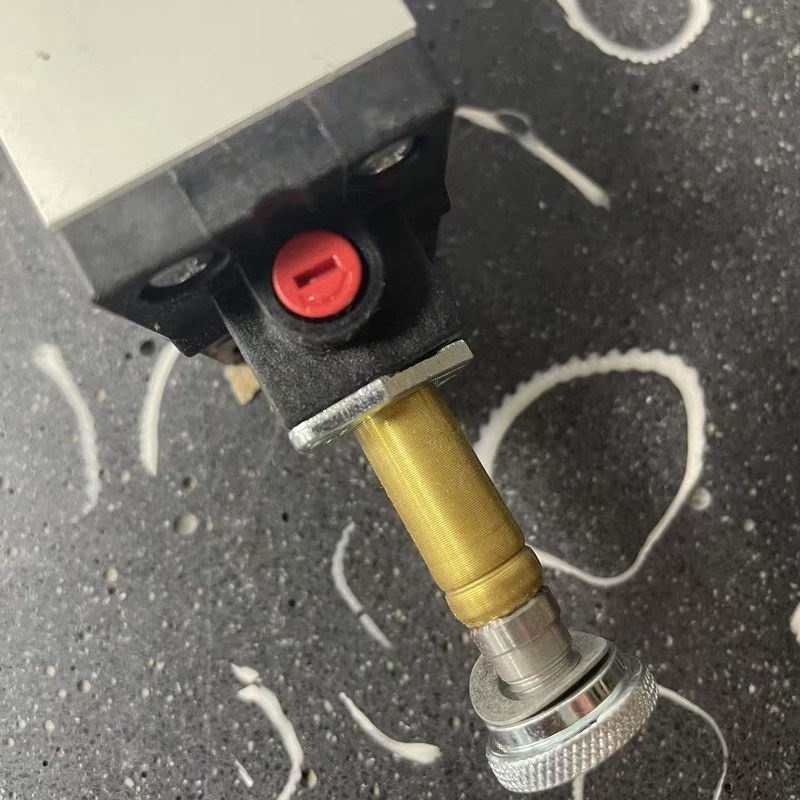

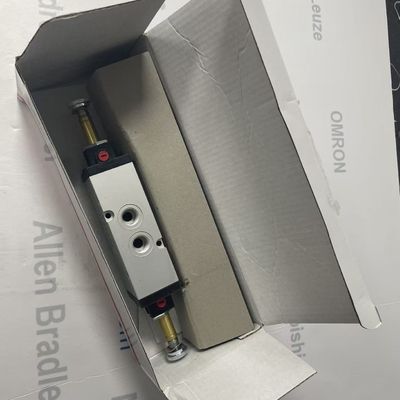

Camozzi 454-011-22 Electro-Pneumatic Distributor
Cushion Adjustment and Recommended Piston Speed for Smooth Operation
About Camozzi Group
CAMOZZI Group, founded in Italy in 1964, is a global leader in industrial automation, renowned as Italy's largest and a world top-10 pneumatic systems provider. The company designs and manufactures a comprehensive range of pneumatic components including actuators, valves, filters, fittings, and control systems integrated with electronics for smart automation solutions across industries like automotive, packaging, and food processing.
With a global presence spanning 75 countries, CAMOZZI operates 8 factories worldwide (including key hubs in Italy, China, and the U.S.) and is supported by an extensive network of branches and distributors. Driven by innovation and sustainability, the company prioritizes R&D in energy-efficient technologies while diversifying into machine tools, textiles, and clean energy sectors.
Product Overview
The CAMOZZI 454-011-22-G77-122-800 is a precision-engineered, ISO 15552 compliant pneumatic cylinder from Camozzi's renowned P1 series. Designed for robust industrial automation applications, this specific model features a 22mm bore diameter and a substantial 122mm stroke length.
Its key construction material is lightweight yet durable aluminum alloy, ensuring good corrosion resistance while maintaining strength for demanding tasks. The cylinder incorporates standard mounting options and is built to operate effectively within typical industrial compressed air pressure ranges.
This cylinder is characterized by its G77 mounting type, which provides a specific and secure interface for integration into machinery. It comes equipped with standard piston rod end threads and integrated cushioning (adjustable at both ends) to ensure smooth deceleration and quiet operation, minimizing impact forces and vibration at stroke ends.
As part of the versatile P1 family, it offers interchangeability with other ISO 15552 cylinders and benefits from a wide range of compatible accessories like sensors and mounting hardware readily available from Camozzi.
Technical Specifications
| Model Code | 454-011-22-G77-122-800 |
|---|---|
| Series | P1 (ISO 15552 Standard) |
| Bore Diameter | 22 mm (≈0.87 inches) |
| Stroke Length | 122 mm (≈4.80 inches) |
| Mounting Type | G77 (Front flange with threaded holes) |
| Body Material | Anodized aluminum alloy |
| Piston Rod Material | Hard-chromated steel |
|---|---|
| Seals | NBR (Nitrile rubber) |
| Cushioning | Adjustable pneumatic cushions (both ends) |
| Port Size | M5 x 0.8 (standard) |
| Operating Medium | Compressed air (filtered, lubricated/unlubricated) |
