Product Overview

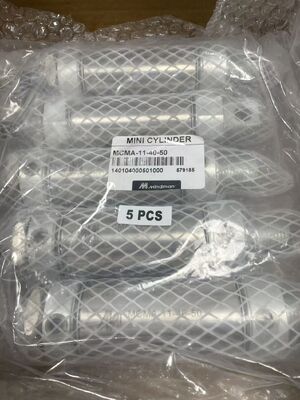

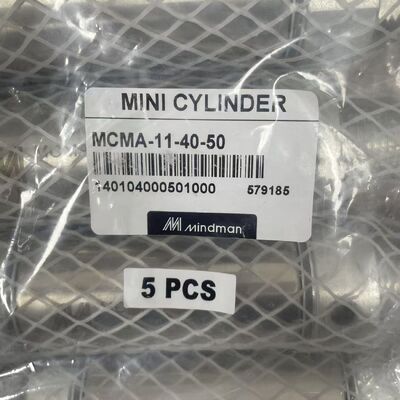

The Mindman MCMA-11-40-50​ is a compact, double-acting pneumatic cylinder​ from the MCMA series. It features a 40mm bore​ and a 50mm stroke, with a design that adheres to international standards (ISO 6431, VDMA 24562, NFPA). The "MCMA-11" prefix indicates the series and mounting style, "40" specifies the bore diameter, and "50" denotes the stroke length. This cylinder is designed for general automation applications requiring reliable linear motion in a compact, lightweight package.

Model Number Breakdown (MCMA-11-40-50)

Note: The "MCMA-11" indicates a specific mounting variant. Other suffixes (e.g., MCMA-12, MCMA-13) indicate different standard mounting styles.

Technical Specifications

Note: Specifications are based on standard Mindman MCMA series data. Parameters like port thread (Rc/G) and rod end thread are configurable options. Always confirm exact configuration with supplier datasheet.

Key Features

• Standard Compact Design:​ Complies with ISO 6431/VDMA 24562/NFPA standards for interchangeability.

• Lightweight Aluminum Body:​ Anodized for corrosion resistance and durability.

• Stainless Steel Piston Rod:​ Resistant to corrosion and scoring.

• Adjustable Cushioning:​ Provides smooth deceleration at stroke ends, reducing noise and impact.

• Sensor Ready:​ Grooves for mounting magnetic position sensors (requires optional piston magnet).

• NBR Seals:​ Suitable for standard lubricated or non-lubricated compressed air.

• Versatile Mounting:​ Rear clevis (Type 11) allows for pivoting motion to accommodate misalignment.

• Wide Pressure Range:​ Operates from 1 to 10 bar for flexible application.

Force Calculations

Formula: Force (N) = Pressure (bar) × Piston Area (cm²) × 10

Piston Area (40mm): ~12.57 cm²

Retraction force is lower due to the area occupied by the piston rod.

Mounting Information (Type 11: Rear Clevis)

• Type:​ Rear clevis with through-hole and pin.

• Application:​ Allows the cylinder to pivot, accommodating angular misalignment between the cylinder and the load.

• Mounting:​ The clevis is attached to the rear end cap. A pin is inserted through the clevis and mounting bracket.

Typical Applications

• Material Handling:​ Pushing, pulling, lifting, and positioning of lightweight to medium loads.

• Automation Machinery:​ Actuation of clamps, stops, gates, and ejectors.

• Packaging Equipment:​ Product transfer, case opening, and sealing operations.

• Machine Tools:​ Door opening, part feeding, and tool changing.

• General Industrial Automation:​ Any application requiring controlled linear motion.

Selection and Sizing Guide

Important Installation & Operational Notes

1. Alignment:​ Ensure proper alignment during mounting, especially with clevis mounts, to minimize side loads and premature wear.

2. Lubrication:​ The cylinder is pre-lubricated. If using non-lubricated air, a one-time lubrication may be required, and a different seal material (e.g., FKM) might be needed for long-term reliability.

3. Air Quality:​ Use clean, filtered compressed air (40µm or finer). Install a filter-regulator-lubricator (FRL) unit upstream.

4. Cushion Adjustment:​ Adjust cushion screws with the cylinder in motion. Tighten until the desired deceleration is achieved, but avoid over-tightening which can cause sluggish movement.

5. Load Connection:​ Connect the load properly to the rod end thread. Avoid creating excessive bending moments on the piston rod.

6. Pressure Rating:​ Do not exceed the maximum operating pressure of 10 bar.

7. Speed Control:​ Use flow control valves on the cylinder ports to regulate speed for smooth operation.

Note: This data sheet provides general specifications for the Mindman MCMA-11-40-50 cylinder. For detailed dimensional drawings, force/speed charts, installation instructions, and maintenance procedures, consult the official Mindman MCMA Series Catalog. Always verify the exact configuration (port thread, rod end, magnet option) with the supplier for your specific order.
