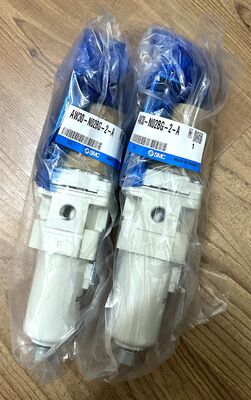

SMC AW30-N02BG-2-A | Filter Regulator with Backflow Function
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Responsetime: | 5 Ms | Corrosion Resistance: | Resistant To Mild Chemicals & Oils |
|---|---|---|---|
| Body Size: | 1/8 Standard | Air Quality: | Lubricated Or Non-Lubricated |
| Pilot Port Size: | M5 X 0.8 | Fluid Compatibility: | Compressed Air (non-lubricated) |
| Weight: | Varies By Model, Approx. 200g | Set Pressure Range: | 0.05 To 0.85 MPa |
| Highlight: | SMC filter regulator with backflow,SMC AW30-N02BG-2-A regulator,filter regulator with warranty |
||
SMC AW30-N02BG-2-A | Filter Regulator with Backflow Function
Product Overview
The SMC AW30-N02BG-2-A is a compact filter regulator with backflow function, designed for industrial pneumatic applications. This integrated unit combines both filtration and pressure regulation in a single device, featuring G 1/4 ports and a maximum operating pressure of 10 bar. Engineered for space-saving installation and reliable performance, this filter regulator is ideal for compressed air systems in various industrial automation applications.
Key Features
-
Integrated Design - Combines filter and regulator in one compact unit
-
Backflow Function - Optional backflow prevention capability
-
Threaded Connections - G 1/4 ports for secure installation
-
High Pressure Rating - Maximum operating pressure of 10 bar
-
Compact Design - Space-saving installation in tight spaces
-
Industrial Grade - Robust construction for demanding applications
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
AW30-N02BG-2-A |
|
Manufacturer |
SMC Corporation |
|
Product Type |
Filter Regulator with Backflow |
|
Port Size |
G 1/4 |
|
Maximum Operating Pressure |
10 bar |
|
Set Pressure Range |
0.05 to 0.7 MPa |
|
Nominal Filtration Rating |
5μm |
|
Proof Pressure |
1.5 MPa |
|
Ambient Temperature |
-5 to 60°C |
|
Fluid |
Air |
|
Drain Capacity |
25 cm³ |
|
Bowl Material |
Polycarbonate |
|
Construction |
Relieving type |
|
Weight |
0.41 kg |
Performance Characteristics
-
Filtration Efficiency - 5μm nominal filtration rating
-
Pressure Regulation - Precise pressure control from 0.05 to 0.7 MPa
-
Flow Capacity - Designed for standard industrial air flow requirements
-
Response Time - Fast response to pressure changes
-
Repeatability - Consistent performance over multiple cycles
-
Long-term Stability - Reliable operation over extended periods
Mechanical Specifications
-
Housing Material - Industrial-grade materials
-
Process Connection - G 1/4 threaded ports
-
Bowl Guard - Standard polycarbonate or optional steel
-
Tightening Torque - Standard industrial specifications
-
Shock Resistance - Suitable for industrial environments
-
Vibration Resistance - Designed for stable operation in vibrating applications
Applications
-
Pneumatic Systems - Compressed air filtration and regulation
-
Industrial Automation - Integration into automation equipment
-
Process Control - Precise pressure regulation in manufacturing processes
-
Equipment Protection - Protection of pneumatic equipment from contaminants
-
Machine Tools - Air filtration and regulation in machining equipment
-
Packaging Machinery - Compressed air systems in packaging equipment
-
Assembly Equipment - Pneumatic control in assembly lines
Environmental Compliance
-
Operating Temperature - -5 to 60°C (with no freezing)
-
Storage Temperature - Standard industrial range
-
Certification - RoHS compliant
-
Pressure Equipment Directive - Compliant for industrial use
Installation Requirements
-
Mounting - Direct threaded installation
-
Process Connection - G 1/4 ports with appropriate sealing
-
Environment - Standard industrial environments (-5 to 60°C)
-
Protection - Standard industrial protection requirements
Maintenance
-
Regular Inspection - Check for physical damage and proper operation
-
Filter Element - Replace filter element as needed
-
Drainage - Regular drainage of condensate
-
Cleaning - Keep connections clean and free from debris
-
Calibration - Verify pressure setting periodically for critical applications
