SMC AQ3000-03 | Quick Exhaust Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Blue | Portsize: | Varies (1/8", 1/4", 3/8", 1/2") |
|---|---|---|---|
| Maximum Input Pressure: | 1.0 MPa | Rated Voltage: | 24 VDC |
| Productname: | SMC Instruments | Operatingtemperaturerange: | -10°C To 60°C |
| Cylinder Side Size: | R 1/8 | Duty Cycle: | 100% Continuous |
| Flow Rate: | ~1,000 L/min (ANR) | ||
| Highlight: | SMC quick exhaust valve,AQ3000-03 exhaust valve,industrial quick exhaust valve |
||

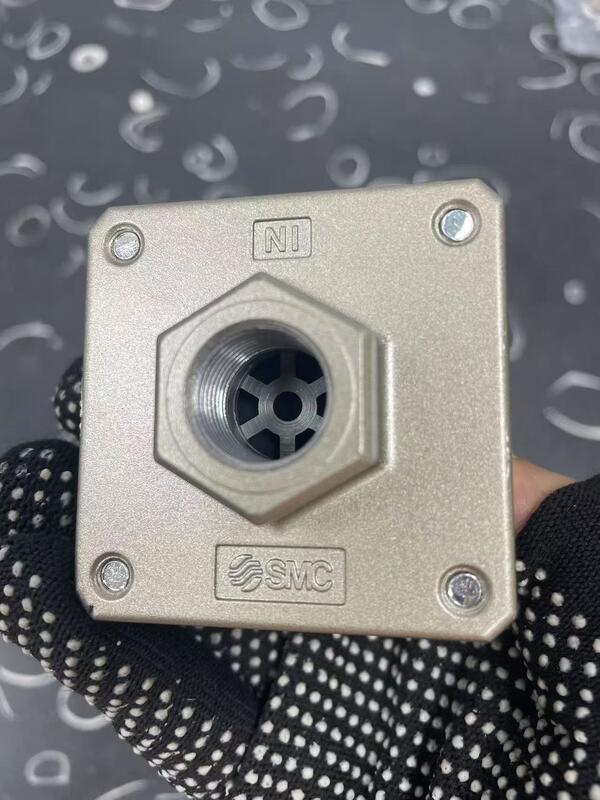

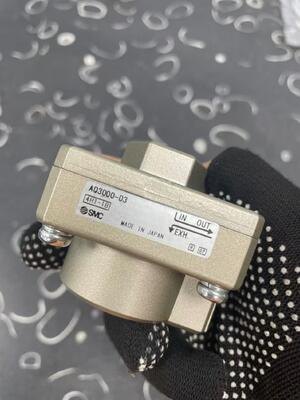

SMC AQ3000-03 | Quick Exhaust Valve
Product Overview
The SMC AQ3000-03 is a quick exhaust valve designed for industrial pneumatic applications. This compact valve features G 1/4 inlet and G 3/8 outlet ports, providing rapid gas discharge for cylinder applications. With its small and lightweight design, the AQ3000-03 offers excellent exhaust performance while saving space in automation equipment.
Key Features
-
High Flow Capacity - Designed to allow rapid gas discharge, suitable for cylinder applications
-
Compact Design - Small and lightweight construction saves space while providing excellent exhaust performance
-
Wide Application Scope - Can be widely used in various automation equipment to improve work efficiency
-
Threaded Connections - G 1/4 inlet and G 3/8 outlet ports for secure installation
-
Industrial Grade - Robust construction for demanding industrial environments
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
AQ3000-03 |
|
Manufacturer |
SMC Corporation |
|
Product Type |
Quick Exhaust Valve |
|
Inlet Port Size |
G 1/4 |
|
Outlet Port Size |
G 3/8 |
|
Operating Temperature |
5-60°C |
|
Operating Pressure |
0.15-1.0 MPa |
|
Pressure Tolerance |
1.5 MPa |
|
Certification |
ATEX |
|
Place of Origin |
America |
|
Weight |
Compact and lightweight design |
Performance Characteristics
-
Flow Capacity - High flow exhaust designed for rapid gas discharge
-
Response Time - Fast exhaust performance for improved efficiency
-
Repeatability - Consistent performance over multiple cycles
-
Long-term Stability - Reliable operation over extended periods
-
Pressure Range - Wide operating pressure range from 0.15 to 1.0 MPa
Mechanical Specifications
-
Housing Material - Industrial-grade materials
-
Process Connection - G 1/4 inlet and G 3/8 outlet threaded ports
-
Electrical Connection - Not applicable (pneumatic device)
-
Tightening Torque - Standard industrial specifications
-
Shock Resistance - Suitable for industrial environments
-
Vibration Resistance - Designed for stable operation in vibrating applications
Applications
-
Cylinder Applications - Rapid exhaust for pneumatic cylinders to improve efficiency
-
Industrial Automation - Integration into automation equipment and assembly lines
-
Manufacturing Processes - Quick exhaust in production equipment
-
Machine Tools - Pneumatic control in machining equipment
-
Packaging Machinery - Air exhaust in packaging systems
-
Assembly Equipment - Pneumatic control in assembly lines
-
Process Control - Quick exhaust in manufacturing and processing systems
Environmental Compliance
-
Operating Temperature - 5 to 60°C
-
Storage Temperature - Standard industrial range
-
Certification - ATEX certified
-
Origin - America
Installation Requirements
-
Mounting - Direct threaded installation
-
Process Connection - G 1/4 inlet and G 3/8 outlet ports with appropriate sealing
-
Environment - Standard industrial environments (5 to 60°C)
-
Protection - Standard industrial protection requirements
Maintenance
-
Regular Inspection - Check for physical damage and proper operation
-
Cleaning - Keep connections clean and free from debris
-
Seal Inspection - Check seals periodically for wear and replace as needed
-
Pressure Verification - Verify operating pressure periodically for critical applications
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
