SMC VF3130-4G-02 | Electric Solenoid Valve, VF Series

Product Overview

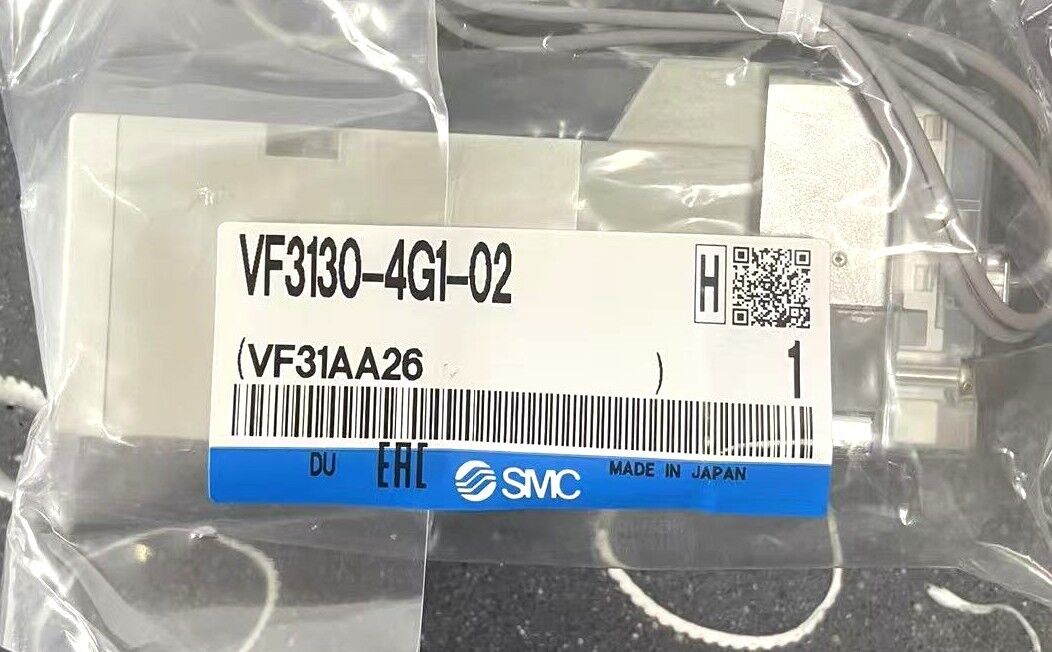

The SMC VF3130-4G-02​ is a 5-port electric solenoid valve designed for industrial pneumatic applications. This compact valve features G 1/4 threaded connections and operates on 24V DC power, providing reliable control of compressed air systems. Part of the VF series, this valve offers high flow performance with low power consumption in a space-efficient design, making it ideal for automation, manufacturing, and process control applications.

Key Features

• 5-Port Configuration​ - Versatile port arrangement for complex pneumatic circuits

• Electric Operation​ - 24V DC solenoid operation for reliable performance

• High Flow Capacity​ - Effective sectional area of 16mm² (Cv=0.89) for efficient air flow

• Compact Design​ - Space-saving construction for easy integration

• Threaded Connections​ - G 1/4 ports for secure installation

• Low Power Consumption​ - 3W power consumption for energy efficiency

• Industrial Grade​ - Robust construction for demanding industrial environments

Technical Specifications

Performance Characteristics

• Flow Performance​ - High flow capacity with effective area of 16mm²

• Response Time​ - Fast response (0.05 second excitation time) for precise control

• Repeatability​ - Consistent performance over multiple cycles

• Long-term Stability​ - Reliable operation over extended periods (10 million cycles service life)

• Pressure Range​ - Wide operating pressure from 0.15 to 0.8 MPa

Electrical Specifications

• Rated Voltage​ - 24V DC

• Power Consumption​ - 3W (DC operation)

• Insulation Class​ - Class F

• Protection Rating​ - IP65 (dust tight and water jet resistant)

• Voltage Tolerance​ - ±10% of rated voltage

• Wiring Options​ - Lead wire or connector type available

Mechanical Specifications

• Housing Material​ - Industrial-grade materials

• Process Connection​ - G 1/4 threaded ports

• Mounting Options​ - Body ported or base mounted styles

• Weight​ - Compact and lightweight design

• Tightening Torque​ - Standard industrial specifications

Applications

• Industrial Automation​ - Pneumatic control in automation equipment and assembly lines

• Manufacturing Processes​ - Flow control in production equipment

• Machine Tools​ - Pneumatic actuation in machining equipment

• Packaging Machinery​ - Air control in packaging systems

• Assembly Equipment​ - Pneumatic control in assembly lines

• Process Control​ - Flow regulation in manufacturing processes

• Semiconductor Equipment​ - Precision control in cleanroom environments

Environmental Compliance

• Operating Temperature​ - 5°C to 50°C

• Storage Temperature​ - Standard industrial range

• Certification​ - RoHS compliant

• Origin​ - Japan

Installation Requirements

• Mounting​ - Direct threaded installation or base mounting

• Process Connection​ - G 1/4 ports with appropriate sealing

• Electrical Connection​ - 24V DC power supply (±10% tolerance)

• Environment​ - Standard industrial environments (5°C to 50°C)

• Protection​ - IP65 protection rating

Maintenance

• Regular Inspection​ - Check for physical damage and proper operation

• Cleaning​ - Keep connections clean and free from debris

• Electrical Testing​ - Verify power supply and coil operation

• Seal Inspection​ - Check seals periodically for wear and replace as needed

• Performance Verification​ - Monitor flow and response characteristics
