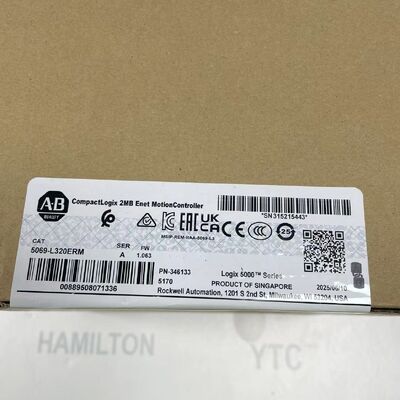

Allen-Bradley 5069-L320ERM CompactLogix 5380 Controller | 2MB, Ethernet, Relay
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Sensing Range: | 20 Mm ... 2000 Mm (adjustable) | Housing Material: | Plastic (PBT) |
|---|---|---|---|
| Connection Type: | M12 4-pin Plug | Protection Rating: | IP67 |
| Operating Temperature: | -25 °C ... +55 °C | Approvals / Standards: | CE, RoHS |
| Highlight: | Allen-Bradley 5069-L320ERM PLC controller,CompactLogix 5380 controller with Ethernet,Allen-Bradley PLC controller with relay |
||
Allen-Bradley 5069-L320ERM CompactLogix 5380 Controller | 2MB, Ethernet, Relay
Allen-Bradley 5069-L320ERM CompactLogix 5380 controller. 2MB memory, 2 Ethernet ports, relay outputs. For machine & process control.
Product: Allen-Bradley 5069-L320ERM CompactLogix 5380 Controller
The Allen-Bradley 5069-L320ERM is a member of the CompactLogix™ 5380 controller family. It is an integrated programmable automation controller (PAC) designed for high-performance machine and process control, featuring onboard I/O, networking, and safety capabilities in a compact form factor.
Key Features
-
Integrated Design: Combines controller, communication, and I/O in one unit.
-
Onboard I/O: Includes embedded digital I/O points.
-
High-Speed Processing: Optimized for faster logic execution and motion control.
-
EtherNet/IP Embedded: Dual-port Ethernet switch for daisy-chained network connectivity.
-
Safety Capable: Supports integrated safety functions with compatible modules.
Technical Specifications
-
Catalog Number: 5069-L320ERM
-
Series: CompactLogix 5380
-
Controller Type: 32-bit programmable automation controller
-
User Memory: 2 MB
-
I/O Capacity: Up to 160 connections (mix of local 5069 I/O and distributed adapters)
-
Motion Control Axes: Up to 16 axes (dependent on configuration)
-
Embedded Communication Ports:
-
2x 1 Gbps EtherNet/IP (with embedded switch for line topology)
-
1x USB 2.0 programming port
-
-
Embedded I/O (Onboard):
-
Inputs: 16 points, 24V DC, sinking/sourcing
-
Outputs: 16 points, Relay (0.5A @ 30V DC / 2A @ 250V AC)
-
-
Programming Software: Studio 5000 Logix Designer® (v24 or later)
-
Real-time Clock: Battery-backed
-
Power Supply: 24V DC (18-30V DC)
-
Safety: Supports CIP Safety™ over EtherNet/IP
-
Operating Temperature: 0 to 60 °C (32 to 140 °F)
Order Code Breakdown
-
5069: Compact 5000 platform
-
L3: CompactLogix 5380 series, mid-range
-
20: 2MB memory
-
ER: EtherNet/IP ports with embedded switch, onboard Relay outputs
-
M: 16 embedded inputs (specified by this suffix)
Typical Applications
Ideal for complex standalone machines or processes requiring:
-
High-speed discrete control
-
Multi-axis coordinated motion
-
Integrated safety
-
Data collection and communication
-
Packaging, material handling, assembly
Important Note
This controller includes 16 embedded relay outputs. For higher current or different output types (e.g., transistor), external 5069 I/O modules are required. The "ERM" variant is one specific configuration; other suffixes denote different onboard I/O mixes (e.g., transistor outputs). Ensure the onboard I/O type matches your application needs.
Note: Specifications are for product identification and comparison. This is a sophisticated controller. For detailed system design, network configuration, and programming guidelines, consult the official Allen-Bradley CompactLogix 5380 Controllers Technical Data.
