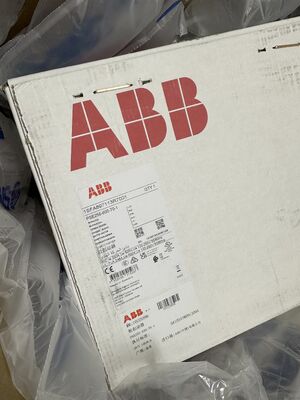

ABB 1SFA897113R7001 Operating Handle Kit | Extension, 4 Lock Positions

Large Image : ABB 1SFA897113R7001 Operating Handle Kit | Extension, 4 Lock Positions Get Best Price

Product Details:

Place of Origin:	CN
Brand Name:	ABB
Certification:	ATEX
Model Number:	1SFA897113R7001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

ABB operating handle extension kit

ABB positioner handle with lock

4-position ABB operating handle

ABB 1SFA897113R7001 Operating Handle Kit | Extension, 4 Lock Positions

ABB 1SFA897113R7001 door-coupling operating handle kit. For S200, S280, S800 MCCBs. 4 lock positions, 3m, IP54 door seal.

Product: ABB 1SFA897113R7001 Door-Coupling Operating Handle Kit

The ABB 1SFA897113R7001 is a mechanical door-coupling kit that allows for the safe and secure operation of specific ABB molded case circuit breakers (MCCBs) from outside an enclosure door. It provides ON/OFF switching and breaker status indication while maintaining the cabinet's protection rating.

Key Features

Safe External Operation: Allows breaker control without opening the panel door.
Door Seal Protection: Maintains the enclosure's IP54 protection rating.
Position Indication: Clear ON/OFF visual indication on the external handle.
Padlockable: Handle can be locked in the OFF position with up to 4 padlocks (ISO 1089).

Technical Specifications

Parameter	Specification
Order Number	1SFA897113R7001
Compatible Breaker Series	S200, S280, S800 (up to 250A frame size)
Type	Door-Coupling Operating Handle Kit
Handle Positions	ON, OFF, TRIPPED (automatic indication)
Locking Positions	OFF position (for up to 4 padlocks)
Maximum Shaft Length	3 meters (standard kit length; can be field-cut)
Door Thickness Range	1.5 - 3 mm
Protection Rating (with seal)	IP54 (when correctly installed on door)
Door Seal Included	Yes, for IP54 rating
Handle Color	Red (typical)
Mounting	Mounts directly to the enclosure door
Internal Actuator	Connects to the breaker's front operating mechanism
Material (Handle)	Thermoplastic (Polyamide)

Function & Components

The kit is a mechanical linkage system consisting of:

External Handle Assembly: Mounts on the outside of the door, showing breaker status.
Adjustable Shaft: Transfers the rotational movement through the door.
Internal Actuator: Connects to the breaker's toggle or rotary handle.
Door Seal & Mounting Hardware: Ensures a proper seal and secure installation.

Typical Applications

Control panels and distribution boards requiring external breaker operation.
Enclosures where safety protocols prohibit opening the door for routine switching.
Applications requiring the breaker to be locked out in the OFF position for maintenance.

Critical Compatibility & Installation Note

Verify Breaker Compatibility: This kit is designed for specific S200/S280/S800 models up to 250A. Confirm compatibility with your exact breaker type and frame size using the ABB catalog.
Correct Installation is Crucial: Proper installation of the door seal is required to achieve the stated IP54 rating. The shaft must be cut to the exact thickness of the enclosure door.
Does Not Trip the Breaker: This is a manual operating mechanism only. It allows you to turn the breaker ON or OFF but does not automatically trip it in a fault condition. The handle will indicate a TRIPPED position if the breaker trips internally.

Note: Specifications are for product identification and comparison. For detailed installation instructions, compatibility lists, and dimensional drawings, consult the official ABB MCCB Accessories Catalog or the kit's installation sheet.
