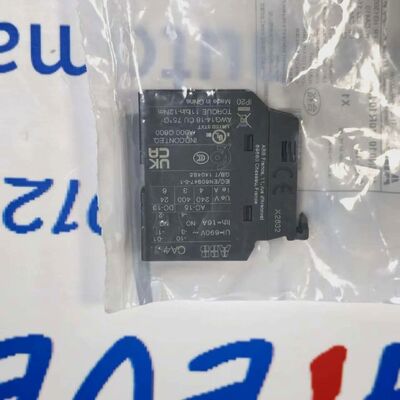

ABB CA4-10 | 1NO Front Mounted Auxiliary Contact Block, Screw Terminals, IP20
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

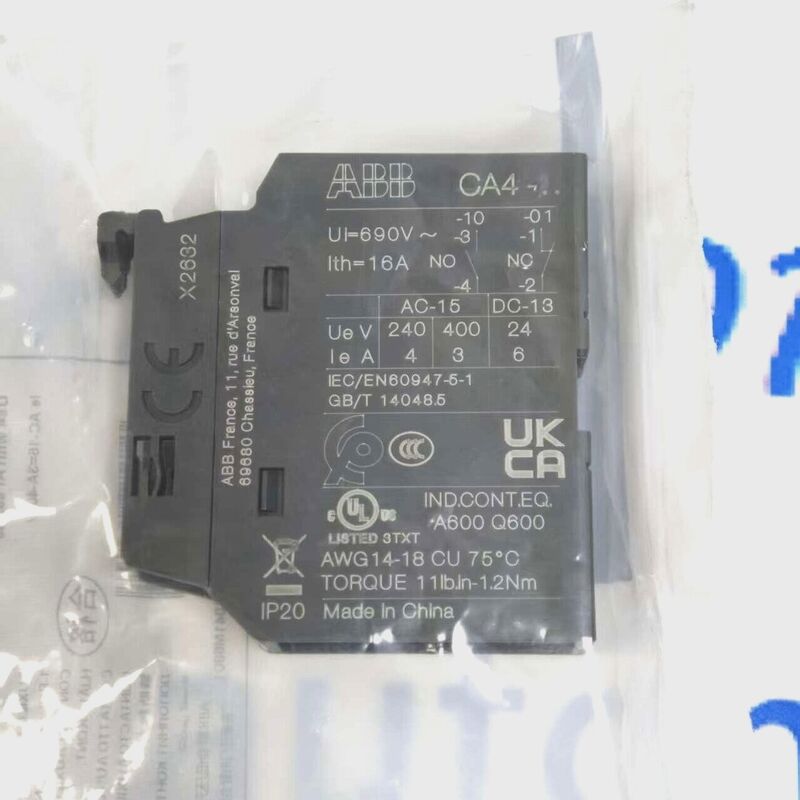

ABB CA4-10 Auxiliary Contact Block Product Overview
ABB CA4-10 is a front mounted auxiliary contact block designed for ABB block contactors and contactor relays. It provides 1 normally open instantaneous auxiliary contact and uses screw terminals for convenient wiring in industrial control panels.
The CA4-10 auxiliary contact block can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. It is suitable for standard industrial environments where reliable auxiliary signalling or control circuit expansion is required.
Technical Specifications - General Information
| Brand | ABB |
| Model | CA4-10 |

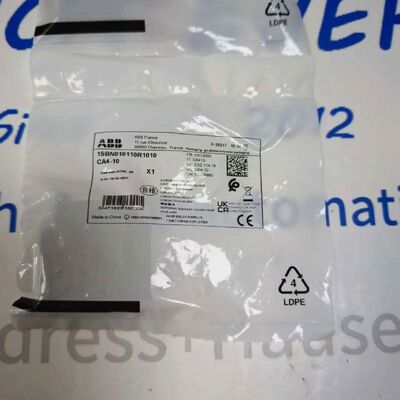

| Product ID | 1SBN010110R1010 |
| Product Type | Auxiliary Contact Block |
| EAN | 3471523130005 |
| Mounting Type | Front mounting |
| Auxiliary Contacts | 1 NO, 0 NC |
| Terminal Type | Screw terminals |
Technical Specifications - Electrical Ratings
| Rated Operational Voltage | Auxiliary circuit 690 V |
| Rated Insulation Voltage | 690 V according to IEC 60947-5-1; 600 V according to UL/CSA |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Frequency | 50 / 60 Hz |
| AC-15 Rated Current | 6 A at 24/127 V; 4 A at 220/240 V; 3 A at 400/440 V; 2 A at 500/690 V |
| DC-13 Rated Current | 6 A / 144 W at 24 V; 2.8 A / 134 W at 48 V; 0.55 A / 60 W at 110 V; 0.27 A / 60 W at 220 V |
| Conventional Free-air Thermal Current | 16 A at 40 deg C |
| Degree of Protection | Auxiliary terminals IP20 |
Dimensions and Installation Data
| Width | 9.9 mm |
| Depth | 39.5 mm |
| Height | 43 mm |
| Net Weight | 0.014 kg |
| Wire Stripping Length | 10 mm auxiliary circuit |
| Tightening Torque | 1.2 N.m auxiliary circuit; 11 in.lb UL/CSA |
| Standards | IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14 |
Suitable For
ABB CA4-10 is suitable for AF09, AF12, AF16, AF26, AF30, AF38, AF40, AF52, AF65, AF80, AF96 and related AFZ/AFC/NF/NFC contactors and contactor relays.
Key Features
- 1-pole front mounted auxiliary contact block for ABB control products.
- 1 normally open instantaneous auxiliary contact for signalling or control circuits.
- Screw terminal connection for straightforward installation and maintenance.
- Compact 9.9 mm width for dense control cabinet layouts.
- IP20 auxiliary terminals and compliance with IEC, UL and CSA standards.
Typical Applications
- Auxiliary signalling in motor starter circuits
- Control circuit expansion for ABB AF and AFC contactors
- Status feedback and interlocking in industrial panels
- Maintenance replacement for ABB CA4 series accessories
About ACH Automation
ACH Automation supplies industrial automation components, PLC products, transmitters, sensors, valves, contactors and related spare parts for global maintenance and project requirements. We help customers source genuine and compatible industrial control products with responsive quotation support.
FAQ
What is ABB CA4-10 used for?
It is used to add a normally open auxiliary contact to compatible ABB contactors and contactor relays.
How many contacts does CA4-10 provide?
CA4-10 provides 1 normally open instantaneous auxiliary contact.
Where is CA4-10 mounted?
It is a front mounted auxiliary contact block for compatible ABB AF, AFC, NF and NFC series devices.
