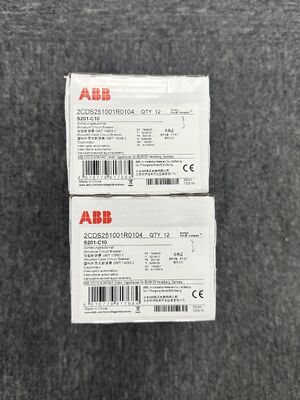

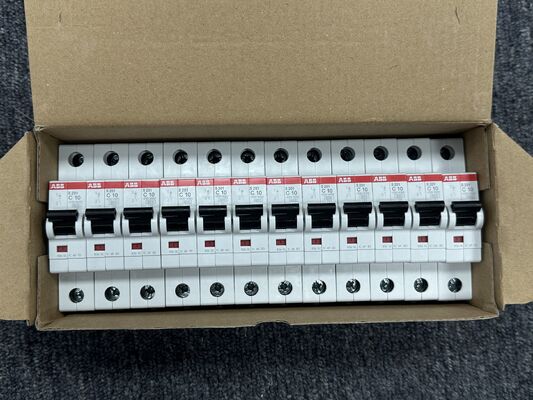

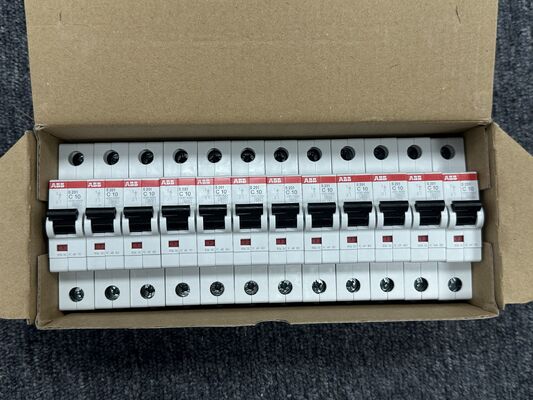

ABB S201-C10 1P Miniature Circuit Breaker | 10A, C Curve, 6kA Specs

Large Image : ABB S201-C10 1P Miniature Circuit Breaker | 10A, C Curve, 6kA Specs Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	ABB
Certification:	ATEX
Model Number:	S201-C10
Document:	S201-C10 ABB.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

ABB S201-C10 miniature circuit breaker

10A C curve circuit breaker

6kA miniature circuit breaker

ABB S201-C10 1P Miniature Circuit Breaker | 10A, C Curve, 6kA Specs

ABB S201-C10 1-pole MCB specifications. 10A rating, C tripping curve, 6kA breaking capacity. For lighting & socket circuit protection.

ABB S201-C10 1-Pole Miniature Circuit Breaker (MCB)

The ABB S201-C10 is a single-pole miniature circuit breaker from the System Pro M compact S200 series. It is designed to provide reliable overcurrent and short-circuit protection for individual branch circuits in final distribution boards.

Key Features

Compact & Modular: 1-pole, 18mm width for space-efficient panel design.
C Characteristic Curve: Optimal protection for circuits with standard inrush currents.
High Safety: 6kA breaking capacity ensures reliable fault interruption.
Easy Installation: DIN rail mounting with screwless cage clamp terminals.

Technical Specifications

Parameter	Specification
Catalog Number	S201-C10
Product Range	System Pro M compact S200
Poles	1 Pole (1P)
Rated Current (Iₙ)	10 A
Tripping Characteristic	C (5 - 10 x Iₙ)
Rated Voltage (Uₙ)	230/400 V AC
Rated Frequency	50/60 Hz
Breaking Capacity (Icn)	6 kA (IEC/EN 60898-1)
Terminal Type	Cage Clamp (suitable for solid and stranded conductors)
Acceptable Wire Size	1 mm² to 25 mm² (copper)
Torque	2.0 N·m (max.)
Mounting	35 mm DIN Rail (EN 60715)
Electrical Life	≥ 20,000 cycles (at rated current)
Mechanical Life	≥ 20,000 cycles
Protection Degree	IP20 (when mounted in enclosure)
Width	18 mm (1 module)
Standards	IEC/EN 60898-1, IEC/EN 60947-2

Function & Protection Curve

This MCB combines thermal and magnetic protection:

Thermal Protection (Overload): Bi-metal strip trips with a time delay on sustained overloads (>1.13 x Iₙ).
Magnetic Protection (Short Circuit): Solenoid trips instantly (within 0.1s) for high-current faults between 50A and 100A (5-10 x Iₙ for C curve).

Typical Applications

Protection of lighting circuits in residential and commercial buildings.
Protection of socket-outlet (receptacle) circuits.
Control circuits in industrial panels (within its current rating).
Final distribution in single-phase installations.

Important Installation & Selection Notes

Single-Pole Design: This MCB breaks only the phase (line) conductor. The neutral should be distributed separately. For complete circuit isolation, consider a 1P+N (S201N) or 2-pole (S202) breaker.
Cable Sizing: The protected cable must have a current-carrying capacity equal to or greater than the MCB rating (10A), per local wiring regulations.
Coordination: Must be selectively coordinated with the upstream protective device (e.g., main breaker or fuse).
Ambient Temperature: Rated for -25°C to +55°C. Performance derates above 40°C ambient.

Note: Specifications are for product identification and comparison. For full installation, selection guidelines, and coordination studies, consult the official ABB S200 Series Technical Catalog and applicable national electrical codes (e.g., NEC, IEC 60364).
