Allen-Bradley 889D-F4BC-10 DC Micro Cable

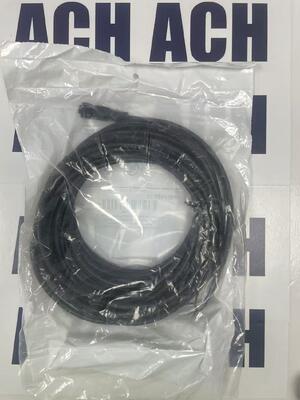

The Allen-Bradley 889D-F4BC-10​ is a 4-pin DC micro cable assembly​ from the 889D series, featuring a female connector with internal threads​ on one end and bare cable termination​ on the other end. This industrial-grade cordset is designed for connecting sensors, actuators, and other DC-powered devices in automation systems. With a 10-meter PVC-jacketed cable, epoxy-coated zinc coupling nut, and gold-plated contacts, it provides reliable signal and power transmission in harsh industrial environments. The female connector features internal threads (typically M12) for secure mating with male DC micro connectors, while the opposite end terminates in bare wires for field connection.

Key Features

• 4-Pin DC Micro Connector:​ Female connector with internal threads (M12)

• 10-Meter Cable Length:​ PVC-jacketed cable for flexible installation

• 22 AWG Conductors:​ 4-core stranded copper wire

• IP69K Protection:​ Dust-tight and high-pressure washdown resistant

• Epoxy-Coated Zinc Housing:​ Corrosion-resistant construction

• Gold-Plated Contacts:​ Low contact resistance and reliable connectivity

• PVC Cable Jacket:​ Oil-resistant and flexible

• NEMA 6P Rating:​ Suitable for washdown environments

• 300V Rated:​ For DC power and signal applications

• 4A Current Rating:​ Suitable for most sensor/actuator loads

Technical Specifications

Note: Specifications are based on Allen-Bradley 889D series technical documentation and industry standards. The "889D-F4BC-10" model specifically indicates female connector, bare cable termination, and 10-meter length.

Model Number Decoding (889D-F4BC-10)

• 889D:​ Series designation (889D DC micro cable series)

• F4:​ First end connector type (F = female, 4 = 4-pin)

• BC:​ Second end termination (B = bare cable, C = cable type)

• 10:​ Cable length (10 meters)

Note:​ The "F4" indicates a female 4-pin connector. The "BC" indicates bare cable termination (no connector on the second end). The "10" specifies 10-meter cable length. This is a standard cordset configuration for field wiring applications.

Key Differences from Similar Models

Compared to other 889D series cables:

• 889D-F4BC-10:​ Female 4-pin​ + bare cable​ + 10m length​ (this model)

• 889D-F4BC-2:​ Same configuration, 2-meter length

• 889D-F4BC-5:​ Same configuration, 5-meter length

• 889D-F4BC-15:​ Same configuration, 15-meter length

• 889D-M4BC-10:​ Male 4-pin + bare cable + 10m length

• 889D-F4AC-10:​ Female 4-pin + male connector + 10m length

• 889D-F4FC-10:​ Female 4-pin + female connector + 10m length

The female connector with internal threads​ mates with standard male DC micro connectors (M12 thread). The bare cable termination​ allows for direct field wiring to terminal blocks, connectors, or other devices. The 10-meter length​ provides flexibility for medium-distance installations.

Typical Applications

• Industrial Automation:​ Sensor and actuator connections in PLC systems

• Machine Control:​ I/O device wiring in machinery

• Process Control:​ Instrumentation connections

• Material Handling:​ Conveyor system sensor wiring

• Packaging Machinery:​ Photoelectric sensor connections

• Robotics:​ End effector sensor wiring

• Test and Measurement:​ Temporary wiring setups

• Field Installation:​ Custom cable assemblies for device connections

Important Selection & Installation Notes

1. Connector Type:​ This is a female connector​ with internal threads (typically M12). Ensure mating connector is male with external threads.

2. Cable Termination:​ The second end is bare cable​ (no connector). Requires field termination to appropriate connectors or terminal blocks.

3. Cable Length:​ 10 meters is suitable for medium-distance runs. Consider voltage drop for long runs with high current.

4. Current Rating:​ Do not exceed 4A continuous current. For higher currents, consider larger gauge cables.

5. Voltage Rating:​ Rated for 250V DC. Do not use for AC mains voltage applications.

6. Environmental Protection:​ IP69K rating provides protection against high-pressure washdown. Ensure proper sealing when mated.

7. Temperature Range:​ Do not operate outside -20°C to +85°C range.

8. Bend Radius:​ Maintain minimum bend radius of 10x cable diameter during installation.

9. Wiring:​ Follow IEC color coding standards for proper polarity (typically: brown = +24V, blue = 0V, black/white = signal).

10. Shielding:​ This model is unshielded. For EMI-sensitive applications, consider shielded versions.

11. Installation:​ Avoid sharp bends, crushing, or excessive tension on the cable.

12. Maintenance:​ Regularly inspect for damage to cable jacket or connector seals.

Note: For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official Allen-Bradley 889D Series Technical Manual​ or contact Rockwell Automation technical support. Always verify the exact model number configuration with the manufacturer, as notation variations may occur in different documentation systems.
