Product Overview

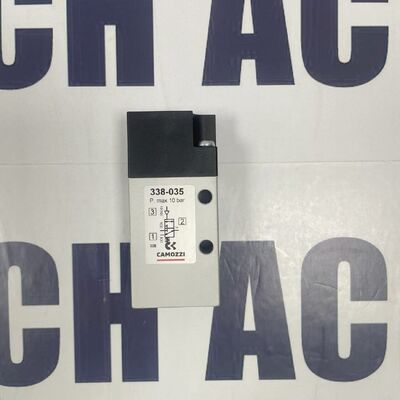

The CAMOZZI 338-035​ is a 3/2-way normally closed directional control valve​ from the 3 series, designed for industrial pneumatic control applications. This model features G1/8 pneumatic ports, 180 Nl/min standard rated flow, 24V DC operation, and IP65 protection. The "338" designation indicates the 3 series valve with 3/2-way function, while "035" specifies the specific configuration and port size. This compact, direct-acting solenoid valve provides reliable switching for compressed air systems in automation equipment, material handling, and process control applications requiring precise on/off control.

Technical Specifications

Note: Specifications are based on CAMOZZI 3 series technical documentation. The "338-035" model specifically indicates 3/2-way NC function with G1/8 ports. Actual specifications may vary slightly depending on production batch.

Model Number Decoding (338-035)

• 338:​ Series and function designation (3 series, 3/2-way normally closed)

• 035:​ Configuration code (specifics port size, mounting, and options)

Note:​ The "338" prefix indicates the 3 series valve with 3/2-way normally closed function. The "035" suffix indicates G1/8 port size and standard configuration. This is a direct-acting solenoid valve with mechanical spring return.

Key Features

• 3/2-Way Function:​ Normally closed configuration for single-acting cylinder control

• Direct-Acting Design:​ No pilot pressure required, suitable for low pressure applications

• Compact Size:​ Small footprint for space-constrained installations

• Plastic Housing:​ Engineering plastic construction for corrosion resistance

• IP65 Protection:​ Dust-tight and water-jet resistant for industrial environments

• Quick Response:​ Fast switching times (≤10 ms ON, ≤15 ms OFF)

• Low Power Consumption:​ 2.7 W power requirement

• Standard Connections:​ M8 electrical connector and G1/8 pneumatic ports

• Normally Closed:​ Ports closed in de-energized state for safety applications

• LED Indicator:​ Visual status indication (with optional socket)

Typical Applications

• Industrial Automation:​ Control of single-acting pneumatic cylinders

• Material Handling:​ Workpiece clamping and release systems

• Packaging Machinery:​ Air control for packaging equipment

• Assembly Systems:​ Component positioning and fixturing

• Process Control:​ Pneumatic valve control in manufacturing processes

• Test Equipment:​ Laboratory and production test setups

• Robotics:​ End-of-arm tooling control for small actuators

• Medical Equipment:​ Pneumatic control in medical devices

• Automotive Manufacturing:​ Production line automation

Important Technical Notes

1. Operating Pressure:​ Do not exceed 7 bar maximum operating pressure. Minimum operating pressure is 1 bar.

2. Electrical Connection:​ Use 24V DC power supply. Ensure correct polarity (reverse polarity protected). Socket (121-803/806/810 series) must be ordered separately.

3. Pneumatic Connections:​ Use appropriate sealing (PTFE tape or sealant) on G1/8 threads. For push-in fittings, use 4mm or 6mm OD tubing.

4. Air Quality:​ Use filtered compressed air according to ISO 8573-1:2010 standards (filtered to 5 micron). Lubricated air can be used but requires continuous lubrication once started.

5. Mounting:​ Can be mounted in any position. Use M3 screws for panel mounting. Avoid excessive vibration or shock.

6. Temperature Limits:​ Operating temperature range is 0°C to +50°C. Do not use outside this range.

7. Normally Closed Function:​ In de-energized state, supply port is closed. Ensure downstream equipment is designed for this condition.

8. Maintenance:​ Periodically check for leaks and proper operation. Clean pneumatic ports if clogged.

9. Electrical Socket:​ Socket (121-803, 121-806, or 121-810) must be ordered separately for electrical connection.

10. Voltage Options:​ Standard voltage is 24V DC. Other voltages (12V DC, 6V DC) may be available on special order.

Note: For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official CAMOZZI 3 Series Technical Manual. Always verify the exact model number configuration with the manufacturer, as notation variations may occur.
