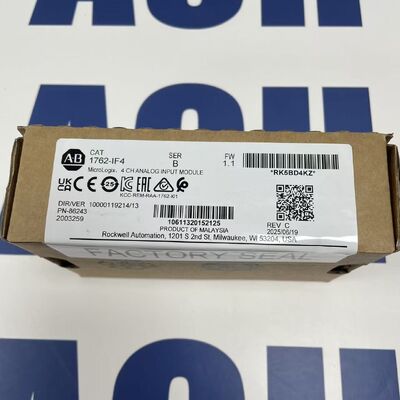

Allen‑Bradley 1762‑IF4 Module | 4-Channel, 4-20mA/0-10V, 12 Bit, for MicroLogix 1100/1400

Allen‑Bradley 1762‑IF4 Module | 4-Channel, 4-20mA/0-10V, 12 Bit, for MicroLogix 1100/1400
Allen‑Bradley 1762‑IF4 Module | 4-Channel, 4-20mA/0-10V, 12 Bit, for MicroLogix 1100/1400

Large Image :  Allen‑Bradley 1762‑IF4 Module | 4-Channel, 4-20mA/0-10V, 12 Bit, for MicroLogix 1100/1400 Get Best Price

Product Details:
Place of Origin: US
Brand Name: Allen‑Bradley
Certification: ATEX
Model Number: 1762‑IF4
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 12-30 V DC (Two-wire) Ambient Temperature: -40°C To 80°C (-40°F To 176°F)
Electrical Rating: General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification) Certifications: Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)
Highlight:

Allen-Bradley 1762-IF4 4-channel analog module

,

MicroLogix 1100 4-20mA input module

,

12-bit PLC analog input module

Allen‑Bradley 1762‑IF4 Module | 4-Channel, 4-20mA/0-10V, 12 Bit, for MicroLogix 1100/1400

Allen‑Bradley 1762‑IF4 specifications. Analog input module, 4 channels, 4-20mA/0-10V, 12-bit, for MicroLogix 1100/1400 PLC.

Product Overview

The Allen‑Bradley 1762‑IF4 is an analog input module for the MicroLogix 1100 and 1400 programmable controllers. It provides 4 input channels that can be individually configured for either 4-20mA current or 0-10V voltage signals. The module features 12-bit resolution for accurate measurement of process variables like pressure, temperature, or flow. Its compact design allows for easy expansion of the MicroLogix system's I/O capabilities for basic analog monitoring and control tasks.

Technical Specifications (Module)

Parameter

Specification

Manufacturer​

Rockwell Automation (Allen‑Bradley)

Series​

1762 (MicroLogix Expansion I/O)

Model​

1762‑IF4

Product Type​

Analog Input Module

Number of Channels​

4

Input Types​

4-20 mA, 0-10V DC (software selectable per channel)

Resolution​

12 bits

Input Impedance​

250 Ω (current), 100 kΩ (voltage)

Technical Specifications (Electrical/System)

Parameter

Specification

Common Mode Rejection​

90 dB (min)

Update Time​

20 ms per channel (all channels: 80 ms)

Power from Base Unit​

5V DC via expansion cable

Connection​

Removable screw terminal block

Compatible Controllers​

MicroLogix 1100, MicroLogix 1400

Maximum Modules per System​

Depends on controller (e.g., up to 4 for ML1400)

Operating Temperature​

0 to 60°C (32 to 140°F)

Certifications​

CE, cULus, ATEX

Key Features

  • Flexible Input Configuration:​ Each channel individually selectable for current or voltage

  • 12-Bit Resolution:​ Provides sufficient accuracy for basic process monitoring

  • Compact Design:​ Adds 4 analog inputs without requiring a separate power supply

  • Removable Terminal Block:​ Simplifies wiring and maintenance

  • Easy Integration:​ Automatically recognized and configured in RSLogix 500 software

  • Wide Operating Temperature:​ Suitable for industrial environments

  • Hazardous Area Certified:​ Approved for use in explosive atmospheres (ATEX)

Applications

  • Connecting 4-20mA or 0-10V transmitters (pressure, level, temperature) to MicroLogix PLCs

  • Simple process monitoring and data acquisition

  • Basic analog control loops with MicroLogix 1100/1400

  • Small machine control requiring analog feedback
