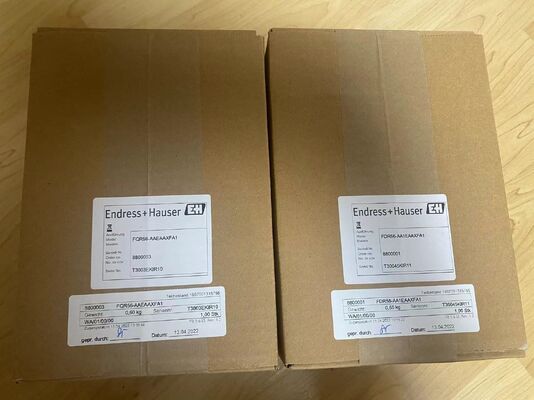

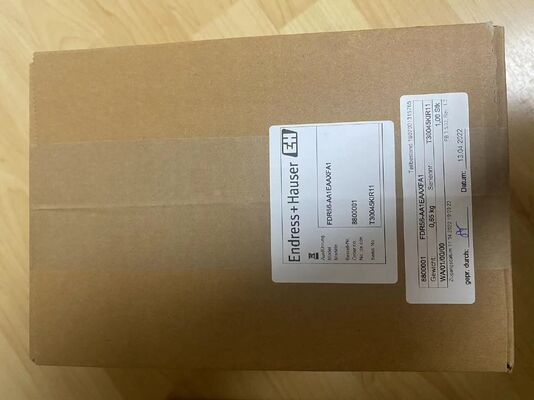

Endress+Hauser FDR56-AA1EAAXFA1 Transmitter | Differential, 4-20mA+HART, 0-100 mbar, Flanged, Ceramic

Large Image : Endress+Hauser FDR56-AA1EAAXFA1 Transmitter | Differential, 4-20mA+HART, 0-100 mbar, Flanged, Ceramic Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	Endress+Hauser
Certification:	ATEX
Model Number:	FDR56-AA1EAAXFA1
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

E&H differential pressure transmitter

4-20mA HART flanged transmitter

ceramic pressure transmitter 100 mbar

Endress+Hauser FDR56-AA1EAAXFA1 Transmitter | Differential, 4-20mA+HART, 0-100 mbar, Flanged, Ceramic

Endress+Hauser FDR56-AA1EAAXFA1 specifications. Differential pressure transmitter, 4-20mA+HART, 0-100 mbar, flanged, ceramic sensor.

Product Overview

The Endress+Hauser FDR56-AA1EAAXFA1 is a differential pressure transmitter from the Deltabar S series, utilizing a ceramic capacitive sensor (CERAPHIRE). It is configured for a low differential pressure range of 0-100 mbar and provides a 4-20mA output with HART communication. The device features integrated flanges for direct process connection and is housed in a robust enclosure. The ceramic sensor offers high stability for flow, level, and filter monitoring applications in aggressive media.

Technical Specifications (Measurement)

Parameter	Specification
Manufacturer	Endress+Hauser AG
Series	Deltabar S (FDR56)
Model	FDR56-AA1EAAXFA1
Product Type	Differential Pressure Transmitter
Sensor Technology	Ceramic Capacitive (CERAPHIRE)
Measuring Range	0 to 100 mbar (adjustable)
Accuracy	±0.1% of span (typical)
Output Signal	4-20 mA with HART Protocol

Technical Specifications (Electrical/Mechanical)

Parameter	Specification
Power Supply	10.5-42V DC (loop powered)
Process Connection	Integrated flanges (e.g., DN50 PN16)
Wetted Parts	Ceramic, stainless steel 316L, FKM seals
Overpressure Limit	40 bar (flange rating dependent)
Process Temperature	-40 to 120°C (-40 to 248°F)
Ambient Temperature	-40 to 85°C (-40 to 185°F)
Protection Rating	IP66/IP67
Electrical Connection	1/2" NPT conduit
Certifications	CE, ATEX, IECEx, SIL 2/3

Key Features

Ceramic CERAPHIRE Sensor: Excellent long-term stability, resistant to overpressure and corrosion
Low Pressure Measurement: Optimized for small differential pressures
HART Communication: For configuration, calibration, and diagnostics
Integrated Flanges: Simplified installation with direct piping connection
High Overpressure Capability: Withstands high static line pressures
Wide Temperature Range: Suitable for various process conditions
Safety Integrity: Suitable for use in SIL 2/3 safety loops
Robust Housing: IP66/IP67 protection for harsh environments

Applications

Filter monitoring (clogging indication)
Gas or liquid flow measurement via orifice plate
Low differential pressure level measurement in closed tanks
Pressure drop measurement across heat exchangers or scrubbers

Endress+Hauser FDR56-AA1EAAXFA1 Transmitter | Differential, 4-20mA+HART, 0-100 mbar, Flanged, Ceramic 0
