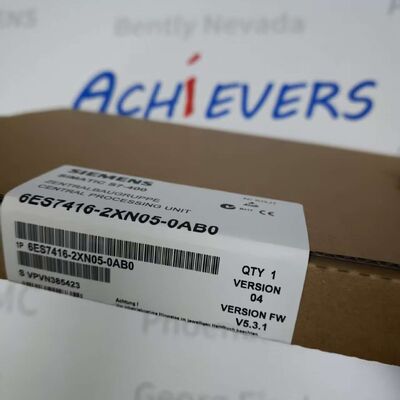

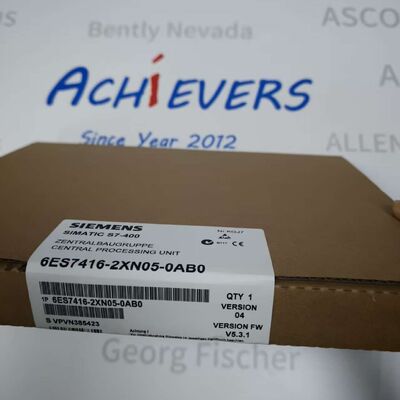

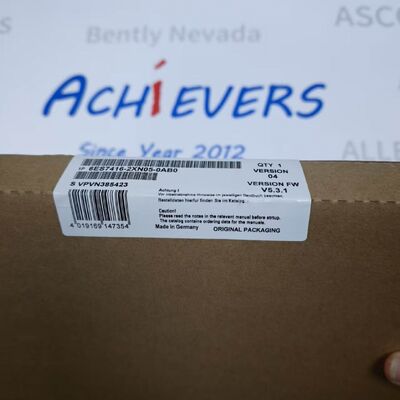

6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP

6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP
6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP 6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP 6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP 6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP 6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP 6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP

Large Image :  6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP Get Best Price

Product Details:
Place of Origin: DE
Certification: ATEX
Model Number: 6ES7416-2XN05-0AB0
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

6ES7416-2XN05-0AB0 | SIMATIC S7-400 CPU 416-2 DP, 5.6 MB Work/Load Mem, MPI/DP & PROFIBUS DP
6ES7416-2XN05-0AB0 SIMATIC S7-400 CPU 416-2 DP. 5.6 MB integrated work memory, MPI/DP port + PROFIBUS DP port, up to 32 MB load mem (CF card), for mid-to-high complexity process & plant automation.

Product Overview

6ES7416-2XN05-0AB0​ is a high-performance central processing unit (CPU 416-2 DP)​ from the SIMATIC S7-400 series, designed for medium to large-scale automation tasks in process industries, power plants, and complex machine lines. It features 5.6 MB integrated work memory, dual communication interfaces​ (MPI/PROFIBUS DP master/slave on Port 1, PROFIBUS DP master/slave on Port 2), and supports up to 32 MB load memory​ via a removable Compact Flash (MC) card. The CPU executes boolean operations in ~0.04 µs and supports extensive I/O expansion via S7-400 signal/modules and distributed I/O (ET 200M/ET 200S/ET 200pro over PROFIBUS DP or Industrial Ethernet with CP).

Technical Specifications (CPU & Memory)

Parameter
Specification
Order Number​
6ES7416-2XN05-0AB0​
Product Family​
SIMATIC S7-400 — CPU 416-2 DP (V5.x Firmware)
Work Memory (Integrated RAM)​
5.6 MB​ (2.8 MB Code / 2.8 MB Data — typical split)
Load Memory​
External on SIMATIC Micro Memory Card (MMC / CF Type I/II)​ — max. 32 MB​ (Card ordered separately: 6ES7952-1…)
Execution Time (Bit Op)​
0.04 µs​ (Typical — V5.x firmware)
Execution Time (Word/Fixed Pt.)​
0.04 µs / 0.4 µs (Typical)
Number of Blocks (max.)​
FC: 2048 / FB: 2048 / DB: 4095 (max. 16 KB each, larger possible with 64 KB DBs)
Local Data per Priority Class​
512 bytes / 16 priority classes
Timers / Counters​
2048 Timers (S5/TON/TOF/TP) / 2048 Counters (S5/C up/down)

Technical Specifications (Interfaces & I/O Capacity)

Parameter
Specification
Communication Ports​
1 × MPI/PROFIBUS DP (Port X1 — configurable as MPI up to 12 Mbps or DP Master/Slave)
1 × PROFIBUS DP (Port X2 — DP Master/Slave, max. 12 Mbps)​
Max. DP Slaves (per Port)​
124 DP Slaves (Master Mode)
Integrated MPI Address​
Default 2 (settable 0–126) — for PG/OP/HMI connection
Max. Distributed I/O (DP)​
Limited by DP slave count & bus load — typical large-plant capacity
Max. Central I/O (S7-400 Rack)​
Up to 4096 DI + 4096 DO (address range), 2048 AI + 2048 AO (depending on rack/PS capacity)
Supported Protocols​
MPI, PROFIBUS DP-V0/V1, S7 Communication (PG/OP/HMI), System Redundancy (with 2x CPUs + sync modules)
Expandability​
Up to 4 x UR1/UR2/CR3 racks with IM460/461 or IM470/471 (distributed I/O via DP preferred)
Operating Temperature​
0 … +60 °C​ (Horizontal mounting in cabinet)
Backup Battery​
S7-400 PS with buffering or external SITOP — work memory retentive with backup; clock buffered > 6 weeks typical

Key Features

  • Large Program Capacity:​ 5.6 MB work memory + up to 32 MB load memory (CF card) — handles extensive process logic, data logging, recipe management, and large symbol tables.
  • Dual PROFIBUS Ports:​ Native MPI/DP + dedicated PROFIBUS DP port allow segregation of engineering/PG traffic from field bus — no extra CP needed for two DP segments.
  • High-Speed Execution:​ Sub-0.1 µs boolean instruction time — suitable for complex closed-loop, math-intensive, or multi-axis coordination logic.
  • Redundancy Ready:​ Compatible with S7-400H redundant configuration​ when paired with a second CPU 416-2, sync modules (6ES7960-…), and redundant PS/IM — achieves SIL 3 / AK 6 category per IEC 61508 / IEC 62443.

Applications

  • Process Industries (Chemical, Pharma, Pulp & Paper):​ Large-scale batch/continuous control with hundreds of analog loops and extensive alarm/recipe handling.
  • Power Generation & Water Treatment:​ Unit/plant-level control coordinating multiple subsystems (BOP, CW, fuel handling, SCADA interface).
  • High-End Machine Lines:​ Multi-section web lines, press lines, or test stands with >1000 I/O points and tight timing requirements.
  • SCADA / MES Front-End:​ Acting as data concentrator and control engine for multiple subordinate PLCs/RTUs over PROFIBUS or Industrial Ethernet (with CP343-1/CP443-1).
Note: The Micro Memory Card (MMC/CF card — 6ES7952-1…-0AA0)​ with STEP 7 project, HW Config, and load memory must be ordered separately. For redundant H-system, two identical CPUs, sync fiber modules (6ES7960-1…), and a redundant power supply configuration are required. The CPU 416-2XN05-0AB0 is the V5.x firmware​ variant — ensure your STEP 7 version (V5.5 or newer recommended) supports it. For newer S7-400 CPUs with even larger memory, see CPU 417-4 (6ES7417-4XT05-0AB0).
