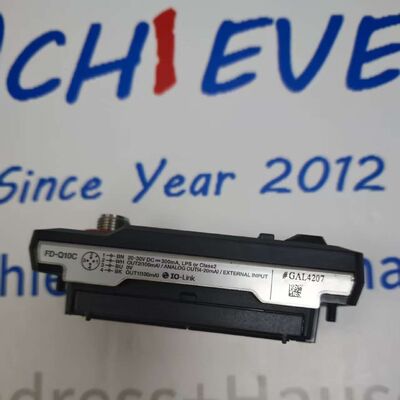

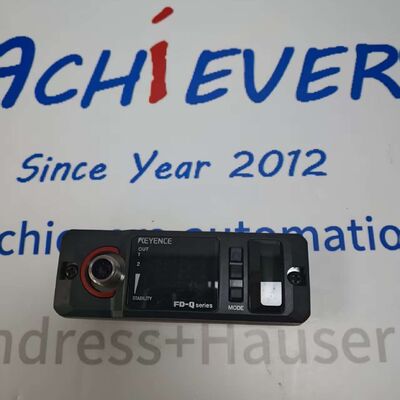

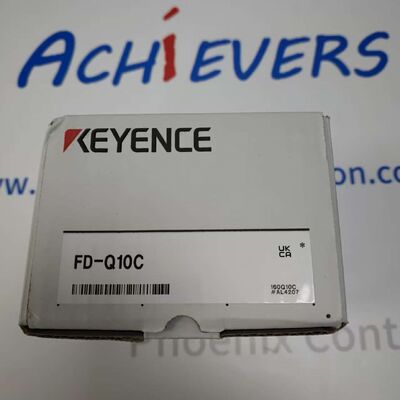

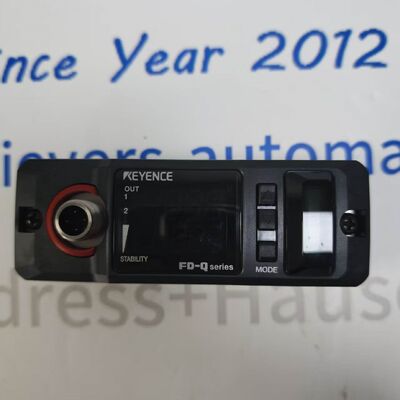

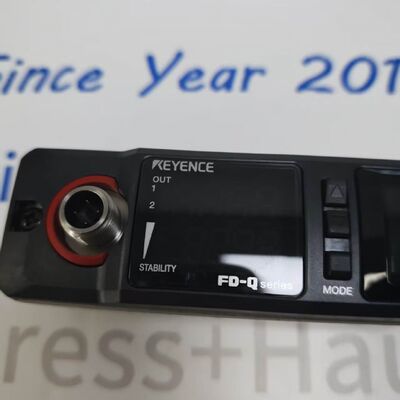

KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail

KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail
KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail

Large Image :  KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail Get Best Price

Product Details:
Place of Origin: JP
Brand Name: KEYENCE
Certification: ATEX
Model Number: KEYENCE FD-Q10C
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

KEYENCE FD-Q10C liquid flow sensor

,

PFA body digital flow sensor

,

inline flow sensor 0.5-10 L/min

KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail
KEYENCE FD-Q10C digital inline liquid flow sensor — 0.5–10 L/min range, PFA wetted parts, NPN open-collector pulse output, M8 3-pin connector. For DI water, chemicals, coolants in semiconductor & pharma.

Product Overview

The KEYENCE FD-Q10C​ is a digital inline liquid flow sensor​ from the FD-Q series (Chemically Resistant / Ultrapure Liquid Type), designed for non-contact measurement of low-viscosity liquids in small-diameter process lines. It features a PFA (perfluoroalkoxy) flow tube and wetted parts, making it suitable for deionized water, acids, alkalis, and photoresist solvents in semiconductor and pharmaceutical applications. The sensor outputs an NPN open-collector pulse proportional to flow rate (or alarm via setting switch on amplifier — FD-Q series typically pairs with dedicated FD amplifier such as FD-AMP1 or integrated display unit)​ and connects via an M8 3-pin male connector (pigtail cable). The Q10C variant covers 0.5–10 L/min​ with a one-touch fitting or threaded process connection (typically Rc 1/4" or SUS hose nipple — confirm per regional catalog). No moving parts — flow is sensed via thermal or ultrasonic principle depending on FD sub-family (FD-Q uses thermal micro-sensor array).

Technical Specifications (Flow & Electrical)

Parameter
Specification
Model / Order Code​
FD-Q10C​ (KEYENCE FD Series — Chem. Resistant Inline Flow Sensor, Mid Range)
Measured Medium​
Liquids — DI water, acids (dilute), alkalis, solvents (check chemical compatibility chart)
Flow Rate Range​
0.5 … 10.0 L/min​ (calibrated for water at 20 °C)
Min. Detectable Flow​
0.3 L/min (typical — varies with fluid density/viscosity)
Repeatability​
± 2 % F.S. (typical for water)
Output Type (Sensor Side)​
NPN Open Collector (Switching / Pulse)​ — paired with FD-AMP series amplifier for display & setpoint
Supply Voltage (via Amplifier)​
12–24 V DC (supplied by connected FD-AMP unit)
Response Time​
≤ 500 ms (typical — configurable on amplifier)
Fluid Temp. Range​
+5 … +60 °C​ (no freezing)
Fluid Pressure (Max.)​
0.7 MPa (7 bar / 100 psig)​ — verify per fitting type

Technical Specifications (Mechanical & Construction)

Parameter
Specification
Wetted Parts Material​
PFA (flow tube), PTFE (seals), PVDF (optional sensor cap)​ — metal-free flow path
Process Connection​
Typically Rc 1/4" female or One-Touch Hose Barb φ6/φ8 mm​ — confirm exact suffix (C = fitting type per KEYENCE catalog: often compression or barb for 6×8 mm tubing)
Sensor Body (Non-Wetted)​
PBT / Polycarbonate — IP40 (sensor head), IP65 when mated with proper connector
Electrical Connection​
M8 × 1, 3-pin A-coded Male Plug (pigtail — 2 m standard cable, can be extended with M8 extension cord)​
Ambient Temperature​
0 … +50 °C (no condensation)
Degree of Protection​
IP65 (connected), IP40 (disconnected)
Dimensions (Sensor Only)​
≈ 60 × 30 × 30 mm (body) + fittings
Weight (Approx.)​
80 g
Required Accessory​
FD-AMP1 / FD-AMP2 Amplifier / Display Unit​ (sold separately — provides setpoint, alarm, analog output 4–20 mA / 0–5 V option)
Certifications​
CE, KC

Key Features

  • All-PFA Wetted Path:​ No metal contamination — ideal for UPW (ultra-pure water), CMP slurry lines, and corrosive chemical dosing in semiconductor fabs.
  • No Moving Parts:​ Thermal micro-sensor — no paddle/wheel to clog or wear; minimal pressure drop (< 0.02 MPa typical at max flow).
  • Compact Inline Design:​ Fits tight process skid tubing runs — direct inline installation vs. larger turbine meters.
  • Pairs with FD-AMP Amplifier:​ Dedicated amp provides local LCD display, HI/LO alarm relays, analog retransmission, and key-lock — simplifies loop integration.
  • Quick-Disconnect M8 Connector:​ Easy removal for maintenance/calibration without disturbing wiring.

Typical Applications

  • Semiconductor Wet Process:​ Chemical dispense line flow verification (HF, H₂SO₄ dilute, developer — per compatibility chart).
  • Pharma / Biotech Skid:​ DI water or CIP solution flow confirmation in small-bore tubing.
  • Coolant / Lubricant Monitoring:​ Low-flow confirmation on spindle or laser head cooling loops.
  • Chemical Dosing Systems:​ Verify metering pump output on acid/alkali injection lines.

KEYENCE FD-Q10C | Digital Inline Liquid Flow Sensor 0.5–10 L/min, PFA Body, NPN Open Collector, M8 Pigtail 0
