Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug

Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug
Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug

Large Image :  Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug Get Best Price

Product Details:
Place of Origin: HU
Brand Name: BALLUFF
Certification: ATEX
Model Number: BES M12MI-PSC40B-S04G
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

M12 inductive proximity sensor

,

4mm PNP NO shielded sensor

,

M12 plug proximity switch

Balluff BES M12MI-PSC40B-S04G | M12 Inductive Prox 4mm PNP NO 3-Wire, Shielded, M12 Plug

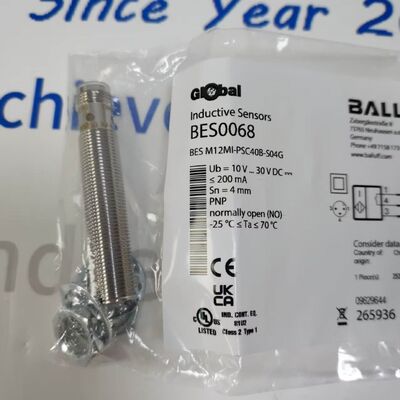

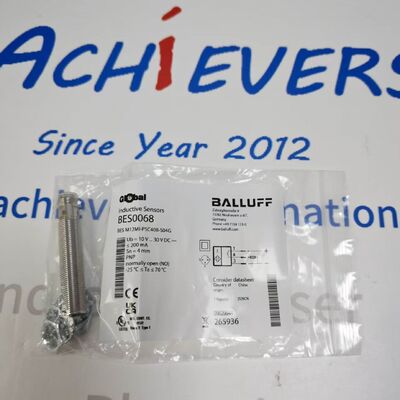

Balluff BES M12MI-PSC40B-S04G inductive proximity sensor — M12 × 1 shielded, 4 mm flush sensing range, PNP NO 3-wire, 10–30 V DC, M12 × 1 4-pin plug. Stainless steel housing, IP67.

Product Overview

The Balluff BES M12MI-PSC40B-S04G​ (Order Code: BES02L3 / BES00C8 depending on regional catalog) is a standard M12 inductive proximity switch​ for non-contact detection of ferrous metal targets. It features a shielded (flush-mountable) M12 × 1 mm brass/nickel-plated or stainless steel barrel, 4 mm nominal sensing range when flush-mounted, and a PNP Normally Open (NO) 3-wire DC output. Connection is via an integral or matching M12 × 1, 4-pin A-coded male connector (S04G = M12 plug, 4-pin, straight)​ — cable version would be "-C-...". Operating voltage is 10–30 V DC​ with short-circuit, reverse-polarity, and overload protection. LED indicator shows switching status. Suitable for conveyor, packaging, and general machine automation.

Technical Specifications (Electrical & Sensing)

Parameter
Specification
Order Number (Balluff)​
BES M12MI-PSC40B-S04G​ (Global Type — Catalog Ref. often BES02L3)
Sensor Type​
Inductive Proximity Switch — 3-Wire DC
Nominal Sensing Range (Sn)​
4 mm​ (flush / shielded mounting)
Assured Operating Distance (Sa)​
0 … 3.2 mm (≤ 80 % Sn)
Output Type​
PNP (sourcing), Normally Open (NO)​ — 3-wire (Brown +24V, Blue 0V, Black signal)
Switching Frequency (f)​
≤ 2000 Hz​
Operating Voltage (Ub)​
10 … 30 V DC​
No-Load Current (typ.)​
≤ 10 mA
Max. Output Current (Ie)​
200 mA​ (short-circuit protected)
Voltage Drop (max.)​
≤ 2 V DC @ Ie
Hysteresis​
≤ 5 % of Sn (typical)
Repeat Accuracy​
≤ 1 % of Sn

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Thread / Housing​
M12 × 1 mm​ — Shielded (Flush-mountable)
Housing Material​
Brass, nickel-plated (standard) — some variants: Stainless Steel 1.4305 (AISI 303)
Sensing Face Material​
PBT (Polybutylene Terephthalate), black
Overall Length​
Approx. 55–60 mm​ (standard M12 short body ~45 mm + connector overhang depends on plug style)
Connection Type​
M12 × 1, 4-pin A-coded Male Plug (Straight — S04G code)​ — mating socket cable/cordset ordered separately
LED Indicator​
Yellow LED — ON = target detected
Degree of Protection​
IP67 (IEC 60529), IP69K optional on stainless variant — verify per sub-type​
Operating Temp.​
-25 … +70 °C​
Shock / Vibration​
30 g (11 ms) / 55 Hz … 2 kHz, 1 mm amplitude (IEC 60068-2)
EMC Compliance​
EN 60947-5-2
Approvals​
CE, cULus listed, EAC
Weight (Approx.)​
30 g

Key Features

  • Flush-Mountable (Shielded):​ Can be installed flush with metal surfaces without reducing sensing range due to neighboring ferrous material — simplifies mechanical design.
  • High Switching Frequency (2 kHz):​ Detects fast-moving parts on high-speed conveyors or rotary indexing tables.
  • PNP NO 3-Wire Standard:​ Industry-default for European and Asian machinery — directly interfaces with most PLC digital inputs.
  • M12 A-Coded 4-Pin Plug (S04G):​ Quick-disconnect — no field soldering; use standard M12 4-pin female cordset (e.g. Balluff BCC...).
  • Rugged Metal Barrel:​ Nickel-plated brass withstands mechanical impact and coolant/oil splashes in shop-floor environments.

Typical Applications

  • Conveyor Part Detection:​ Verify presence/absence of pallets, cans, bottles, or metal stamped parts on transport lines.
  • Machine Tool Position Check:​ Confirm fixture clamped, guard closed, or slide at home position before cycle start.
  • Automation Indexing:​ Count metallic tabs or detect cylinder end-position via embedded metal target.
  • Packaging Machinery:​ High-speed product-in-place verification prior to sealing/labeling.
Code Decode: BES = Balluff Inductive Sensor | M12MI = M12 threaded, shielded (flush), metal housing | PSC40B = PNP NO, 4 mm range, 10–30 V DC, short-circuit protected | S04G = Connector M12 × 1, 4-pin A-coded, straight male plug (pigtail/cable would be e.g. -C- with length). Mating cordset example: Balluff BCC M323-0000-1A-004-XF2434-030 (M12 4-pin F to open ends, 3 m). For NPN version see BES M12MI-NSC40B-S04G.
