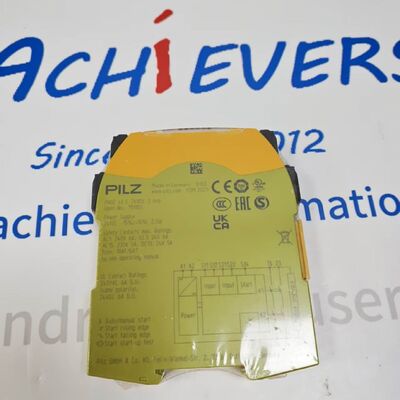

Pilz PNOZ s3 750103 | Safety Relay 24V DC, 2 NO + 1 NC Aux, DIN Rail, EN ISO 13849-1 PL e, SIL CL 3

Pilz PNOZ s3 750103 | Safety Relay 24V DC, 2 NO + 1 NC Aux, DIN Rail, EN ISO 13849-1 PL e, SIL CL 3
Pilz PNOZ s3 750103 | Safety Relay 24V DC, 2 NO + 1 NC Aux, DIN Rail, EN ISO 13849-1 PL e, SIL CL 3

Large Image :  Pilz PNOZ s3 750103 | Safety Relay 24V DC, 2 NO + 1 NC Aux, DIN Rail, EN ISO 13849-1 PL e, SIL CL 3 Get Best Price

Product Details:
Place of Origin: DE
Brand Name: PILZ
Certification: ATEX
Model Number: PNOZ s3 C 24VDC 2 no
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

PNOZ s3 safety relay 24V DC

,

DIN rail safety relay 2 NO

,

Safety relay SIL CL 3

Pilz PNOZ s3 750103 | Safety Relay 24V DC, 2 NO + 1 NC Aux, DIN Rail, EN ISO 13849-1 PL e, SIL CL 3
Pilz PNOZ s3 (Art. No. 750103) configurable safety relay — 24 V DC supply, 2 NO safety contacts + 1 NC auxiliary, manual/auto reset, EN ISO 13849-1 PL e, SIL CL 3. For E-STOP, guard monitoring, light curtain.

Product Overview

The Pilz PNOZ s3 (Article No. 750103)​ is a compact configurable safety relay​ from the PNOZ sigma (PNOZ s) series, designed for monitoring emergency stop (E-STOP) pushbuttons, safety gates, light curtains, and two-hand controls. It operates from a 24 V DC supply (20.4–26.4 V DC)​ and provides 2 positively driven safety output contacts (NO — make on safe state)​ plus 1 auxiliary NC contact (signaling). The unit supports manual reset (default) or automatic reset (selectable via DIP switch)​ and includes semiconductor short-circuit detection (EDM — External Device Monitoring). It achieves EN ISO 13849-1 Category 4 / PL e​ and IEC 62061 SIL CL 3 / IEC 61508 SIL 3. Width is 22.5 mm​ — mounts on a standard 35 mm DIN rail.

Technical Specifications (Electrical & Safety)

Parameter
Specification
Article / Order No.​
750103​ — PNOZ s3 C 24VDC 2n/o
Series​
Pilz PNOZ sigma (PNOZ s) — Compact Safety Relays
Supply Voltage (Us)​
24 V DC​ (Range 20.4 … 26.4 V DC, reverse-polarity protected)
Current Consumption (typ.)​
≈ 60 mA @ 24 V DC (no load, relays de-energized)
Safety Inputs​
1 × dual-channel (A1/A2 start; S11/S12+S21/S22 safety loop) — accepts N/C contact inputs
Safety Outputs (Positively Driven)​
2 × NO (make contacts) — rated 6 A @ 230 V AC / 24 V DC (resistive)​
Auxiliary Output​
1 × NC (break contact) — for diagnostic signaling, 6 A max.​
Reset Type​
Manual Reset (default) / Automatic Reset — selectable via DIP switch​
EDM (External Device Monitoring)​
Yes — configurable via DIP switch
Start-Up / Response Time​
≤ 30 ms (safety circuit closed → outputs pick up)
Performance Level (EN ISO 13849-1)​
Category 4 / PL e​
SIL Rating (IEC 62061 / IEC 61508)​
SIL CL 3 / SIL 3​

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Width (per DIN module)​
22.5 mm​ (compact sigma format)
Height / Depth​
98 mm / 114 mm (behind DIN rail)
Mounting​
35 mm DIN Rail (EN 60715 / TS 35)​ — snap-on with release latch
Terminals​
Cage-clamp spring terminals — solid 0.2–2.5 mm² / stranded 0.2–1.5 mm²
Degree of Protection​
IP20 (finger-safe when installed in enclosure)
Operating Temperature​
-10 … +55 °C​
Storage Temperature​
-25 … +85 °C
Humidity​
5–95 % RH, non-condensing
Weight (Approx.)​
0.16 kg
Certifications​
CE, cULus (NRTL), TÜV, CCC, EAC, KOSHA
Conformance Standards​
EN ISO 13849-1, IEC 61508, IEC 62061, EN 60204-1

Key Features

  • PL e / SIL 3 Certified:​ Suitable for highest-demand safety functions — E-STOP, guard interlocking, muting, light curtain with OSSD.
  • Dual-Channel Input with Cross-Fault Detection:​ Monitors for short between input channels and wiring faults — forces unsafe state if detected.
  • Manual / Auto Reset + EDM:​ Flexibly matches machine start-up philosophy; EDM verifies correct functioning of downstream contactors.
  • Compact 22.5 mm Width:​ Saves DIN rail space vs. classic PNOZ 1/2 series (45 mm).
  • LED Diagnostics:​ Power (green), Safe State / Channel 1&2 (green), Fault (red) — quick troubleshooting.

Typical Applications

  • Emergency Stop Circuits:​ Monitoring E-STOP pushbuttons per EN ISO 13850 — ensures controlled machine stop.
  • Safety Gate / Interlock Monitoring:​ With positively guided door switches (e.g. PSENmag / PSENmech) — prevents access until hazard cleared.
  • Light Curtain / Laser Scanner Interface:​ Evaluating OSSD outputs from type 2/4 optoelectronic ESPE via external test pulse evaluation.
  • Two-Hand Control (Type III A/C):​ When used with appropriate input wiring and validation — see Pilz application note for Type III C with PNOZ s3 + PITgate.
PNOZ s3 variants: 750103 = 24V DC, 2 n/o + 1 NC aux (this item). Other common versions: 750104 = 24V DC 3 n/o, 750110 = 115V AC/DC 2 n/o, 750111 = 230V AC/DC 2 n/o. For configurable PNOZ s5/s6/s7 (more inputs/outputs, time delay, logic) see the PNOZ sigma modular range. PNOZ s3 is the direct successor to the classic PNOZ 1 (751001 etc.) in narrower 22.5 mm housing.
