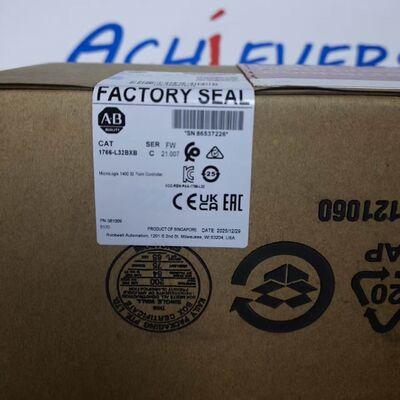

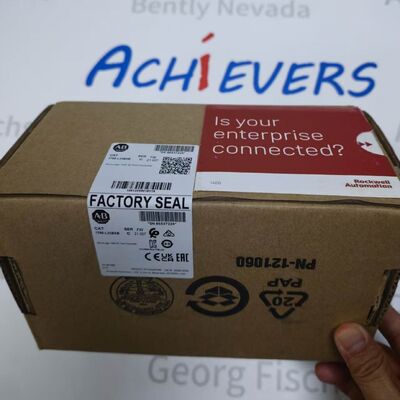

1766-L32BXB | MicroLogix 1400 CPU 24V DC, 20 DI / 12 DO (6R+6SS), Ethernet/IP

Large Image : 1766-L32BXB | MicroLogix 1400 CPU 24V DC, 20 DI / 12 DO (6R+6SS), Ethernet/IP Get Best Price

Product Details:

Place of Origin:	SG
Brand Name:	Allen‑Bradley
Certification:	ATEX
Model Number:	1766-L32BXB
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:	1	Ambient Temperature:	-
Electrical Rating:	G	Certifications:	S

1766-L32BXB | MicroLogix 1400 CPU 24V DC, 20 DI / 12 DO (6R+6SS), Ethernet/IP

1766-L32BXB MicroLogix 1400 PLC controller — 24V DC powered, 20 × 24V DC inputs (12 HS), 6 relay + 6 × 24V DC transistor outputs, built-in Ethernet/IP & RS-232/485, LCD display, expandable with 1762 I/O modules.

Product Overview

The 1766-L32BXB is a MicroLogix™ 1400 Series Programmable Logic Controller (PLC) CPU powered by 24 V DC. It provides 32 built-in I/O points: 20 digital inputs (12 high-speed + 8 standard 24 V DC sink/source) and 12 digital outputs (6 relay Form C + 6 solid-state 24 V DC sourcing transistors — 3 high-speed PTO/PWM + 3 standard). The controller includes an integrated 10/100 Mbps EtherNet/IP port (with embedded web server, email, Modbus TCP), one isolated RS-232/485 combo port, and one non-isolated RS-232 port supporting DF1, DH-485, Modbus RTU, ASCII, and DNP3 protocols. A backlit 2-line × 16-character LCD allows local monitoring and IP configuration. User memory is 10 KB program + 10 KB data (20 KB total), with support for up to 7 expansion 1762 I/O modules (max. 256 discrete I/O). Programming is via RSLogix™ 500 / RSLogix Micro.

Technical Specifications (Controller & I/O)

Parameter	Specification
Catalog Number	1766-L32BXB
Series	MicroLogix™ 1400
Power Supply	24 V DC (Nom. 20.4–26.4 V DC), typ. 300 mA @ 24 V DC
Digital Inputs	20 × 24 V DC Sink/Source — 12 HS (100 kHz HSC capable), 8 standard
Digital Outputs	6 × Relay (Form C, 2 A resistive) + 6 × 24 V DC SS Sourcing (3 HS PTO/PWM 100 kHz, 3 std.)
Embedded Analog I/O	None (use 1766-L32BXBA for analog version)
User Memory	10 KB User Program + 10 KB User Data (non-volatile Flash)
Data Log / Recipe	Up to 128 KB Data Log, 64 KB Recipe
High-Speed Functions	6 × 100 kHz HSC, 2 × 100 kHz PTO, 2 × 40 kHz PWM
Real-Time Clock	Built-in (battery-backed via supercap)

Technical Specifications (Communication & Mechanical)

Parameter	Specification
Communication Ports	1 × Ethernet 10/100 Mbps (EtherNet/IP, Modbus TCP, Web Server, Email) 1 × Isolated RS-232/485 (DF1, Modbus RTU, ASCII, DNP3) 1 × Non-Isolated RS-232 (DF1, DH-485)
Expansion Capability	Up to 7 × 1762 series I/O modules, max. 256 discrete / 64 analog I/O
Built-in Display	2 × 16 Backlit LCD — view/force I/O, messages, set IP, scroll data
Programming Software	RSLogix 500 / RSLogix Micro (v8.30+), RSLinx Classic
Operating Temp.	0 … +55 °C (32 … 131 °F)
Storage Temp.	-40 … +85 °C
Humidity	5–95 % RH, non-condensing
Mounting	35 mm DIN Rail (EN 50022) or panel mount
Dimensions (H × W × D)	90 × 180 × 87 mm (3.54″ × 7.09″ × 3.43″)
Weight (Approx.)	0.90–0.95 kg
Certifications	cULus Listed, CE, C-Tick, Class I Div 2 Groups A/B/C/D (T4A/T5)

Key Features

Built-In Ethernet/IP with Web Server: Peer-to-peer messaging, remote monitoring via browser, and email alerts — no add-on card required.
Mixed Output Types (Relay + DC SS): Six relay outputs for AC/DC loads and six 24 V DC sourcing transistor outputs (including 2 × 100 kHz PTO) in one unit.
Backlit LCD for Local Diagnostics: View I/O status, force bits, change timer presets, and assign IP address without a laptop.
Expandable Architecture: Add up to seven 1762 digital/analog/temperature I/O modules to scale from 32 to 288+ I/O points.
Online Editing: Modify ladder logic while the processor is in RUN mode — minimizes downtime during commissioning/tuning.

Typical Applications

OEM Packaging & Labeling Machines: Where mixed relay (pneumatic solenoid) and high-speed DC outputs (stepper/servo enable) are needed with compact footprint.
Conveyor & Material Handling Systems: Multi-protocol serial + Ethernet connectivity for integration into plant SCADA/MES.
Water/Wastewater Pump Stations: Class I Div 2 suitability, local LCD for field diagnostics, and Modbus RTU/TCP to master SCADA.
Building Automation / HVAC: Ethernet-enabled control of dampers, fans, and pumps with remote web access.
