Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body

Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body
Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body

Large Image :  Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body Get Best Price

Product Details:
Place of Origin: NL
Brand Name: YOKOGAWA
Certification: ATEX
Model Number: FU20-VP-T1-NPTFPS
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Yokogawa FU20 pH ORP sensor

,

VarioPin PPS body sensor

,

3/4 NPT Pt1000 sensor

Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body

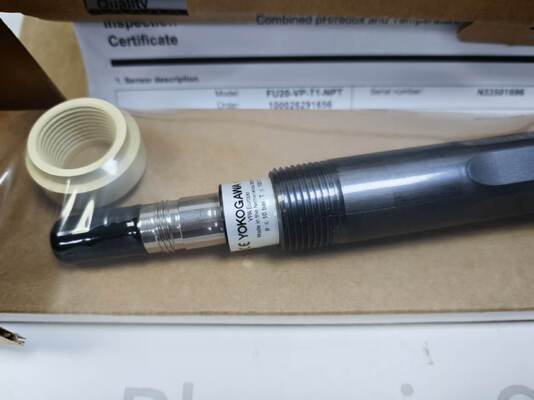

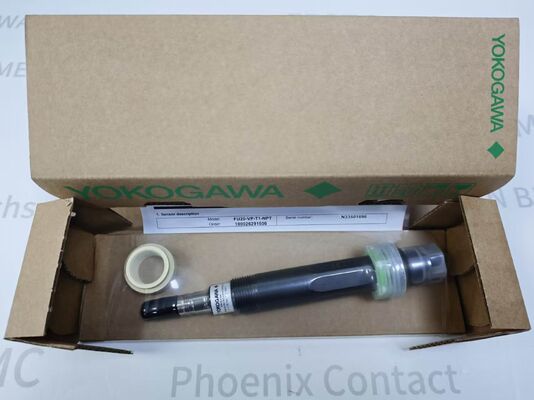

Yokogawa FU20-VP-T1-NPTFPS combination pH & ORP sensor with integral Pt1000, PPS (Ryton) body, 3/4" NPT tapered thread, VarioPin (VP) detachable connector. Gel-filled double-junction reference, dome pH glass. Compatible with FLXA21, PH400, SENCOM.

Product Overview

The Yokogawa FU20-VP-T1-NPTFPS​ is an all-in-one wide-body pH/ORP combination sensor​ from the FU20 series, designed for inline or immersion installation in wastewater and industrial process applications. It integrates four elements—pH glass electrode, Ag/AgCl double-junction reference, solid platinum ORP electrode, and Pt1000 RTD—in a single rugged PPS 40GF (Ryton®) body​ with 3/4" NPT male tapered thread​ for direct mounting. The -VP suffix​ indicates a VarioPin detachable multi-pin connector​ (no fixed cable; requires separate VP cable such as WU10 series), and -FPS​ denotes inclusion of the F*40 adapter (PPO). Enables simultaneous pH (0–14) and ORP (±1500 mV) measurement with temperature compensation, suitable for Yokogawa FLXA21, PH400 series, and SENCOM transmitters.

Technical Specifications (Measuring Elements & Electrical)

Parameter
Specification
Order Number​
FU20-VP-T1-NPTFPS​
Series​
Yokogawa FU20 All-in-One pH/ORP Sensor
Measured Parameters​
pH (0…14), ORP (±1500 mV), Temperature
pH Electrode​
Dome-shaped pH glass (G-glass)
Reference System​
Ag/AgCl with saturated KCl gel, Double liquid junction, Porous PTFE diaphragm
ORP Electrode​
Solid Platinum
Temperature Element​
Pt1000​ (IEC 751) — built-in for compensation
pH Slope (at 25°C)​
> 96 % of theoretical
Connection Type​
VarioPin (VP) — detachable multi-pin connector​ (cable ordered separately)

Technical Specifications (Mechanical & Process Conditions)

Parameter
Specification
Body Material​
PPS 40GF (Ryton® / Polyphenylene Sulfide), glass-filled
Process Connection​
3/4" NPT Male Tapered Thread​ (integral)
Sensor Diameter / Length​
Ø26 mm / Total length approx. 99 mm (insertion ~65 mm)
Sealing / O-ring​
Viton® (FKM)
Operating Temperature​
-10 … +105 °C​
Max. Process Pressure​
1.0 MPa (10 bar / 145 psig)​ @ ≤ 105 °C
Minimum Conductivity​
> 50 µS/cm
Included Accessory​
F*40 Adapter (PPO) — denoted by /FPS suffix
Calibration Certificate​
Supplied with each sensor

Key Features

  • Four-in-One Design:​ Single sensor body measures pH + ORP + Temperature + Reference—eliminates need for separate probes.
  • Double-Junction Gel Reference:​ Large-volume polymerized KCl with PTFE porous junction resists poisoning in dirty/wastewater—extends service life vs. single-junction designs.
  • VarioPin Detachable Connector (-VP):​ Allows sensor replacement without rewiring the transmitter; pin-coded to prevent misconnection.
  • Direct NPT Mount:​ 3/4" NPT thread screws straight into a tee, pipe, or immersion fitting—no special holder required.
  • Pt1000 Built-In:​ Provides accurate temperature compensation for pH and direct temp readout to the analyzer.

Typical Applications

  • Municipal / Industrial Wastewater:​ pH & redox monitoring in aeration basins, neutralization tanks, and effluent lines.
  • Chemical Process Lines:​ Simultaneous pH and ORP (e.g., chlorine control, cyanide destruction).
  • Food & Beverage / Pharmaceutical:​ CIP rinse verification (pH swing) and sanitization cycle ORP monitoring (verify chemical compatibility).
  • Cooling Tower / Boiler Blowdown:​ pH control loops with ORP trend monitoring.

Yokogawa FU20-VP-T1-NPTFPS | FU20 All-in-One pH/ORP Sensor, VarioPin, 3/4" NPT, Pt1000, PPS Body 0
