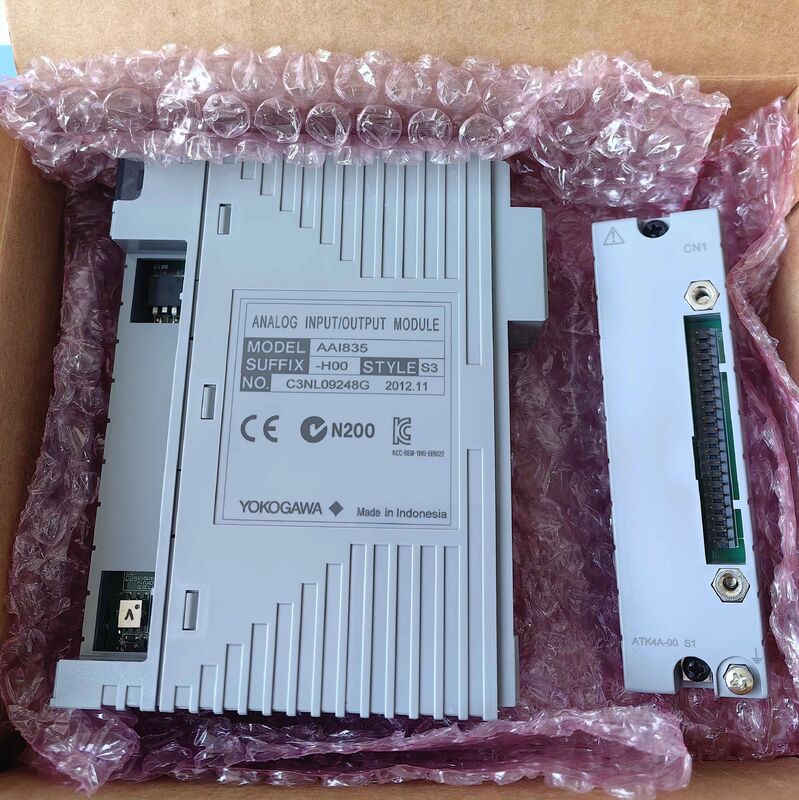

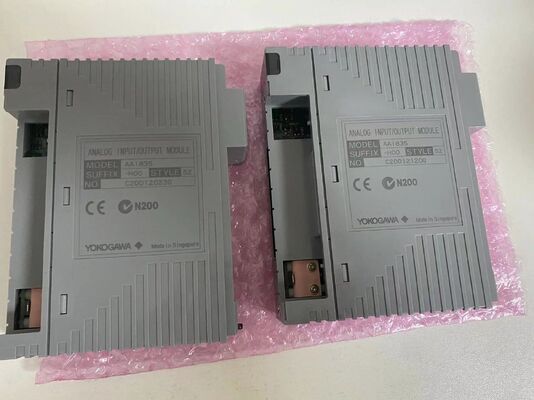

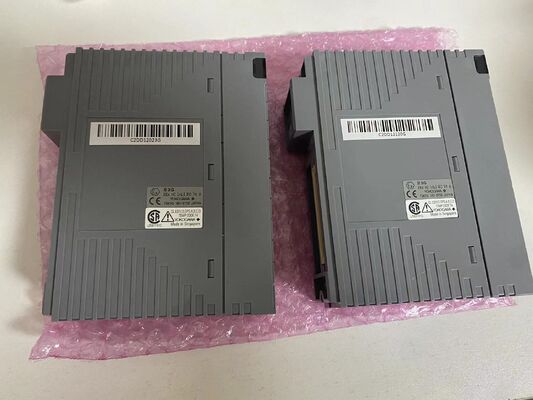

Yokogawa AAI835-H00 Isolator | 4-20mA, HART, Input/Output/Power Isolation

Large Image : Yokogawa AAI835-H00 Isolator | 4-20mA, HART, Input/Output/Power Isolation Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	Yokogawa
Certification:	ATEX
Model Number:	AAI835-H00
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Yokogawa AAI835-H00 isolator 4-20mA

HART isolator input output power

Yokogawa isolator with HART communication

Yokogawa AAI835-H00 Isolator | 4-20mA, HART, Input/Output/Power Isolation

Yokogawa AAI835-H00 isolator specifications. 4-20mA isolator with HART, triple isolation, input/output/power, DIN rail mount.

Product Overview

The Yokogawa AAI835-H00 is a universal signal isolator designed for demanding process control applications. It provides complete galvanic isolation between the input signal, output signal, and power supply. It accepts a 4-20mA input with HART communication and provides an isolated 4-20mA+HART output, effectively breaking ground loops, protecting systems from electrical noise, and ensuring signal integrity.

Technical Specifications

Parameter	Specification
Manufacturer	Yokogawa Electric Corporation
Model	AAI835-H00
Series	YTA/AAI Series (Isolator)
Product Type	Universal Signal Isolator (with HART)
Input Signal	4-20mA DC with HART Protocol
Output Signal	4-20mA DC with HART Protocol
Power Supply	20-55 V DC, Isolated
Isolation	Input/Output/Power: 1.5kV AC (Triple Isolation)
Accuracy	±0.1% of span
HART Support	Yes, full bidirectional HART communication
Ambient Temperature	-20 to 60°C (-4 to 140°F)
Load Capacity	0-500 Ω
Response Time	< 250 ms
Configuration	Local buttons or communication via HART handheld/configurator
Display	Optional LCD display module
Mounting	DIN Rail 35mm
Certifications	CE, cULus, ATEX, IECEx

Key Features

Triple Isolation: Complete galvanic isolation between input, output, and power supply
HART Signal Support: Transparently passes HART digital communication
High Accuracy: ±0.1% accuracy for precise signal transmission
Universal Power Supply: Wide-range 20-55V DC input
Flexible Configuration: Easy setup via local interface or HART communicator
Compact DIN Rail Mount: Space-saving design for control panels
Optional Display: Local LCD for monitoring input/output values and status
Ground Loop Elimination: Isolates different ground potentials to prevent noise and interference
System Protection: Protects sensitive control system I/O cards from field-side transients

Applications

Isolating 4-20mA+HART signals between field devices and DCS/PLC systems
Breaking ground loops in complex process control loops
Protecting control room equipment from hazardous area field devices
Signal distribution to multiple recording or control devices
General-purpose signal conditioning and isolation in refineries, chemical plants, and power generation

Important Notes

Requires a separate, isolated 20-55V DC power supply
Passes HART digital signals unchanged; does not function as a HART multiplexer
Ensure correct wiring of input, output, and power terminals to maintain isolation
The load capacity on the output must not be exceeded for proper operation
Configuration of input/output ranges may be required
