Product Overview

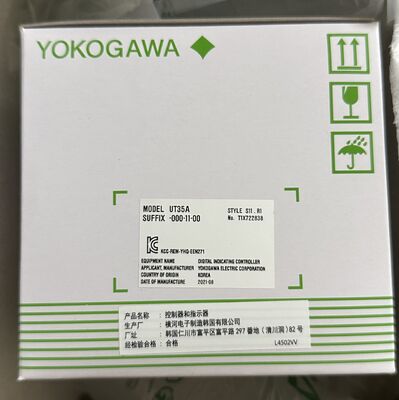

The Yokogawa UT35A-000-11-00 is a 1/4 DIN panel-mounted digital indicating controller designed for temperature and process control. It features a clear digital display, accepts a K-type thermocouple input, and provides PID control with a relay output. It is a versatile and cost-effective solution for applications such as ovens, furnaces, and environmental chambers.

Technical Specifications

Key Features

• Compact 1/4 DIN Design:​ Saves panel space while providing full functionality

• Dual LED Display:​ Shows Process Value (PV) and Set Value (SV) simultaneously

• PID Control:​ Ensures stable and accurate temperature regulation

• Flexible Alarm:​ One assignable alarm relay for process monitoring or interlock

• Universal Power Supply:​ 100-240V AC for worldwide use

• Rugged Front Panel:​ IP66 rating for protection against dust and water spray

• Easy Operation:​ Simple front-panel keypad for setup and adjustment

• Heater Break Alarm:​ Optional function (may require additional module)

Applications

• Temperature control for industrial ovens, furnaces, and dryers

• Plastic processing machinery

• Packaging machine heat seal control

• Environmental test chambers

• Food processing and cooking equipment

Important Notes

1. The input is specifically for K-type thermocouples; ensure sensor compatibility

2. The control relay is for switching contactors or heaters; verify load current does not exceed 3A resistive

3. The alarm relay is a separate contact that can be used for annunciation or safety interlocks

4. PID parameters may require tuning for optimal performance with the specific process

5. For communication, an optional communication module (e.g., B9901AX00) is required
