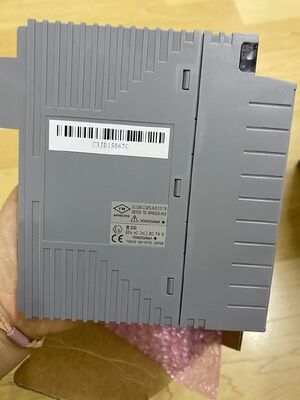

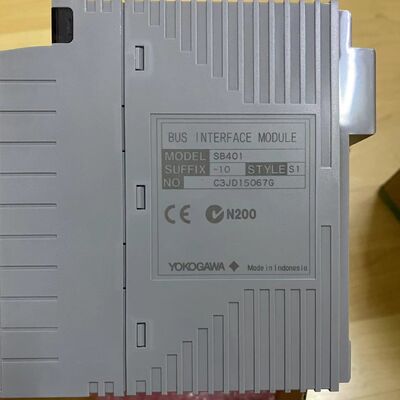

YOKOGAWA SB401-10 S1 Signal Conditioner | Isolator, 4-20mA, 24V DC, DIN Rail

Large Image : YOKOGAWA SB401-10 S1 Signal Conditioner | Isolator, 4-20mA, 24V DC, DIN Rail Get Best Price

Product Details:

Place of Origin:	ID
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	SB401-10 S1
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Yokogawa SB401-10 signal conditioner

4-20mA signal isolator DIN rail

24V DC signal conditioner isolator

YOKOGAWA SB401-10 S1 Signal Conditioner | Isolator, 4-20mA, 24V DC, DIN Rail

YOKOGAWA SB401-10 S1 signal conditioner specifications. Isolator/converter, 4-20mA input/output, 24V DC power, DIN rail mount.

Product Overview

The YOKOGAWA SB401-10 S1 is a signal conditioner from the SB400 series. It provides galvanic isolation and signal conversion for 4-20mA DC current loops. The unit accepts a 4-20mA input signal and reproduces a proportional, isolated 4-20mA output signal. It is powered by a 24V DC supply and is housed in a compact, DIN rail-mountable enclosure suitable for industrial control panels.

Technical Specifications

Parameter	Specification
Manufacturer	YOKOGAWA Electric Corporation
Series	SB400 Series
Model	SB401-10 S1
Product Type	DC Isolator / Signal Conditioner
Input Signal	4-20 mA DC
Input Resistance	50 Ω
Output Signal	4-20 mA DC
Maximum Load Resistance	600 Ω (at 24V DC supply)
Output Accuracy	±0.1% of span
Response Time	≤ 200 ms (0-90%)
Isolation	2000 V AC (1 minute) — input/output/power
Power Supply	24V DC ±10%
Current Consumption	≤ 80 mA
Status Indicator	LED (power on)
Mounting	35 mm DIN rail
Housing Material	Flame-retardant resin (UL94 V-0)
Dimensions (W × H × D)	23 × 90 × 108 mm
Weight	Approx. 150 g
Ambient Temperature	0 to 55°C (32 to 131°F)
Certifications	CE

Key Features

1:1 Current Signal Transmission: 4-20 mA input to 4-20 mA output with high linearity
High Isolation: 2000V AC isolation between input, output, and power circuits
Compact, Space-Saving Design: 23 mm wide housing maximizes panel density
DIN Rail Mounting: Standard 35 mm rail for fast installation
LED Power Indicator: Visual confirmation of operating status
Wide Load Drive Capability: 600Ω maximum load at 24V supply
Reliable Accuracy: ±0.1% span for consistent signal fidelity
Low Power Consumption: ≤80 mA from 24V DC supply

Applications

Breaking ground loops in 4-20mA signal circuits
Providing galvanic isolation between field instruments and control systems (PLC, DCS, recorder)
Signal conversion and impedance matching
Protecting sensitive input modules from electrical noise and surges

Important Notes

This unit requires a 24V DC external power supply (not included).
The "S1" suffix indicates the specific version or calibration option.
Input and output ranges are fixed to 4-20mA; zero/span adjustments are not provided.
Mounting orientation should allow adequate airflow for cooling.
The unit is non-reversible; input and output terminals are fixed.
