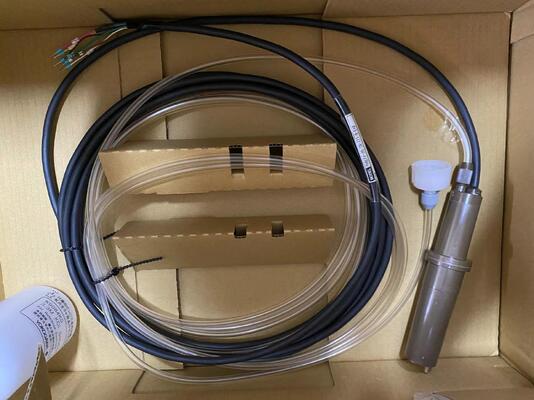

YOKOGAWA PH8EFP-05-TN-TT1-N-EACN pH/ORP Sensor | PEEK Body, 3/4" NPT, Pt100, Preamplifier, Ceramic Junction

Large Image : YOKOGAWA PH8EFP-05-TN-TT1-N-EACN pH/ORP Sensor | PEEK Body, 3/4" NPT, Pt100, Preamplifier, Ceramic Junction Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	PH8EFP-05-TN-TT1-N-EACN
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

YOKOGAWA pH sensor PEEK body

pH ORP sensor ceramic junction

3/4 NPT pH sensor Pt100

YOKOGAWA PH8EFP-05-TN-TT1-N-EACN pH/ORP Sensor | PEEK Body, 3/4" NPT, Pt100, Preamplifier, Ceramic Junction

YOKOGAWA PH8EFP-05-TN-TT1-N-EACN sensor specifications. pH/ORP combination electrode, PEEK body, 3/4" NPT, integrated Pt100, preamplifier, ceramic junction.

Product Overview

The YOKOGAWA PH8EFP-05-TN-TT1-N-EACN is a high-performance combination pH or ORP (Redox) electrode designed for demanding industrial process applications. It features a rugged PEEK (Polyetheretherketone) body, a 3/4" NPT process connection, an integrated Pt100 temperature sensor, and a built-in preamplifier. The suffix "EACN" specifies advanced features including a ceramic double junction reference system for enhanced chemical resistance and long-term stability.

Technical Specifications

Parameter	Specification
Manufacturer	YOKOGAWA Electric Corporation
Series	PH8EFP Series
Model	PH8EFP-05-TN-TT1-N-EACN
Product Type	Combination pH/ORP Electrode with Temp. Sensor & Preamplifier
Measurement	pH or ORP (Redox)
Body Material	PEEK (Polyetheretherketone)
Process Connection	3/4" NPT
pH Range	0 to 14 pH
ORP Range	-1500 to 1500 mV
Temperature Range	0 to 100°C (32 to 212°F)
Pressure Range	0 to 0.5 MPa (0 to 73 psi) at 100°C
Temperature Sensor	Pt100 (Class A, 3-wire)
Preamplifier	Integrated (for long-distance signal transmission)
Reference System	Pressurized, double junction, ceramic
Junction Type	Ceramic (double junction)
Cable Connection	Integral cable with waterproof DIN connector
Wetted Materials	PEEK, Glass or Platinum, Ceramic, PTFE
Certifications	CE

Key Features

Double Junction Ceramic Reference: Reduces reference poisoning, extends sensor life in contaminated media
Integrated Preamplifier: Converts high-impedance pH signal; allows cable runs up to 100m
Built-in Pt100: Precision temperature sensor for automatic temperature compensation (ATC)
Rugged PEEK Construction: Excellent chemical and mechanical resistance for harsh processes
Pressurized Reference: Maintenance-free, gel-filled reference system
3/4" NPT Connection: Standard industrial threaded connection for easy installation
Complete System: Ready for direct connection to YOKOGAWA pH/ORP analyzers (e.g., FLXA21, PH202G)
Wide Application: Suitable for both pH and ORP measurement (electrode type dependent)

Applications

Chemical process pH/ORP monitoring (acids, bases, oxidizers)
Wastewater treatment, especially in media prone to reference poisoning
Pulp and paper bleaching and chemical recovery
Mining and metal plating bath monitoring
Food and beverage processing with demanding cleaning cycles

Important Notes

This sensor requires a compatible YOKOGAWA pH/ORP analyzer/transmitter (e.g., FLXA21, PH202) to operate.
The "-EACN" suffix denotes the integrated preamplifier and the double junction ceramic reference system.
The sensor is available in both pH glass and ORP platinum tip versions; verify ordering code.
The ceramic double junction is ideal for media containing sulfides, proteins, or heavy metals that can poison standard reference electrodes.
Regular calibration and cleaning are essential for maintaining accuracy.

YOKOGAWA PH8EFP-05-TN-TT1-N-EACN pH/ORP Sensor | PEEK Body, 3/4" NPT, Pt100, Preamplifier, Ceramic Junction 0
