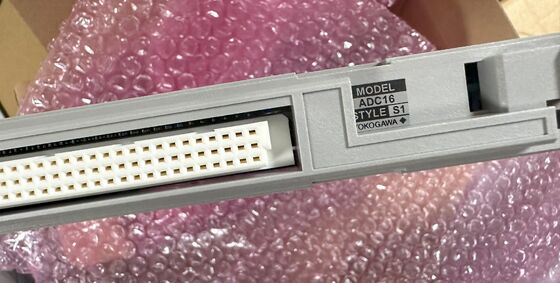

YOKOGAWA ADC16-S1 Data Acquisition Unit | 16-Channel, Universal Input, Ethernet, USB, Standalone

Large Image : YOKOGAWA ADC16-S1 Data Acquisition Unit | 16-Channel, Universal Input, Ethernet, USB, Standalone Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	ADC16-S1
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Yokogawa ADC16-S1 data acquisition unit

16-channel universal input data logger

Ethernet USB standalone data acquisition

YOKOGAWA ADC16-S1 Data Acquisition Unit | 16-Channel, Universal Input, Ethernet, USB, Standalone

YOKOGAWA ADC16-S1 DAQ unit specifications. 16-channel data acquisition unit, universal analog/digital input, Ethernet, USB, standalone, for data logging.

Product Overview

The YOKOGAWA ADC16-S1 is a compact, standalone data acquisition unit designed for multi-channel data logging and monitoring. It features 16 universal input channels that can be configured for a variety of analog and digital signals, including thermocouples, RTDs, voltage, and current. The unit includes Ethernet and USB connectivity for data transfer, configuration, and integration into network systems, operating independently without a PC.

Technical Specifications

Parameter	Specification
Manufacturer	YOKOGAWA Electric Corporation
Series	ADC Series (Standalone DAQ)
Model	ADC16-S1
Product Type	Standalone Data Acquisition Unit
Number of Channels	16 universal input channels
Input Types	TC (J, K, T, E, R, S, B, N, PLII, W), RTD (Pt100, JPt100), DC Voltage (±60 mV to ±50 V), DC Current (0-20 mA, 4-20 mA)
Scan Speed	100 ms / 16 channels (max)
Internal Memory	2 MB (for standalone data logging)
Communication Interfaces	Ethernet (10BASE-T/100BASE-TX), USB 2.0
Display	Monochrome LCD with backlight
Power Supply	100-240 V AC, 50/60 Hz
Operating Temperature	0 to 50°C (32 to 122°F)
Dimensions (W x H x D)	210 × 90 × 180 mm
Certifications	CE, cULus

Key Features

16 Universal Inputs: High flexibility to mix sensor types (TC, RTD, V, mA) on a single unit
Standalone Operation: Can record data to internal memory without a connected PC
Ethernet & USB Connectivity: For remote monitoring, configuration, and data retrieval
Large Internal Memory: 2 MB capacity for extended logging periods
Easy Configuration: Setup via front panel keys or PC software
Scalable Alarm Function: Configurable alarms per channel with relay output (optional)
Compact Design: Saves bench or panel space
Wide Range Power Supply: 100-240V AC for global use

Applications

Multi-point temperature monitoring in laboratories and industrial processes
Environmental chamber and oven data logging
Energy management and sub-metering
Equipment performance testing and validation
Standalone data acquisition for R&D and quality control

Important Notes

The unit supports a mix of input types; each channel's type must be configured individually.
Internal memory is used for standalone logging; for continuous data streaming, a PC connection is required.
An optional relay output unit is available for alarm functions.
Configuration software (e.g., Yokogawa DAQSTATION) is used for advanced setup and data analysis.
The scan rate applies to all enabled channels; individual channel sampling is sequential.
