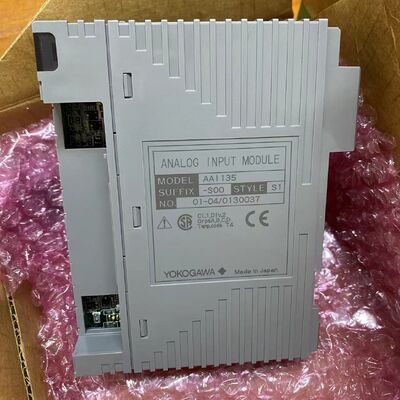

YOKOGAWA AAI135-S00 AI Module | 8-Channel, 4-20mA, 24V DC, for Stardom Controller

Large Image : YOKOGAWA AAI135-S00 AI Module | 8-Channel, 4-20mA, 24V DC, for Stardom Controller Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	AAI135-S00
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

YOKOGAWA AAI135-S00 AI module

8-channel 4-20mA AI module

Stardom controller compatible AI module

YOKOGAWA AAI135-S00 AI Module | 8-Channel, 4-20mA, 24V DC, for Stardom Controller

YOKOGAWA AAI135-S00 module specifications. Analog input module, 8 channels, 4-20mA, 24V DC, for Stardom network-based controller.

Product Overview

The YOKOGAWA AAI135-S00 is an analog input module designed for the Stardom network-based control system. It provides 8 isolated input channels for receiving 4-20mA current signals from field transmitters. The module mounts on a Stardom base unit and communicates via the high-speed controller backplane, enabling scalable I/O expansion for process monitoring and control applications.

Technical Specifications

Parameter	Specification
Manufacturer	YOKOGAWA Electric Corporation
Series	Stardom Series
Model	AAI135-S00
Product Type	Analog Input Module
System Compatibility	Stardom (FCN/FCJ) Network-based Controller
Number of Channels	8
Input Signal	4-20 mA DC
Input Resistance	250 Ω
Conversion Speed	10 ms/ch (when all channels are used)
Accuracy	±0.1% of span
Isolation	Channel-to-channel isolated
Power Supply	24V DC (via base unit backplane)
Current Consumption	120 mA (5V DC via backplane)
External Connection	Via terminal block on base unit
Status Indicators	LED per channel (communication, error)
Operating Temperature	0 to 55°C (32 to 131°F)
Certifications	CE, cULus

Key Features

8 Isolated Inputs: Each channel is individually isolated for noise immunity
High Accuracy: ±0.1% of span for precise measurement
Fast Conversion: 10 ms per channel scan time
Scalable I/O: Expands the analog input capacity of Stardom controllers
Easy Installation: Plug-in module for Stardom base unit
LED Diagnostics: Per-channel status indication for quick troubleshooting
Robust Design: Built for industrial environments
Direct Compatibility: Part of the Stardom system architecture

Applications

Multi-point analog signal acquisition in Stardom control systems
Monitoring pressure, flow, level, and temperature transmitters
Process data collection for SCADA and HMI systems
Distributed I/O in factory and plant automation

Important Notes

This module requires a compatible Stardom base unit (e.g., ANB10, ANB11) and a Stardom controller (FCN/FCJ) for operation.
External 24V DC loop power for 2-wire transmitters is not provided by this module; an external supply is required.
Configuration is performed using the Stardom system engineering tool (e.g., PRM).
The module does not include a terminal block; connections are made to the terminals on the base unit.
Ensure total system I/O count and backplane power budget are within the controller's specifications.
