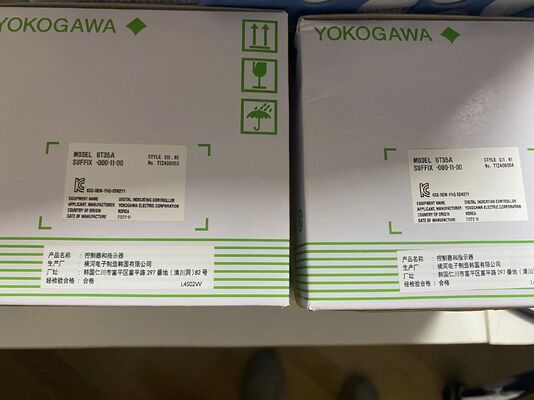

YOKOGAWA UT35A-000-11-00 Temperature Controller | 1/4 DIN, PID, K Thermocouple, Relay Output

YOKOGAWA UT35A-000-11-00 Temperature Controller | 1/4 DIN, PID, K Thermocouple, Relay Output

YOKOGAWA UT35A-000-11-00 controller specifications. 1/4 DIN temperature controller, K thermocouple input, relay output, PID control, panel mount.

Product Overview

The YOKOGAWA UT35A-000-11-00 is a 1/4 DIN indicating controller from the UT35A series, configured for temperature control. It accepts a K-type thermocouple input, provides PID control with a relay output, and includes a separate relay for alarm functions. The controller features a clear dual LED display and is designed for panel mounting in industrial heating applications such as ovens, furnaces, and environmental chambers.

Technical Specifications

Key Features

• K-Type Thermocouple Input:​ Standard configuration for common temperature sensing

• Dual Relay Outputs:​ One for control action, one for alarm

• Compact 1/4 DIN Design:​ Fits standard panel cutouts

• Dual LED Display:​ Shows Process Value and Set Value simultaneously

• PID Control:​ Ensures stable temperature regulation

• IP66 Front Panel:​ Protected against dust and water spray

• Universal Power Supply:​ 100-240V AC for worldwide use

• Easy Setup:​ Simple configuration via front-panel keys

Applications

• Temperature control for industrial ovens, furnaces, and dryers

• Plastic processing machinery

• Packaging machine heat seal control

• Food processing equipment

• Environmental test chambers

Important Notes

1. The input is configured for K-type thermocouples; verify sensor compatibility.

2. Relay ratings are typically 250V AC, 3A resistive; ensure the connected load (e.g., contactor) is within specifications.

3. The alarm relay is configurable for various functions (high/low limit, deviation).

4. For communication, an optional communication module is required.

5. Auto-tuning (AT) function is available to calculate optimal PID parameters.
