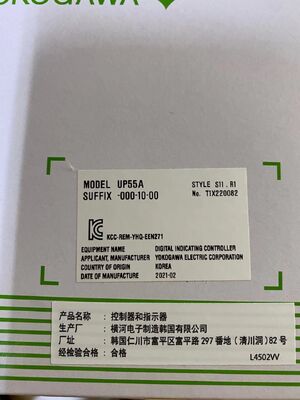

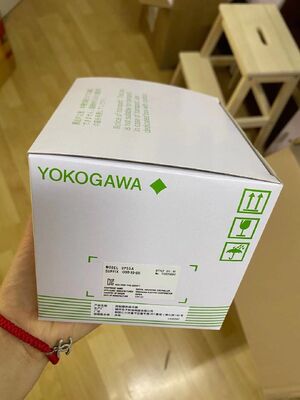

YOKOGAWA UP55A-000-10-00 Programmable Controller | 1/8 DIN, Universal Input, Relay Output, PID, Ramp/Soak

Large Image : YOKOGAWA UP55A-000-10-00 Programmable Controller | 1/8 DIN, Universal Input, Relay Output, PID, Ramp/Soak Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	UP55A-000-10-00
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Yokogawa UP55A programmable controller

1/8 DIN PID controller

universal input relay output controller

YOKOGAWA UP55A-000-10-00 Programmable Controller | 1/8 DIN, Universal Input, Relay Output, PID, Ramp/Soak

YOKOGAWA UP55A-000-10-00 controller specifications. 1/8 DIN programmable controller, universal input, relay output, PID, ramp/soak, panel mount.

Product Overview

The YOKOGAWA UP55A-000-10-00 is a 1/8 DIN programmable indicating controller from the UP55A series. It features universal input capability, accepting thermocouple, RTD, or analog signals, and provides PID control with a relay output. The "000-10-00" suffix indicates a standard configuration. This advanced controller supports sophisticated control strategies like ramp/soak programming, making it suitable for complex thermal processes.

Technical Specifications

Parameter	Specification
Manufacturer	YOKOGAWA Electric Corporation
Series	UP55A Series (Programmable Controller)
Model	UP55A-000-10-00
Product Type	1/8 DIN Programmable Indicating Controller
Panel Cutout	45 × 92 mm
Input Type	Universal (TC, RTD, Voltage, Current)
Control Output	Relay (SPDT)
Control Functions	PID, Ramp/Soak, ON/OFF
Program Capacity	Multiple segments (e.g., 16 segments)
Display	Dual 4-digit, 7-segment LED (PV & SV)
Power Supply	100-240V AC, 50/60Hz
Number of Alarms	2 (assignable)
Alarm Outputs	2 Relays (SPDT)
Communication	Optional (RS-485)
Ambient Temperature	0 to 50°C (32 to 122°F)
Front Panel Rating	IP66 (NEMA 4X)
Certifications	CE, cULus

Key Features

Universal Input: Configurable for various sensor types (TC, RTD, V, mA)
Ramp/Soak Programming: Enables complex time-temperature profiles
Dual Alarm Relays: Two fully configurable SPDT alarm outputs
Compact 1/8 DIN Design: Saves panel space
Dual LED Display: Shows Process Value and Set Value
Advanced PID Control: Includes auto-tuning and adaptive gain
IP66 Front Panel: Protected against dust and water
Event Inputs: Supports external events for program control
Data Backup: Program and parameters stored in non-volatile memory

Applications

Heat treatment furnaces (annealing, tempering)
Environmental test chambers with complex profiles
Plastic molding and curing processes
Kilns and ceramic firing
Laboratory and research equipment requiring programmed temperature cycles

Important Notes

The input type and range must be configured by the user based on the connected sensor.
Relay ratings are typically 250V AC, 3A resistive; verify load compatibility.
Ramp/Soak programs are created using the front panel or optional configuration software.
For communication, an optional communication module (e.g., UP55A-COMM) is required.
This is an advanced controller; proper setup of control parameters and programs is essential for optimal performance.
