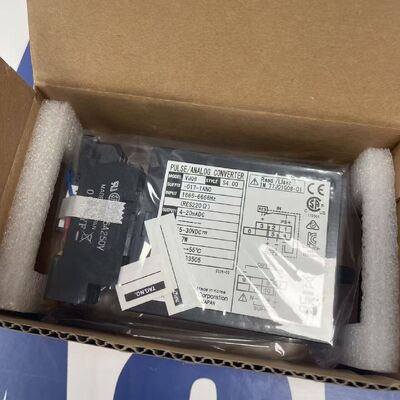

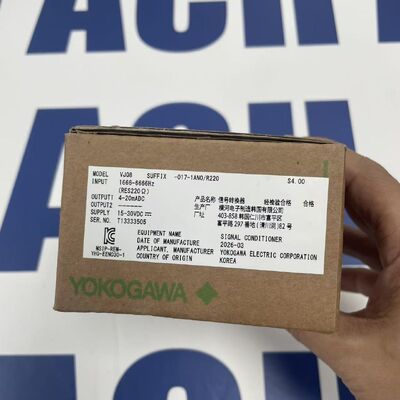

YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω

Large Image : YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	YOKOGAWA
Certification:	ATEX
Model Number:	VJQ8-017-1AN0R220
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Yokogawa pulse isolator 4-20mA

analog isolator 220Ω resistance

Yokogawa isolator with warranty

YOKOGAWA VJQ8-017-1AN0R220 | Pulse/Analog Isolator, 4-20mA, 220Ω

YOKOGAWA VJQ8-017-1AN0R220 signal conditioner. Converts frequency/pulse to 4-20mA, 15-30V DC power, 220Ω shunt resistor, 76x29.5x124.5mm.

Product Overview

The YOKOGAWA VJQ8-017-1AN0R220 is a microprocessor-based frequency/pulse to analog converter from the JUXTA VJ series. It features single-channel isolation and converts a frequency or pulse input into a standard 4-20 mA DC analog output. This model is powered by 15-30V DC and includes a built-in 220 Ω shunt resistor (denoted by /R220) for current loop applications. Its compact, plug-in design is used for signal conditioning and isolation in process control systems.

Technical Specifications (Electrical & I/O)

Parameter	Specification
Model Code	VJQ8-017-1AN0R220
Function	Frequency / Pulse to Analog Converter
Input Signal	Frequency, Pulse (Open Collector, etc.)
Output Signal	4-20 mA DC (Isolated)
Power Supply	15 ... 30 V DC (±20%)
Transmitter Supply	24 V DC ±10% (for 2-wire sensor)
Shunt Resistor	220 Ω (Internal, Fixed)
Isolation	Input/Output/Power 3-way Isolation

Technical Specifications (Physical & Environmental)

Parameter	Specification
Housing Series	JUXTA VJ (Plug-in Type)
Dimensions (HxWxD)	76 mm x 29.5 mm x 124.5 mm
Operating Temperature	-10 °C ... +55 °C
Storage Temperature	-25 °C ... +70 °C
Ambient Humidity	10 ... 90% RH (Non-condensing)
Mounting	DIN Rail (35 mm)
Standards	CE, UL, CSA (Note: Check local approval status)
Configuration	PC (VJ77) or Handheld Terminal (JHT200)

Key Features

Signal Conversion: Converts frequency or pulse signals (e.g., from flow meters, tachometers) into a standardized 4-20 mA process signal.
Built-in Resistor: The /R220 option provides an internal 220 Ω shunt resistor, simplifying loop configuration without external components.
Compact Isolation: Provides 3-way isolation (Input/Output/Power) in a slim 29.5mm wide housing, saving panel space.

Applications

Flow meter signal conditioning (frequency to 4-20mA)
Speed monitoring and tachometer signal processing
Signal isolation and conversion in DCS/PLC analog input systems
