VIB 61 Vibrating Level Switch For Granular Bulk Solids VEGA Instruments
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Voltage: | 12 ... 30 V DC | Type: | Barcode Scanner,barcode Scan Engine |
|---|---|---|---|
| Scan Element Type: | CMOS,CCD,Laser,Reads Standard 1D And GS1 DataBar Symbologies.,CIS | ||
| Highlight: | VIB 61 vibrating level switch,IP66 vibrating level switch,IP67 VEGA Instruments |
||

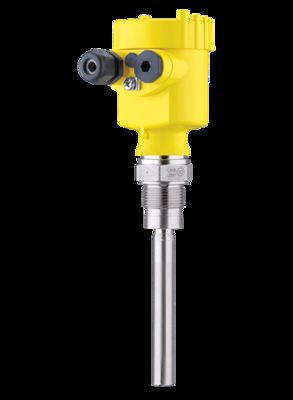

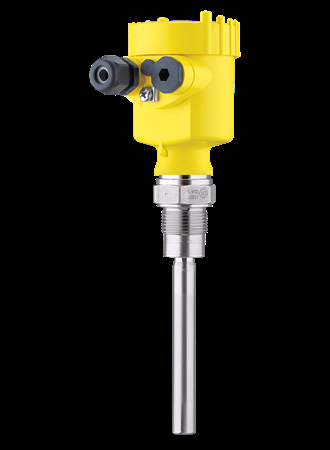

VEGAVIB 61 Vibrating level switch for granular bulk solids
VEGA is a German manufacturer of industrial measurement instruments, founded in 1959 and based in Schiltach. Specializing in level, pressure, and density measurement technologies, its products include radar sensors, ultrasonic transmitters, and pressure transmitters. Serving industries such as chemical, pharmaceutical, food, and water treatment, VEGA operates globally with subsidiaries in over 80 countries. Known for its plics® modular platform, the company emphasizes innovation, precision, and reliability in harsh industrial environments.
Product Overview
The VEGAVIB 61 is a robust vibrating level switch designed for reliable point level detection of free-flowing powders, granulates, and coarse-grained solids. Utilizing a proven vibrating rod principle, this sensor provides accurate and maintenance-free operation for both high and low level applications in various industrial processes. Its optimized rod design prevents product buildup and jamming, making it ideal for demanding industrial environments.
Key Features
-
No Product Buildup - Optimized rod design prevents material accumulation and jamming
-
Easy Setup - No calibration or adjustment required during installation
-
Maintenance-Free - No moving parts ensures long-term reliability
-
Product-Independent Switching - Consistent performance regardless of material characteristics
-
Easy Cleaning - Smooth surface allows for simple cleaning procedures
-
Visual Status Indicators - Two-color LED for clear status monitoring
-
Wide Application Range - Suitable for various bulk solid materials
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
VEGAVIB 61 |
|
Measurement Principle |
Vibrating rod with piezoelectric drive |
|
Application |
Granulates and coarse-grained solids |
|
Minimum Density |
≥100 g/L (20 g/L for extended versions) |
|
Process Temperature |
-50°C to +150°C (up to +250°C for some versions) |
|
Process Pressure |
-1 to 16 bar |
|
Housing Material |
Plastic PBT |
|
Wetted Parts |
316L stainless steel |
|
Protection Rating |
IP66/IP67 |
|
Output Options |
Transistor (NPN/PNP), Relay (DPDT) |
|
Supply Voltage |
10-55V DC (transistor), 20-253V AC/20-72V DC (relay) |
|
Power Consumption |
Max. 0.5W (transistor), 1-8VA AC/1.3W DC (relay) |
|
Approvals |
ATEX, IECEx, FM, CSA, SIL 2 |
Measurement Principle
The VEGAVIB 61 operates on a vibrating rod principle where a piezoelectric crystal energizes the vibrating rod at a fixed amplitude. When the rod becomes covered by product, the amplitude change is detected by integrated electronics and converted into a switch signal. The switching condition is clearly visible via a two-color LED indicator, providing immediate visual feedback without requiring special adjustments.
Applications
The VEGAVIB 61 is ideal for:
-
Silo Level Monitoring - High and low level detection in storage silos
-
Hopper Level Control - Reliable level detection in processing hoppers
-
Food Industry - Level detection for foodstuffs and perishable materials
-
Plastic Processing - Granulate level monitoring in production facilities
-
Chemical Industry - Powder and granulate level detection
-
Pharmaceutical | Level monitoring of pharmaceutical products
-
Bulk Material Handling | Reliable detection in material handling systems
Design & Construction
-
Robust Housing - Plastic PBT housing for durability and corrosion resistance
-
Wetted Parts - 316L stainless steel for excellent chemical resistance
-
Smooth Surface | Optimized rod design prevents product buildup and ensures easy cleaning
-
Multiple Process Connections - Threaded connections from G1, 1 NPT, and flange options from DN32, 1½"
Certifications & Compliance
-
Safety Certifications | ATEX II 1/3D IP6X T
-
Functional Safety | SIL 2 according to IEC 61508
-
International Approvals | IECEx, FM, CSA, EAC (GOST)
-
Quality Standards | Manufactured under ISO quality standards
-
Environmental Compliance | RoHS and REACH compliant
Why Choose VEGAVIB 61?
-
Reliable Performance - Product-independent switching point ensures consistent operation
-
Easy Installation - Simple setup without calibration or adjustment
-
Low Maintenance | No moving parts and smooth surface reduce maintenance needs
-
Wide Compatibility | Suitable for various bulk materials from 100 g/L density
-
Global Approvals | International certifications for worldwide use
-
Visual Feedback | Clear LED indicators for immediate status monitoring
Installation & Maintenance
-
Mounting | Various process connections including threaded and flange options
-
Electrical Connection | Multiple output options (transistor or relay)
-
Configuration | No calibration required, ready for immediate use
-
Cleaning | Smooth surface allows for easy cleaning without disassembly
-
Inspection | Periodic visual inspection recommended for optimal performance
Note: Specifications are based on standard configurations. Actual performance may vary based on specific application conditions and material properties. Consult VEGA technical documentation for detailed application guidelines.
