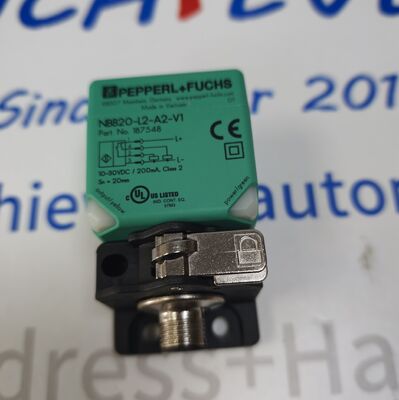

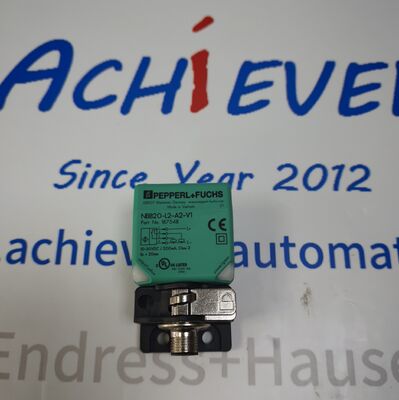

P+F NBB20-L2-A2-V1 | 40x40mm Inductive Sensor 20mm Flush, PNP 4-wire, M12 Plug
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power Supply: | 1 | Ambient Temperature: | - |
|---|---|---|---|
| Electrical Rating: | G | Certifications: | S |
| Highlight: | 40x40mm inductive sensor 20mm flush,PNP 4-wire inductive proximity sensor,M12 plug inductive sensor with warranty |
||
P+F NBB20-L2-A2-V1 | 40x40mm Inductive Sensor 20mm Flush, PNP 4-wire, M12 Plug
P+F NBB20-L2-A2-V1 square inductive sensor with 20 mm flush range, 4-wire PNP complementary output, rotatable head, and 360° 4-LED indicator. IP68/IP69K, -25...+85°C.
Product Overview
The P+F NBB20-L2-A2-V1 is a square inductive proximity sensor from the Basic Series, engineered for reliable non-contact detection of metallic targets in demanding industrial environments. It features a large 20 mm rated operating distance with flush mounting capability. A key differentiator is its bidirectional and rotatable sensor head, which allows flexible installation and alignment even in confined spaces. The device provides a 4-wire PNP complementary output (one normally open + one normally closed) via a detachable M12 connector and offers exceptional visibility with a 4-way LED indicator for 360° status monitoring.
Technical Specifications (Electrical & Sensing)
|
Parameter
|
Specification
|
|---|---|
|
General Specifications
|
|
|
Sensor Type
|
Inductive Proximity Sensor (Square Housing)
|
|
Detection Principle
|
Electromagnetic Induction
|
|
Rated Operating Distance (sn)
|
20 mm
|
|
Assured Operating Distance (sa)
|
0 ... 16.2 mm
|
|
Reduction Factor (Aluminum)
|
0.33
|
|
Output & Connection
|
|
|
Switching Function
|
Complementary (1 NO + 1 NC)
|
|
Output Type
|
PNP, 4-wire DC
|
|
Operating Voltage (UB)
|
10 ... 30 V DC
|
|
Switching Frequency (f)
|
0 ... 440 Hz
|
|
Operating Current (IL)
|
0 ... 200 mA
|
|
Voltage Drop (Ud)
|
≤ 2 V
|
|
Time Delay Before Availability (tv)
|
80 ms
|
Technical Specifications (Mechanical & Environmental)
|
Parameter
|
Specification
|
|---|---|
|
Mechanical Specifications
|
|
|
Housing Material
|
PA (Polyamide)
|
|
Dimensions (H × W × L)
|
40 × 40 × 67 mm
|
|

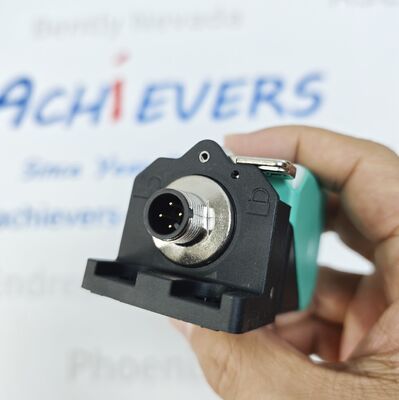

Connection Type
|
Plug-in connector, M12 x 1, 4-pin
|
|
Mounting
|
Flush with metal surface
|
|
Environmental & Reliability
|
|
|
Degree of Protection
|
IP68 / IP69K
|
|
Ambient Temperature
|
-25 ... +85 °C
|
|
Storage Temperature
|
-40 ... +85 °C
|
|
MTTFd (Mean Time to Dangerous Failure)
|
1289 years
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Mission Time (TM)
|
20 years
|
Key Features
-
Rotatable Sensor Head: The sensing face can be rotated and installed bidirectionally, simplifying mounting and alignment with the target.
-
Complementary Outputs: Provides both normally open and normally closed signals simultaneously from a single 4-wire device, reducing the need for duplicate sensors.
-
360° Visibility Indicator: Equipped with 4 LEDs around the housing, providing clear operational status from any viewing angle.
-
High Robustness: Features IP68 and IP69K ratings, making it highly resistant to dust, temporary submersion, and aggressive high-pressure washdowns.
-
Extended Temperature Range: Operates reliably in ambient temperatures ranging from -25°C to +85°C.
Typical Applications
-
Material Handling: Detecting the presence of large metallic pallets, containers, or structured profiles on conveyor belts.
-
Automotive Manufacturing: Precise positioning and presence detection of vehicle bodies and large mechanical components on assembly lines.
-
Heavy Machinery & Robotics: End-of-travel limit switches for large industrial robots and automated production equipment.
