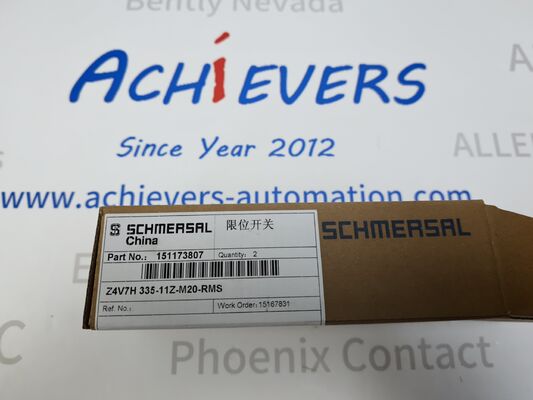

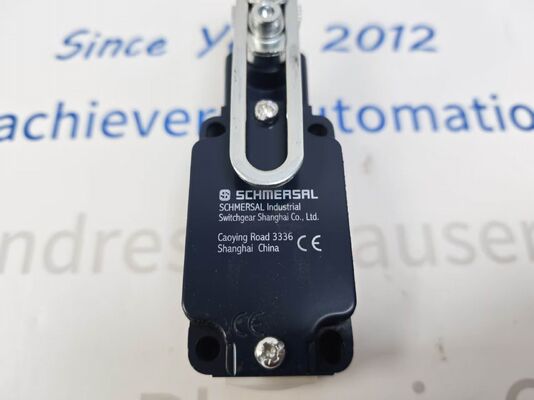

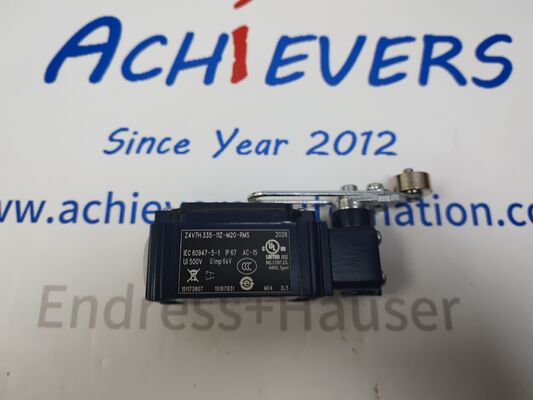

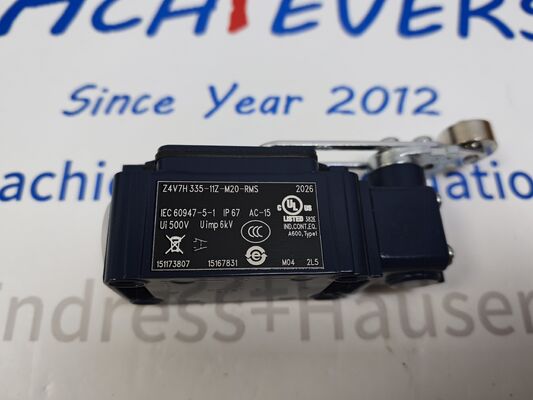

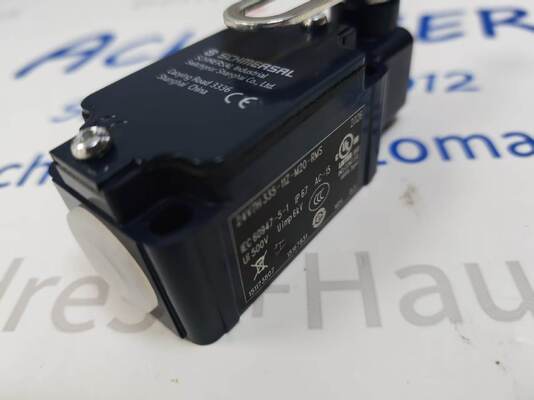

Schmersal Z4V7H 335-11Z-M20-RMS | Metal Limit Switch, 1NO+1NC, Brass Roller Lever, M20×1.5, IP65/IP67
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power Supply: | 1 | Ambient Temperature: | - |
|---|---|---|---|
| Electrical Rating: | G | Certifications: | S |
| Highlight: | Schmersal Z4V7H metal limit switch,limit switch with brass roller lever,IP65 IP67 rated limit switch |
||
Schmersal Z4V7H 335-11Z-M20-RMS | Metal Limit Switch, 1NO+1NC, Brass Roller Lever, M20×1.5, IP65/IP67
Schmersal Z4V7H 335-11Z-M20-RMS position/limit switch — metal housing, brass roller lever, 1NO+1NC snap-action contacts, AC-15 230V/4A, screw terminals M20×1.5, IP65/IP67, -30…+80°C. For machine position monitoring.
Product Overview
The Schmersal Z4V7H 335-11Z-M20-RMS is a heavy-duty electromechanical position/limit switch with a roller lever actuator (brass roller), designed for accurate position monitoring in demanding industrial environments. It features a light-alloy die-cast metal enclosure built to EN 50041 standard dimensions, a snap-action switching element with 1 normally-open (NO) + 1 normally-closed (NC) contact, and M20 × 1.5 screw terminals for secure wiring. The actuator head can be repositioned in 4 × 90° steps for flexible mounting orientation. With IP65/IP67 protection, 30 million mechanical operations service life, and oil/petroleum resistance, it is suited for conveyors, machine tools, and material handling equipment where reliable mechanical actuation is required. Complies with EN 60947-5-1, EN ISO 13849-1, and BG-GS-ET-15; approved CCC, cULus.
Technical Specifications (Electrical & Switching)
|
Parameter
|
Specification
|
|---|---|
|
Order Number
|
Z4V7H 335-11Z-M20-RMS (Schmersal Item No. 151173807)
|
|
Switching Element
|
1 NO + 1 NC, snap-action (constant contact pressure up to switching point)
|
|
Utilization Category AC-15
|
230 V AC / 4 A
|
|
Utilization Category DC-13
|
24 V DC / 4 A
|
|
Thermal Test Current (Ith)
|
10 A
|
|
Rated Short-Circuit Current
|
1,000 A (conditional)
|
|
Rated Insulation Voltage (Ui)
|
500 V
|
|
Rated Impulse Withstand (Uimp)
|
6 kV
|
|
Contact Material
|
Silver
|
|
Switching Frequency (Max.)
|
5,000 operations/h
|
|
Switchover Time (Max.)
|
2 ms
|
|
Number of Safety Contacts
|
1 (per EN ISO 13849-1, mission time 20 years)
|
Technical Specifications (Mechanical & Environmental)
|
Parameter
|
Specification
|
|---|---|
|
Actuating Element
|
Roller lever with brass roller
|
|
Mechanical Life (Min.)
|
30,000,000 operations
|
|
Max. Actuating Speed
|
2.5 m/s (at 30° approach angle to switch axis)
|
|
Min. Actuating Torque
|
0.3 Nm
|
|
Housing Material
|
Light-alloy die-casting, painted
|
|
Cable Entry / Terminals
|
Screw terminals, M20 × 1.5
|
|
Conductor Cross-Section
|
0.75 … 2.5 mm² (including ferrules)
|
|
Dimensions (L × W × H)
|
57.3 × 40.5 × 173.5 mm
|
|
Weight
|
300 g
|
|
Degree of Protection
|
IP65 / IP67 per EN 60529
|
|
Ambient Temperature
|
-30 … +80 °C
|
|
Actuator Head Rotation
|
Repositionable in 4 × 90° steps (for positioning tasks)
|
|
Approvals
|
CCC, cULus
|
|
Conformance
|
EN 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
|
Key Features
-
Rugged Metal Housing (EN 50041): Light-alloy die-cast enclosure with standard dimensions — drop-in replacement for legacy EN 50041 limit switches; resists shock, vibration, oil, and petroleum.
-
Brass Roller Lever Actuator: Smooth, low-friction actuation with minimal wear — ideal for high-cycle cam or rail-driven applications.
-
Snap-Action 1NO+1NC Contacts: Constant contact pressure up to the switching point ensures reliable switching even at slow actuation speeds; simultaneous NO/NC signaling for position + safety feedback.
-
M20 × 1.5 Screw Terminals: Secure industrial-grade wiring with broad conductor range (0.75–2.5 mm²).
-
IP65/IP67 & Extended Temperature: Sealed against dust and water jets/temporary immersion; operates from -30 °C to +80 °C — suitable for indoor and sheltered outdoor installations.
Typical Applications
-
Conveyor & Material Handling: End-of-travel limits, diverter arm position feedback, belt alignment monitoring.
-
Machine Tools: Slide/home position detection, guard interlock feedback, tool carriage limits.
-
Packaging & Processing Machinery: Cam-follower actuation for rotary indexing, flap/gate position verification.
-
Heavy Engineering: Crane travel limits, hoist overtravel, and mechanical interlock duties where rugged metal enclosure is required.
