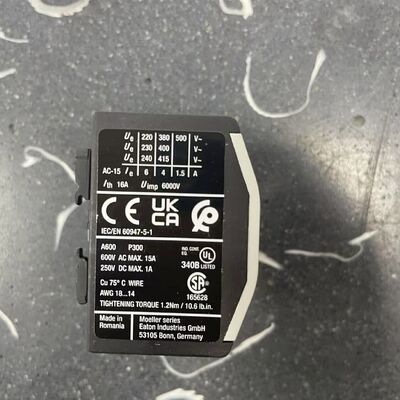

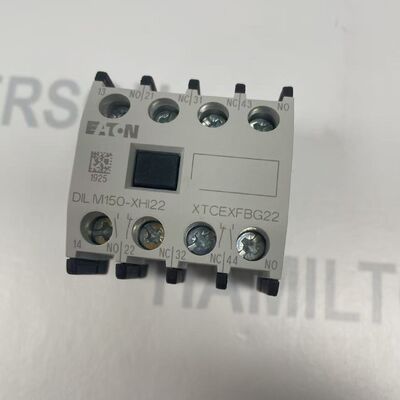

Eaton DILA-XHI22 | High Performance MPCB, 22A, 3-Pole, 690V AC, IEC/UL

Eaton DILA-XHI22 | High Performance MPCB, 22A, 3-Pole, 690V AC, IEC/UL
Eaton DILA-XHI22 | High Performance MPCB, 22A, 3-Pole, 690V AC, IEC/UL
video play

Large Image :  Eaton DILA-XHI22 | High Performance MPCB, 22A, 3-Pole, 690V AC, IEC/UL Get Best Price

Product Details:
Place of Origin: RO
Brand Name: Eaton
Certification: ATEX
Model Number: DILA-XHI22
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 12-30 V DC (Two-wire) Ambient Temperature: -40°C To 80°C (-40°F To 176°F)
Electrical Rating: General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification) Certifications: Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)
Highlight:

Eaton MPCB 22A high performance

,

3-pole circuit breaker 690V AC

,

IEC UL certified MPCB

Eaton DILA-XHI22 | High Performance MPCB, 22A, 3-Pole, 690V AC, IEC/UL

Eaton DILA-XHI22 motor protector specifications. 22A rated current, 3-pole, 690V AC, high breaking capacity, adjustable overload. MPCB for motor protection.

Product Overview

The Eaton DILA-XHI22 is a high-performance Motor Protection Circuit Breaker (MPCB) from the advanced DILA XHI Series. It provides integrated overload and short-circuit protection for three-phase motors. The "XHI22" designation indicates a 22A rated current with enhanced performance features. It is designed for demanding industrial applications requiring reliable motor protection, switching capability, and high breaking capacity.

Technical Specifications

Parameter

Specification

Manufacturer​

Eaton (formerly Moeller)

Series​

DILA XHI Series

Type​

DILA-XHI22

Product Type​

Motor Protection Circuit Breaker (MPCB)

Number of Poles​

3-Pole

Rated Operational Current (Iu)​

22 A

Rated Insulation Voltage (Ui)​

1000 V AC

Rated Operational Voltage (Ue)​

690 V AC

Rated Ultimate Breaking Capacity (Icu)​

100 kA at 400V AC

Service Breaking Capacity (Ics)​

100% Icu

Tripping Characteristic​

Adjustable (Thermal-Magnetic)

Overload Protection​

Adjustable (via rotary dial)

Mounting​

DIN Rail 35mm

Electrical Life​

25,000 operations

Mechanical Life​

30,000 operations

Protection Degree​

IP20

Standards​

IEC/EN 60947-1, 60947-2, 60947-4-1, UL 60947-4-1

Key Features

  • High Breaking Capacity:​ 100kA at 400V AC for reliable fault interruption

  • Advanced Motor Protection:​ Integrated adjustable thermal and magnetic protection

  • Manual Switching:​ Rotary handle for ON/OFF control and isolation

  • Trip-Free Mechanism:​ Ensures contacts open during fault conditions

  • High Voltage Rating:​ Suitable for systems up to 690V AC

  • Visual Status Indication:​ Clear ON/OFF/tripped position display

  • Auxiliary Contact Capable:​ Can be equipped with add-on contact blocks

  • Compact Design:​ Saves panel space in control enclosures

  • DIN Rail Mounting:​ Easy installation on standard 35mm DIN rail

  • Long Electrical Life:​ 25,000 electrical operations for durability

Applications

  • Protection of three-phase AC motors

  • Motor control centers (MCCs)

  • Pump, fan, and compressor motor protection

  • Conveyor and material handling systems

  • Industrial machinery and machine tools

  • HVAC and refrigeration systems

Important Notes

  1. Select based on motor full load current (FLC) and starting characteristics

  2. Thermal setting should be adjusted to match motor FLC

  3. Magnetic trip setting should accommodate motor starting current

  4. Can be used as a manual motor isolator

  5. Installation must comply with local electrical codes and standards
