Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL

Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL
Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL
video play

Large Image :  Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Eaton
Certification: ATEX
Model Number: PKZM4-40
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 12-30 V DC (Two-wire) Ambient Temperature: -40°C To 80°C (-40°F To 176°F)
Electrical Rating: General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification) Certifications: Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)
Highlight:

Eaton PKZM4-40 motor protector

,

40A 3-pole motor protector

,

IEC UL compliant motor protector

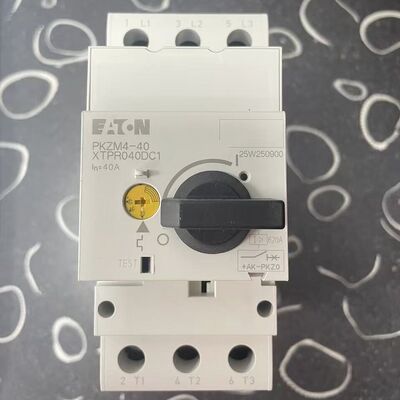

Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL

Eaton PKZM4-40 MPCB specifications. 40A rated current, 3-pole, 100kA breaking capacity, adjustable overload, motor protection circuit breaker.

Product Overview

The Eaton PKZM4-40 is a high-performance Motor Protection Circuit Breaker (MPCB) designed for reliable protection and switching of three-phase motors. Part of the Moeller (now Eaton) PKZ series, it combines the functions of a circuit breaker, overload relay, and short-circuit protector. The "40" indicates a 40A rated current with a high 100kA breaking capacity, offering adjustable overload and short-circuit protection.

Technical Specifications

Parameter

Specification

Manufacturer​

Eaton (formerly Moeller)

Series​

PKZ Series (Motor Protection Circuit Breaker)

Type​

PKZM4-40

Product Type​

Motor Protection Circuit Breaker (MPCB)

Number of Poles​

3-Pole

Rated Operational Current (Iu)​

40 A

Rated Insulation Voltage (Ui)​

690 V AC

Rated Operational Voltage (Ue)​

400/415V AC, 500V AC, 690V AC

Rated Ultimate Breaking Capacity (Icu)​

100 kA at 400V AC

Trip Class​

Class 10 (Overload), 3-pole magnetic (Short-circuit)

Overload Protection Range​

Adjustable (via dial)

Short-Circuit Protection​

Fixed magnetic trip (12 x In typical)

Mounting​

DIN Rail 35mm

Electrical Life​

Up to 20,000 operations

Protection Degree​

IP20

Standards​

IEC/EN 60947-1, 60947-2, 60947-4-1

Key Features

  • High Breaking Capacity:​ 100kA at 400V AC for reliable short-circuit protection

  • Integrated Motor Protection:​ Combines overload, short-circuit, and isolation functions

  • Manual Switching:​ Rotary handle for ON/OFF control and motor isolation

  • Adjustable Overload:​ Thermal trip setting dial for precise motor matching

  • Trip-Free Mechanism:​ Contacts cannot be held closed during a fault

  • DIN Rail Mounting:​ Easy installation on standard 35mm DIN rail

  • Visual Indication:​ Clear ON/OFF/tripped position display

  • Motor Isolation:​ Suitable for use as a manual motor isolator switch

  • Accessory Compatibility:​ Supports auxiliary contacts, shunt trips, and undervoltage releases

Applications

  • Protection of three-phase AC motors up to 40A

  • Pump, fan, and compressor motor circuits

  • Conveyor systems and material handling equipment

  • Machine tools and industrial machinery

  • HVAC and refrigeration system motors

  • Motor control centers (MCCs) and industrial control panels

Important Notes

  1. The thermal overload setting must be adjusted to the motor's full load current (FLC)

  2. The magnetic short-circuit trip is fixed and non-adjustable in this model

  3. For remote control, a separate contactor must be used downstream

  4. Can be used as the main disconnect and protector for a motor circuit

  5. Installation must comply with local electrical codes and standards

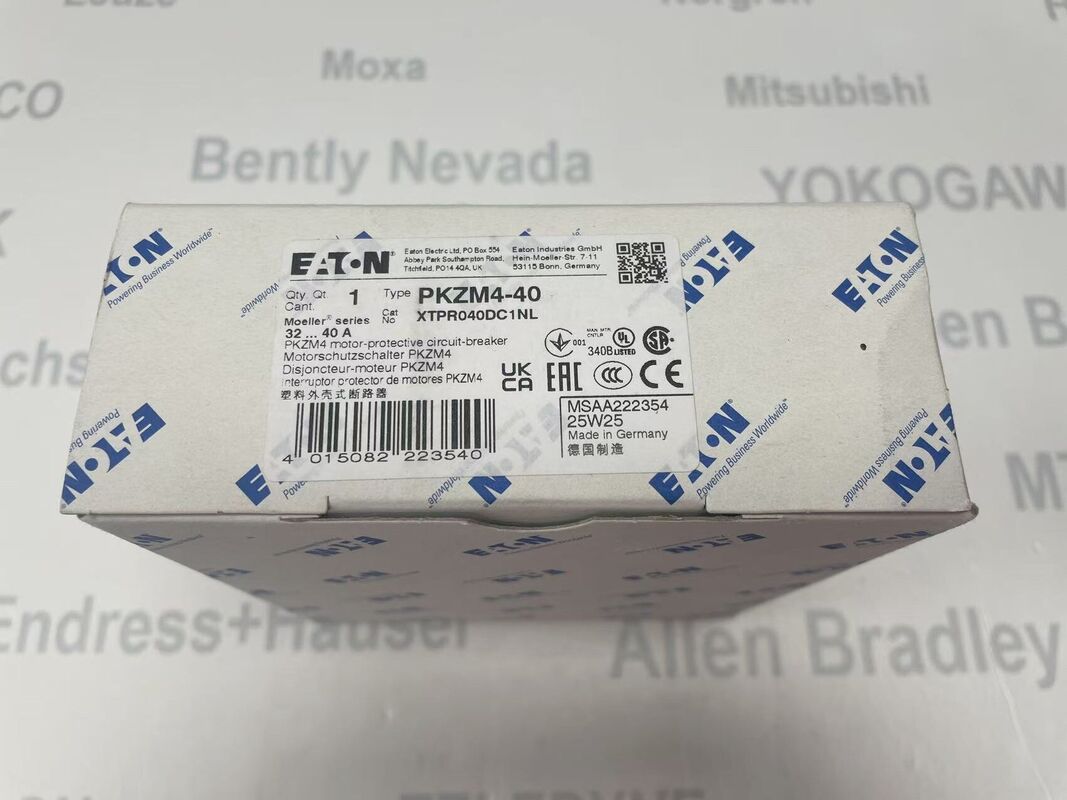

Eaton PKZM4-40 Motor Protector | 40A, 3-Pole, 100kA, IEC/UL 0
