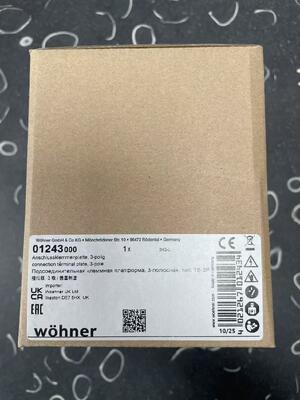

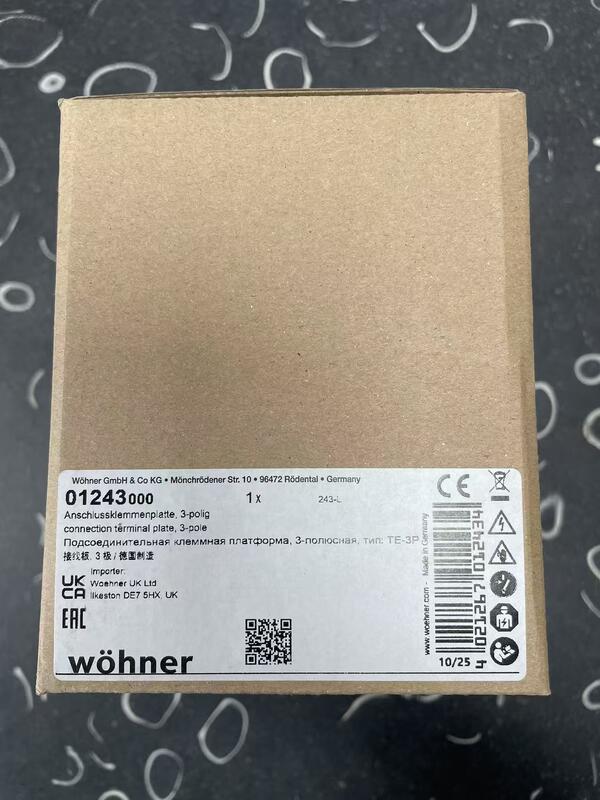

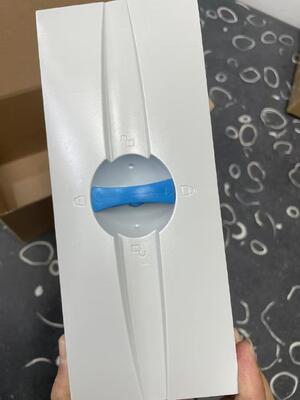

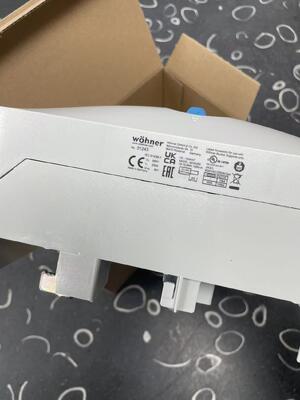

Wöhner 01243 Busbar Adapter | 185A, 690V, M8, for 40mm/60mm Systems

Large Image : Wöhner 01243 Busbar Adapter | 185A, 690V, M8, for 40mm/60mm Systems Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	Wöhner
Certification:	ATEX
Model Number:	01243
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Wöhner busbar adapter 185A

busbar adapter for 40mm 60mm systems

M8 busbar adapter 690V

Wöhner 01243 Busbar Adapter | 185A, 690V, M8, for 40mm/60mm Systems

Wöhner 01243 busbar adapter specifications. 185A rated, 690V AC/DC, M8 stud connection, for 40mm and 60mm busbar systems.

Product Overview

The Wöhner 01243 is a busbar adapter designed for the 40mm and 60mm busbar systems. It provides a flexible connection point for modular power distribution components, enabling the installation of circuit breakers, contactors, fuses, and other switchgear directly onto the busbar system without additional wiring. The adapter features an M8 threaded stud for secure connection.

Technical Specifications

Parameter	Specification
Manufacturer	Wöhner GmbH & Co. KG
Series	40mm / 60mm Busbar System
Model	01243
Article Number	01243
Product Type	Busbar Adapter
Rated Current (Ie)	185 A
Rated Voltage (Ue)	690 V AC / 750 V DC
Rated Impulse Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Connection Type	M8 threaded stud (brass, nickel-plated)
Busbar Compatibility	40 mm, 60 mm systems (12 x 5, 12 x 10, 20 x 10 mm)
Material	Polyamide (PA66) with metal contact
Flammability Class	UL94 V-0
Protection Class	IP20 (finger-safe)
Operating Temperature	-5 to 55 °C (23 to 131 °F)
Tightening Torque (M8 stud)	12 Nm
Certifications	CE, cULus, EAC

Key Features

Tool-Free Mounting: Snap-on installation directly onto 40mm or 60mm busbar systems
High Current Capacity: 185A continuous rating for demanding power distribution applications
Secure Connection: M8 threaded stud for reliable cable lug or component attachment
Compact Design: Space-saving footprint on the busbar
Finger-Safe Protection: IP20 touch protection for operator safety
** Broad Compatibility: Suitable for multiple busbar cross-sections
** Self-Extinguishing Housing: UL94 V-0 rated for fire safety
** Low Contact Resistance: Optimized contact geometry ensures minimal power loss

Applications

Modular power distribution in control panels and switchgear
Direct mounting of circuit breakers, switch disconnectors, and contactors
Industrial machinery and plant engineering
Power supply units and drive systems
Retrofit and expansion of existing busbar systems

Important Notes

This adapter is designed for use with Wöhner 40mm and 60mm busbar systems; verify busbar compatibility prior to installation.
The M8 threaded stud accepts standard cable lugs and ring terminals.
Installation requires no tools for the snap-on function; however, a torque wrench is recommended for the M8 connection.
Adheres to UL 1953 and IEC 61439-1/-6 standards.
For currents exceeding 185A, higher-rated adapters (e.g., 01248, 01249) are available.
