Product Overview

The FISHER DLC3100 is a digital level controller designed for tank and pump control applications. It utilizes non-contact ultrasonic technology to measure liquid or solid level and provides a 4-20mA analog output with HART digital communication. The controller includes configurable dual setpoint relays for high/low alarm or pump control functions, making it suitable for simple point-level monitoring and control.

Technical Specifications

Key Features

• Non-Contact Ultrasonic Measurement:​ Maintenance-free; no moving parts in contact with process

• Dual Setpoint Relays:​ Two fully configurable SPDT relays for control or alarm

• HART Communication:​ Remote configuration, calibration, and diagnostics via 4-20mA loop

• Loop Powered:​ Simple 2-wire connection; powered from 4-20mA loop

• Rugged IP66/NEMA 4X Enclosure:​ Suitable for outdoor and washdown environments

• Integrated Transducer:​ Compact, all-in-one design

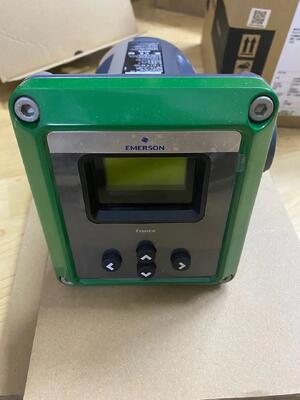

• Easy Configuration:​ Intuitive local interface with push buttons and LCD

• Wide Application Range:​ Suitable for liquids and solids (depending on material properties)

• Global Certifications:​ Approved for use in hazardous and non-hazardous areas

Applications

• Tank level monitoring and pump control

• Sump and wastewater lift station control

• Chemical storage tank level

• Solids level in silos and bins (non-dusty applications)

• Simple point level measurement and alarm

• OEM equipment integration

Important Notes

1. This is a non-contact ultrasonic​ device; performance can be affected by foam, heavy vapors, dust, or extreme turbulence.

2. The 4-20mA output is proportional to the measured level or distance.

3. Relay functions (high alarm, low alarm, pump lead/lag, etc.) are fully configurable via the local interface or HART communicator.

4. For hazardous area​ installations, verify the specific certification suffix on the device label (e.g., DLC3100***).

5. Proper mounting location​ is critical; avoid obstacles in the sound beam path and maintain minimum dead band distance.
