FISHER DLC3010 Level Controller | Ultrasonic, Single Point, 4-20mA+HART, Compact

FISHER DLC3010 Level Controller | Ultrasonic, Single Point, 4-20mA+HART, Compact

FISHER DLC3010 controller specifications. Ultrasonic level controller, 4-20mA+HART, single point, loop powered, pump control, alarm.

Product Overview

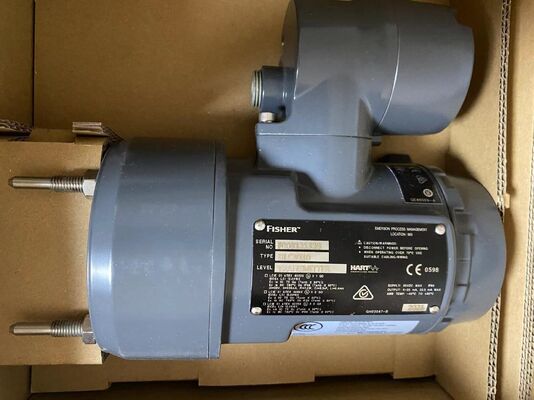

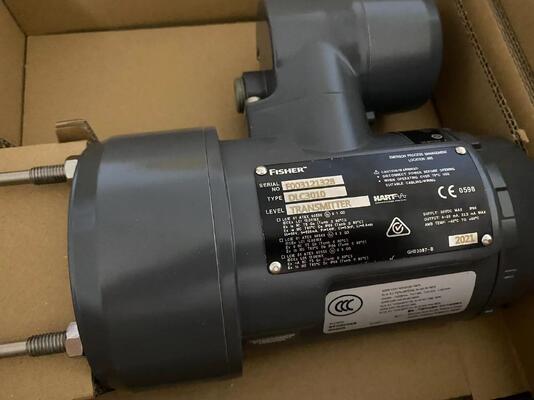

The FISHER DLC3010 is a digital level controller from the DLC3000 series, designed for simple point-level measurement and control. It uses ultrasonic technology for non-contact level detection and provides a 4-20mA output with HART digital communication. The unit includes a single relay output for pump control or alarm functions, making it a cost-effective solution for sump, tank, and basic pump control applications.

Technical Specifications

Key Features

• Non-Contact Ultrasonic:​ Maintenance-free measurement without moving parts

• Loop Powered:​ Simple 2-wire connection; powered from the 4-20mA loop

• HART Communication:​ Remote configuration, calibration, and diagnostics

• Single Relay Output:​ Configurable for basic pump control or alarm functions

• Compact Design:​ All-in-one sensor and transmitter housing

• IP66/NEMA 4X Enclosure:​ Suitable for harsh industrial environments

• Easy Local Interface:​ Setup and calibration via front push buttons and LCD

• Global Certifications:​ Approved for hazardous and non-hazardous areas

Applications

• Sump and wastewater pump control

• Tank level high/low alarm

• Simple point level measurement in liquids

• Chemical storage tank monitoring

• OEM equipment requiring compact level control

Important Notes

1. This is a non-contact ultrasonic device; performance can be affected by foam, vapor, or turbulence.

2. The 4-20mA output is proportional to the measured distance/level.

3. Relay function is configurable (e.g., pump on/off, high alarm, low alarm).

4. For hazardous area installations, verify the specific certification suffix on the device label.

5. Ensure proper mounting location to avoid obstructions in the sound path.
